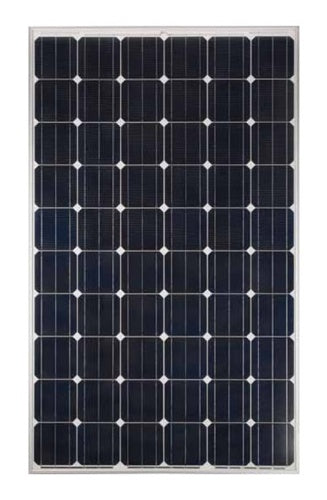

Yingli Solar 260W Monocrystalline Module YL260C-30b Lot of 16

*Lot of 16*

The Yingli Solar YL260C-30b is a high-efficiency 260-watt monocrystalline photovoltaic module designed for residential, commercial, and other grid-connected solar energy applications. Featuring 60 monocrystalline solar cells and durable aluminum-frame construction, this module provides reliable power generation and long-term outdoor performance.

With a module efficiency of approximately 15.9%, the YL260C-30b provides strong energy output from a compact 60-cell panel design. Its tempered-glass front surface and robust frame are engineered to withstand demanding environmental conditions and mechanical loads.

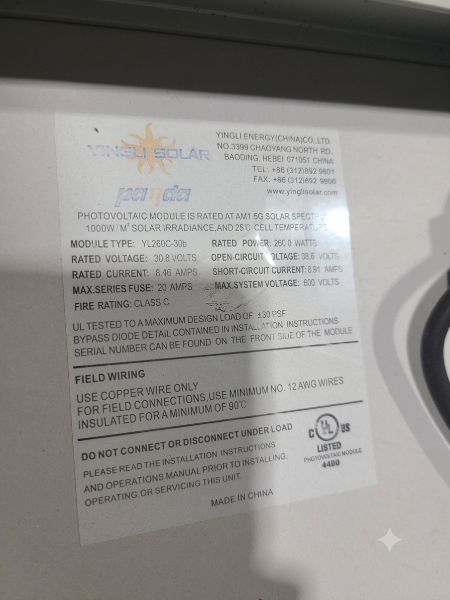

Specifications:

• Manufacturer: Yingli Solar
• Model: YL260C-30b
• Rated Maximum Power: 260W
• Cell Type: Monocrystalline Silicon
• Number of Cells: 60
• Module Efficiency: 15.9%
• Voltage at Maximum Power (Vmp): 30.8V
• Current at Maximum Power (Imp): 8.46A
• Open Circuit Voltage (Voc): 38.6V
• Short Circuit Current (Isc): 8.91A
• Maximum System Voltage: 1000V DC
• Maximum Series Fuse Rating: 20A
• PTC Rating: Approximately 239.7W
• Dimensions: Approximately 65" L × 39" W × 2" D
• Metric Dimensions: 1650 × 990 × 50 mm
• Weight: Approximately 43 lbs. (19.5 kg)
• Frame: Aluminum
• Connector Type: MC4-style compatible connector
• Installation Type: Rack Mounted
