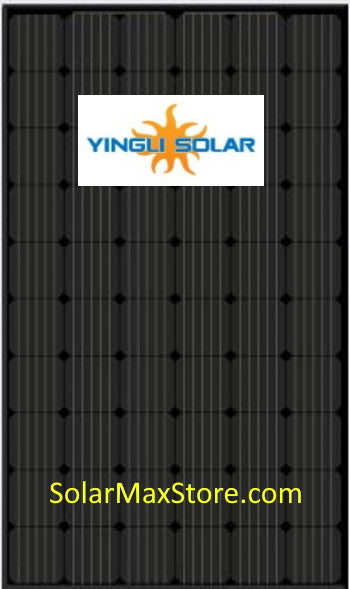

Yingli Solar YL320D-30b 320W Monocrystalline Solar Panel

The Yingli Solar YL320D-30b is a high-performance 320-watt monocrystalline photovoltaic solar panel designed for residential, commercial, and other solar energy applications. Featuring a compact 60-cell design, this module provides excellent power density and dependable energy production for rooftop and ground-mounted PV systems.

Built for long-term outdoor operation, the YL320D-30b features durable tempered-glass construction, an anodized aluminum frame, and weather-resistant components designed to withstand demanding environmental conditions.

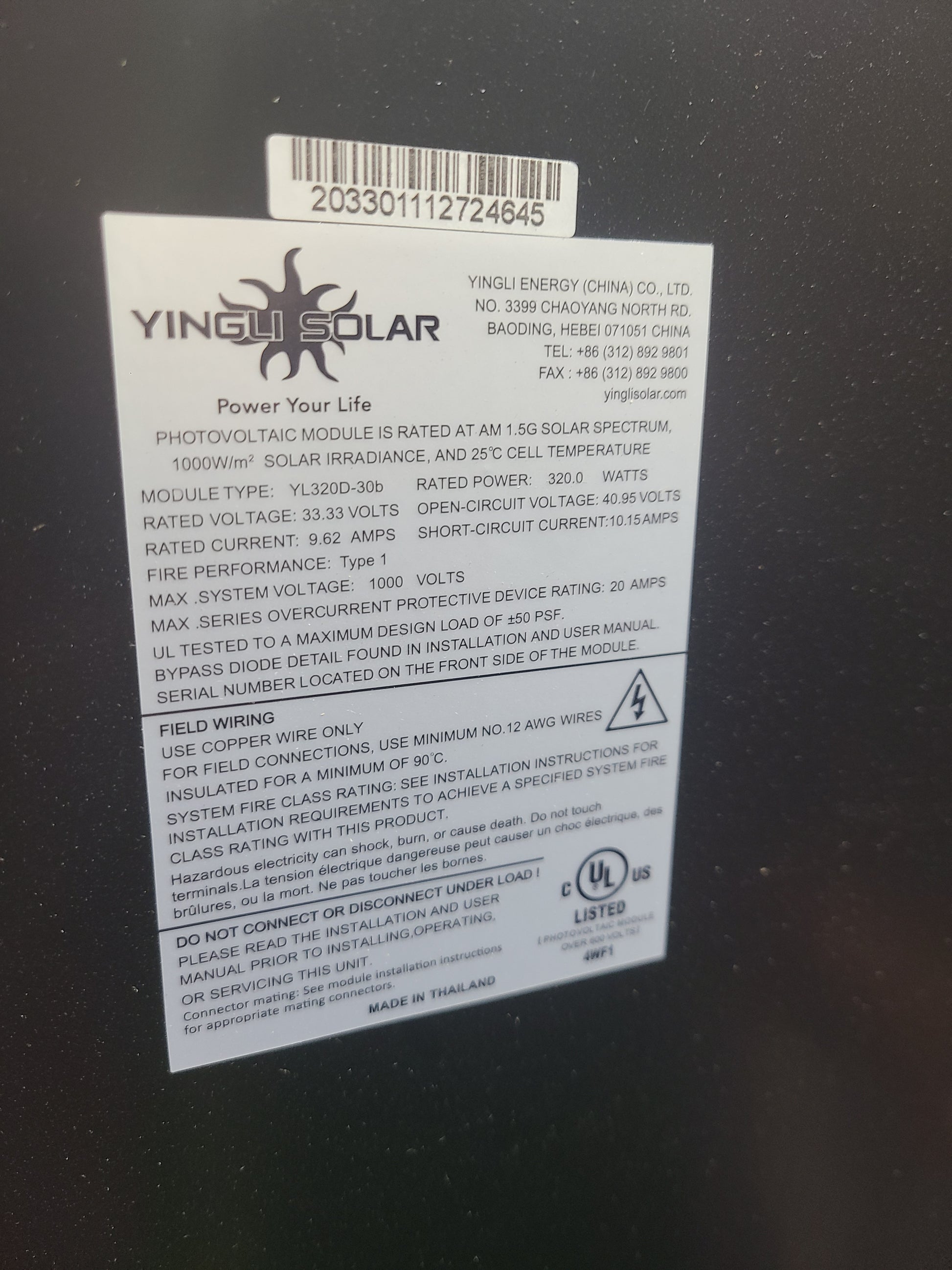

Specifications:

• Manufacturer: Yingli Solar
• Model: YL320D-30b
• Rated Maximum Power (Pmax): 320W
• Cell Type: Monocrystalline
• Number of Cells: 60
• Module Efficiency: Approximately 19.2%
• Maximum Power Voltage (Vmp): 33.83V
• Maximum Power Current (Imp): 9.46A
• Open Circuit Voltage (Voc): 40.55V
• Short Circuit Current (Isc): 9.97A
• Positive Power Tolerance: 0 to +1.5%
• Maximum System Voltage: Up to 1500V DC depending on version
• Dimensions: Approximately 65.6" × 39.4" × 1.38"
• Metric Dimensions: Approximately 1665 × 1002 × 35 mm
• Weight: Approximately 41.9 lbs. (19 kg)
• Operating Temperature: -40°C to +85°C
• Product Type: Photovoltaic Solar Module
