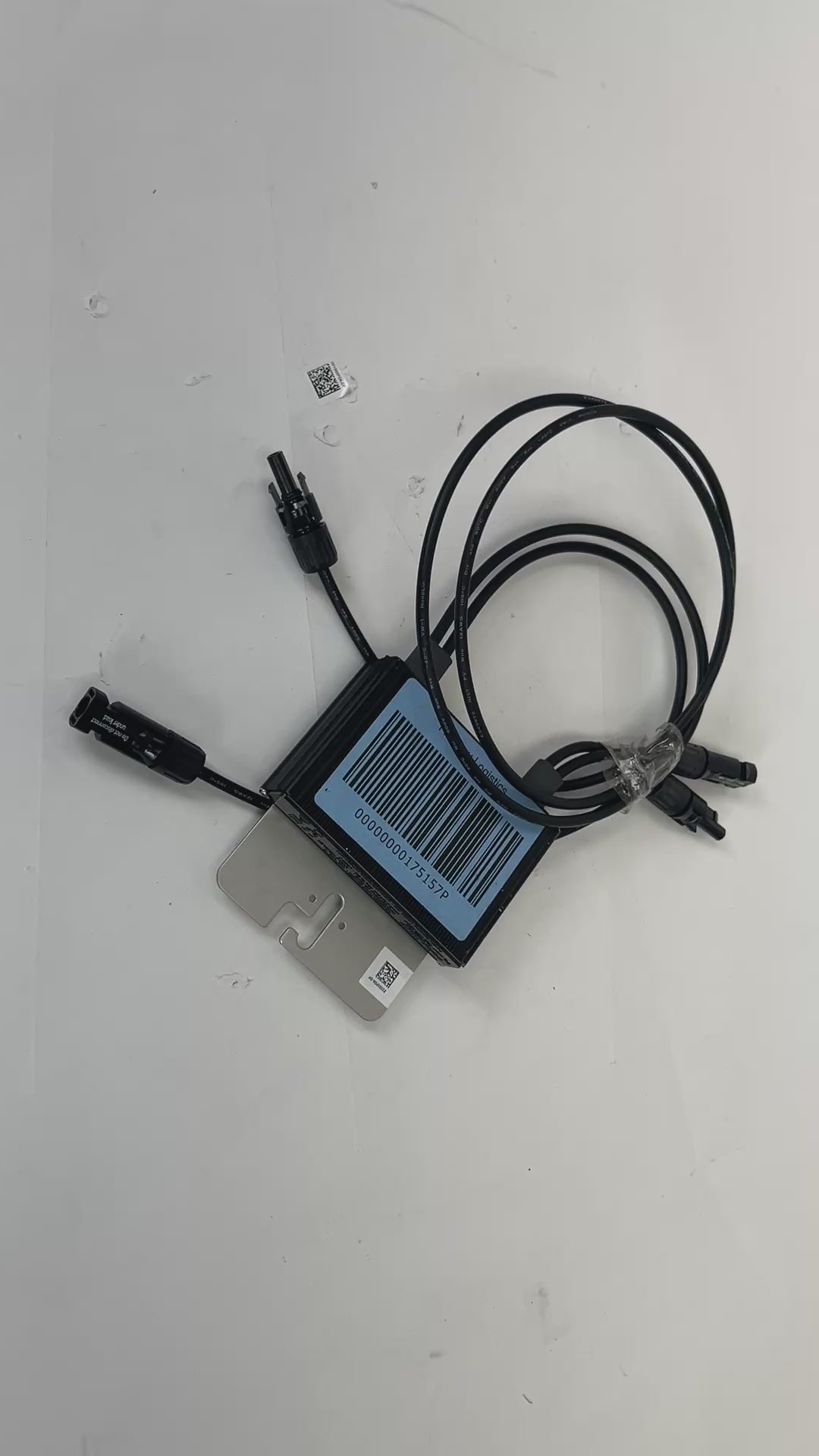

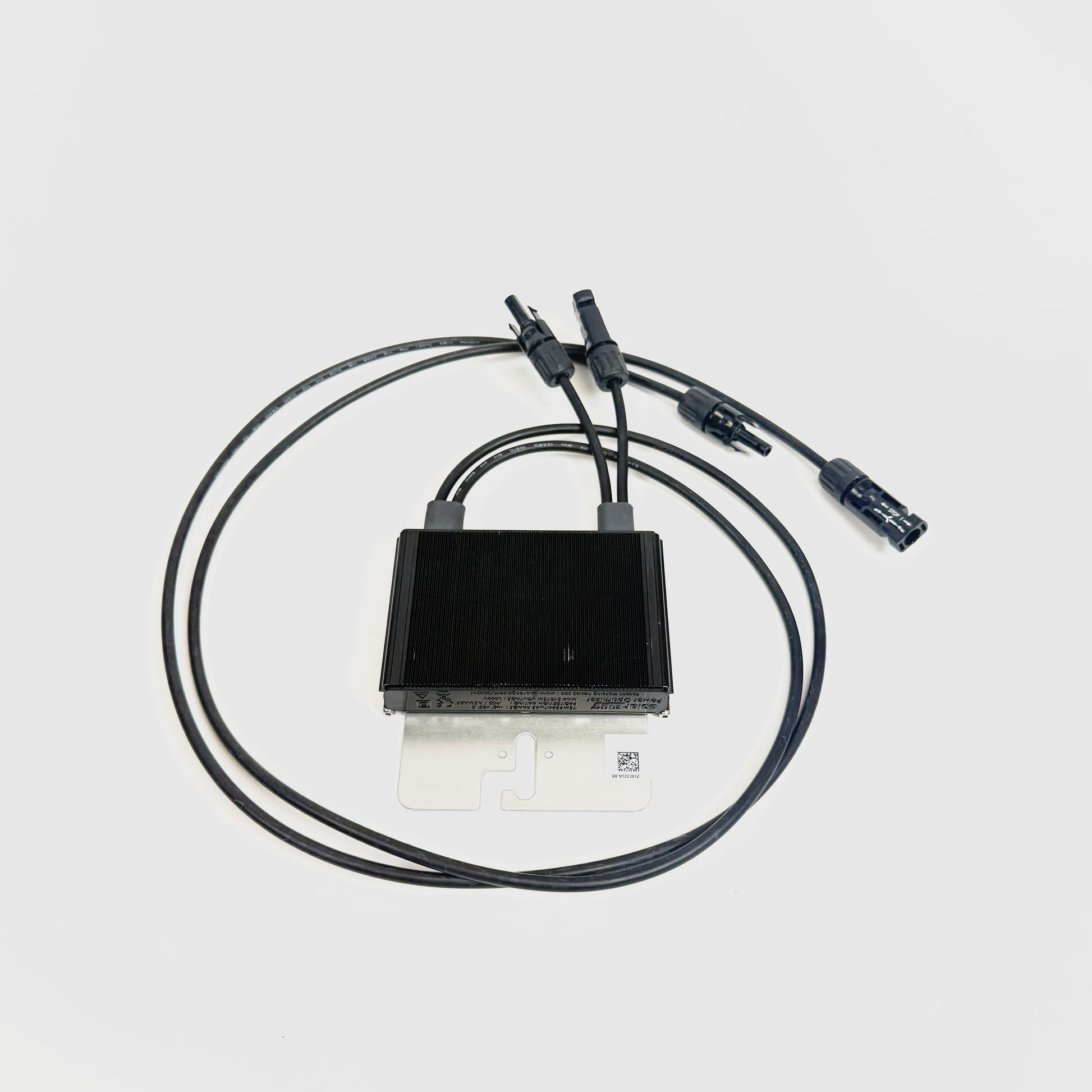

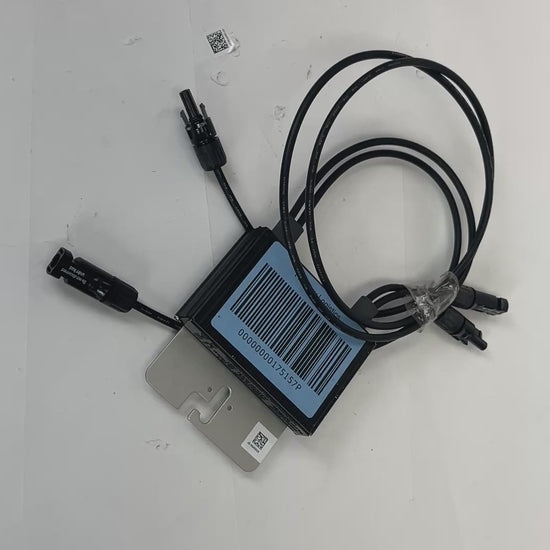

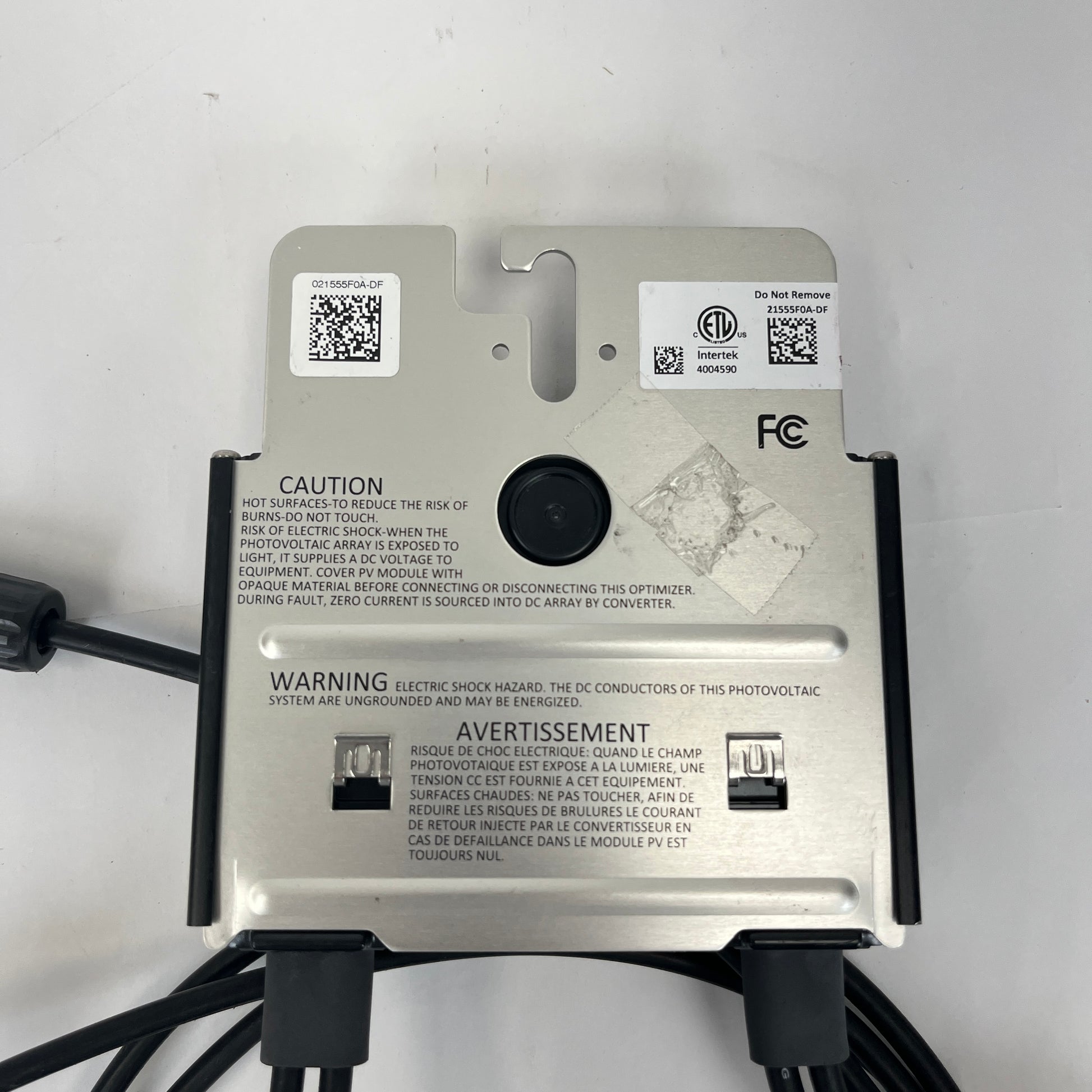

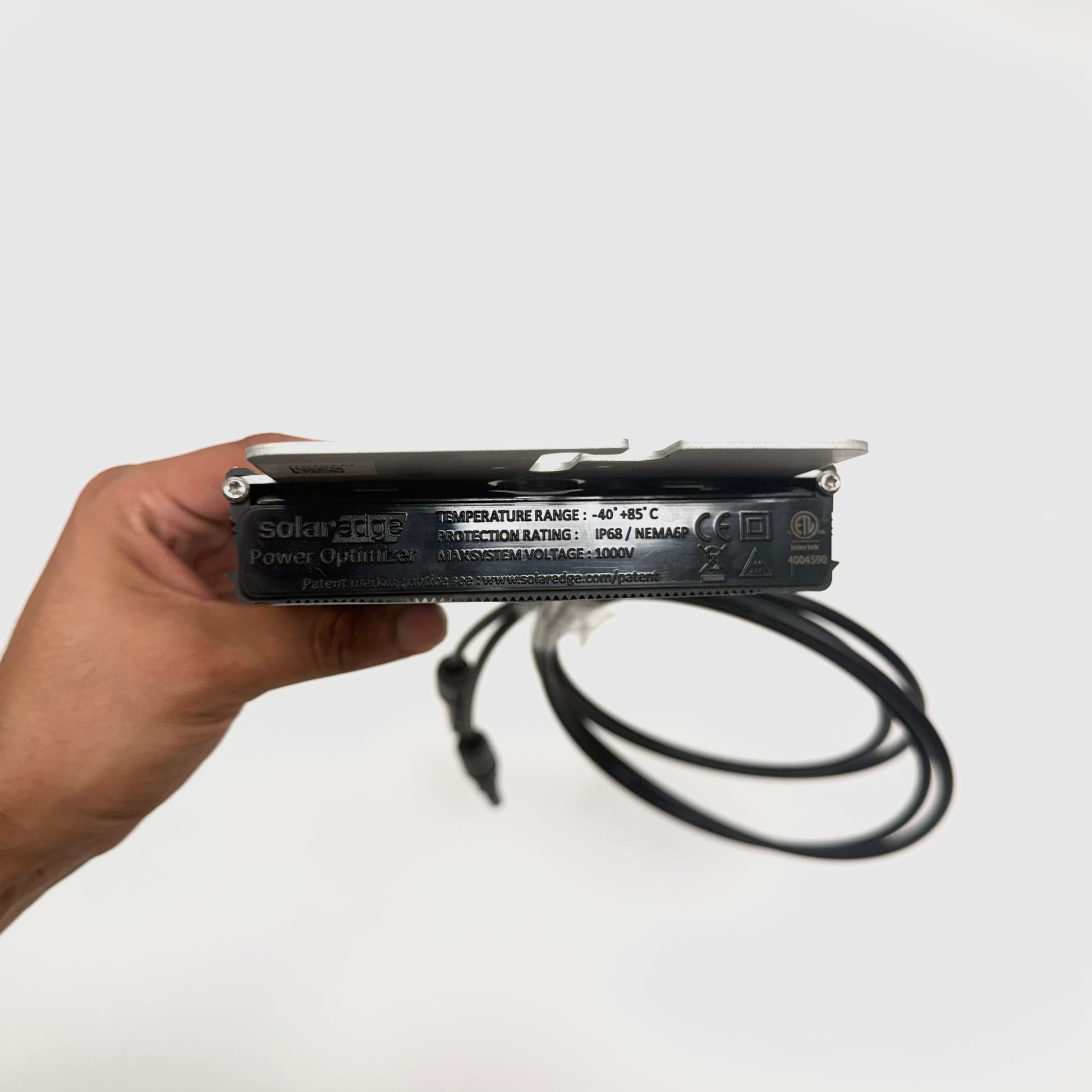

SolarEdge P370-5RM4MRM-NA30 370W Power Optimizer – North America

The SolarEdge P370 Power Optimizer is a module-level DC optimizer designed for use with compatible SolarEdge inverter systems. The P370 provides individual Maximum Power Point Tracking (MPPT) for each solar module, helping maximize energy production and reduce losses caused by shading, soiling, module mismatch, aging, and differences in panel orientation.

Specifications:

• Manufacturer: SolarEdge
• Model: P370

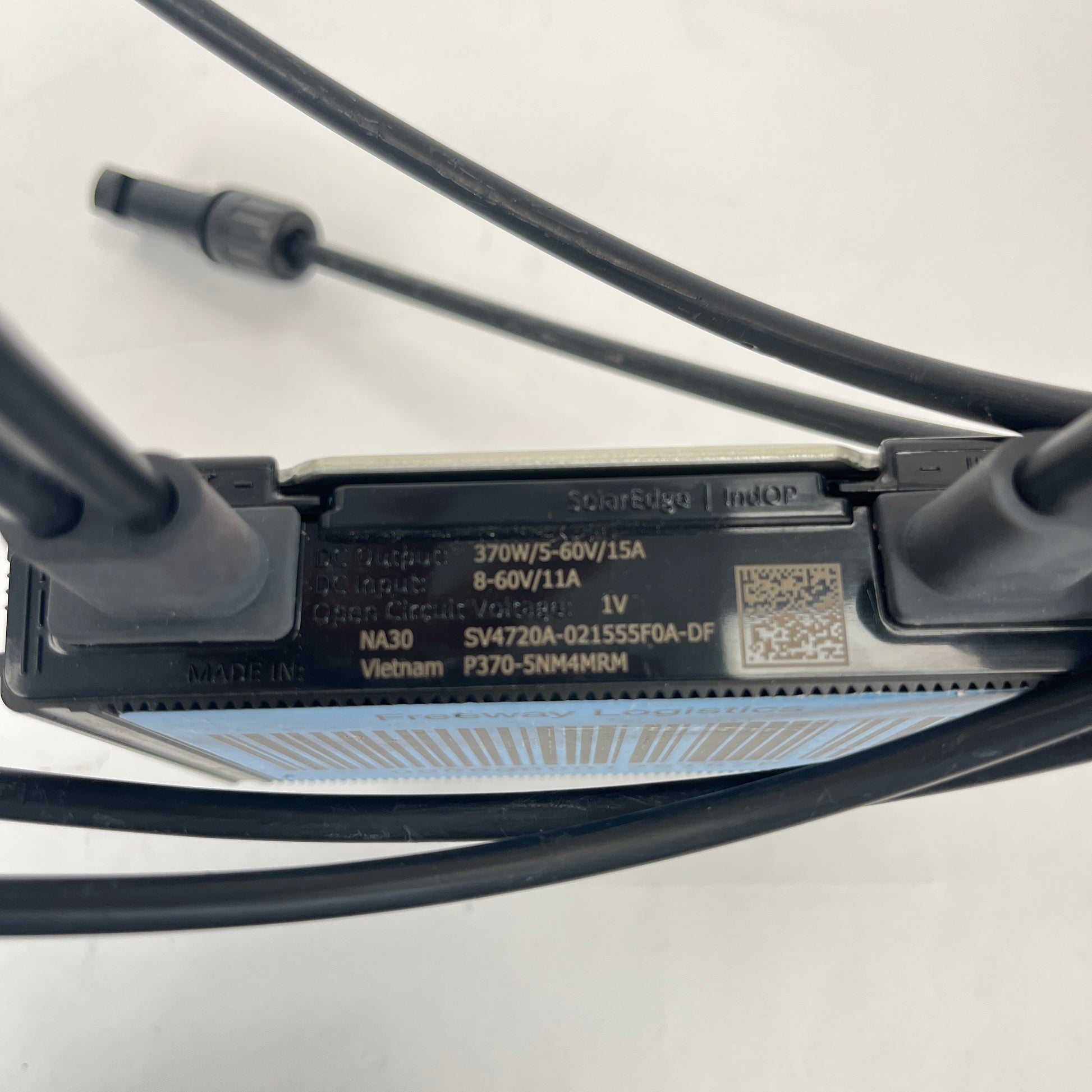

• Part Number: P370-5RM4MRM-NA30
• Rated Input Power: 370W
• Maximum Input Voltage: 60V DC
• MPPT Operating Range: 8–60V DC
• Maximum Short-Circuit Current (Isc): 11A
• Maximum Output Current: 15A DC
• Maximum Output Voltage: 60V DC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Safety Output Voltage: 1V DC per optimizer
• Maximum System Voltage: 1000V DC

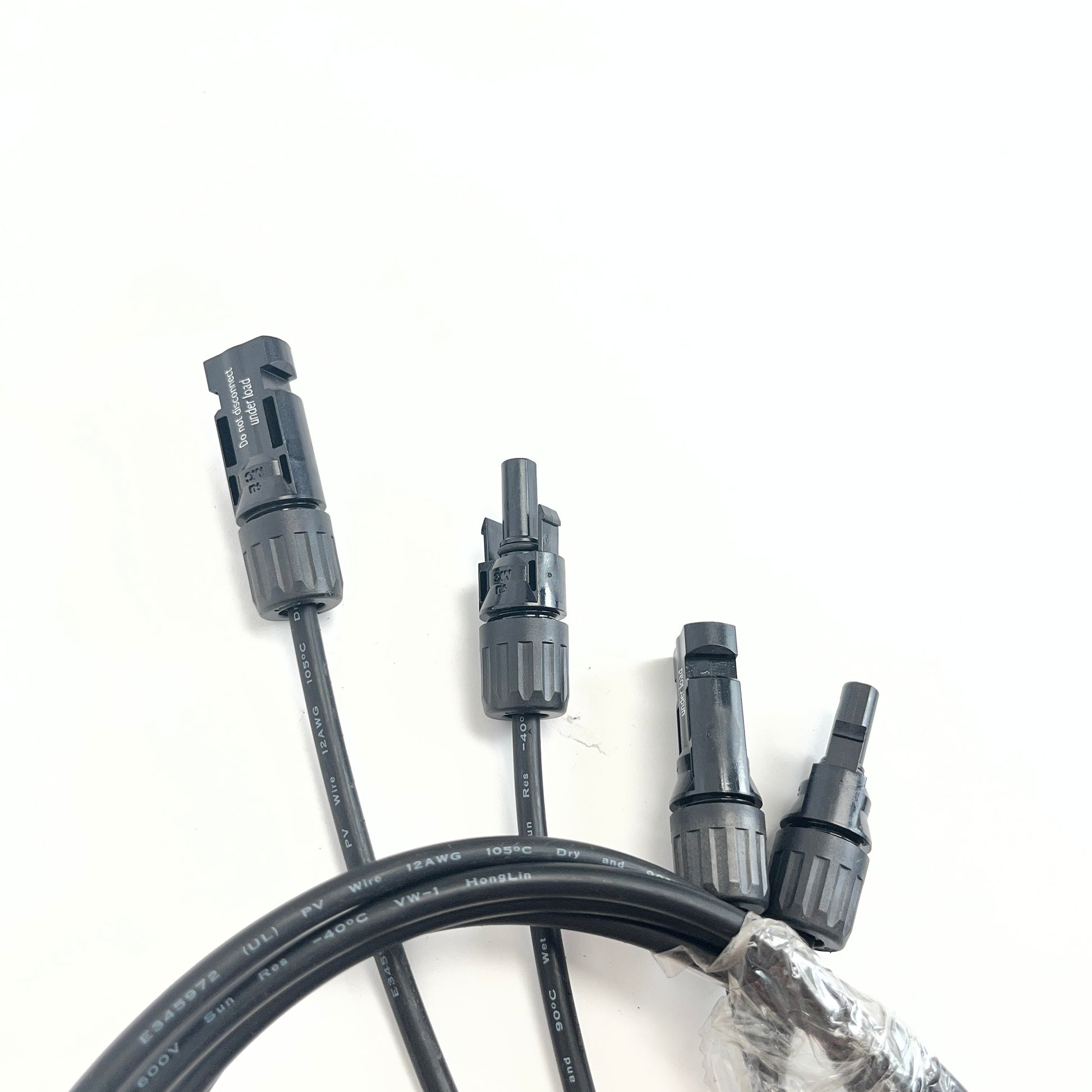

• Input Connector: MC4
• Output Connector: MC4
• Typical Module Compatibility: Higher-Power 60-Cell and 72-Cell PV Modules
• Region: North America
• Configuration Code: NA30
• Product Type: Solar PV Power Optimizer
