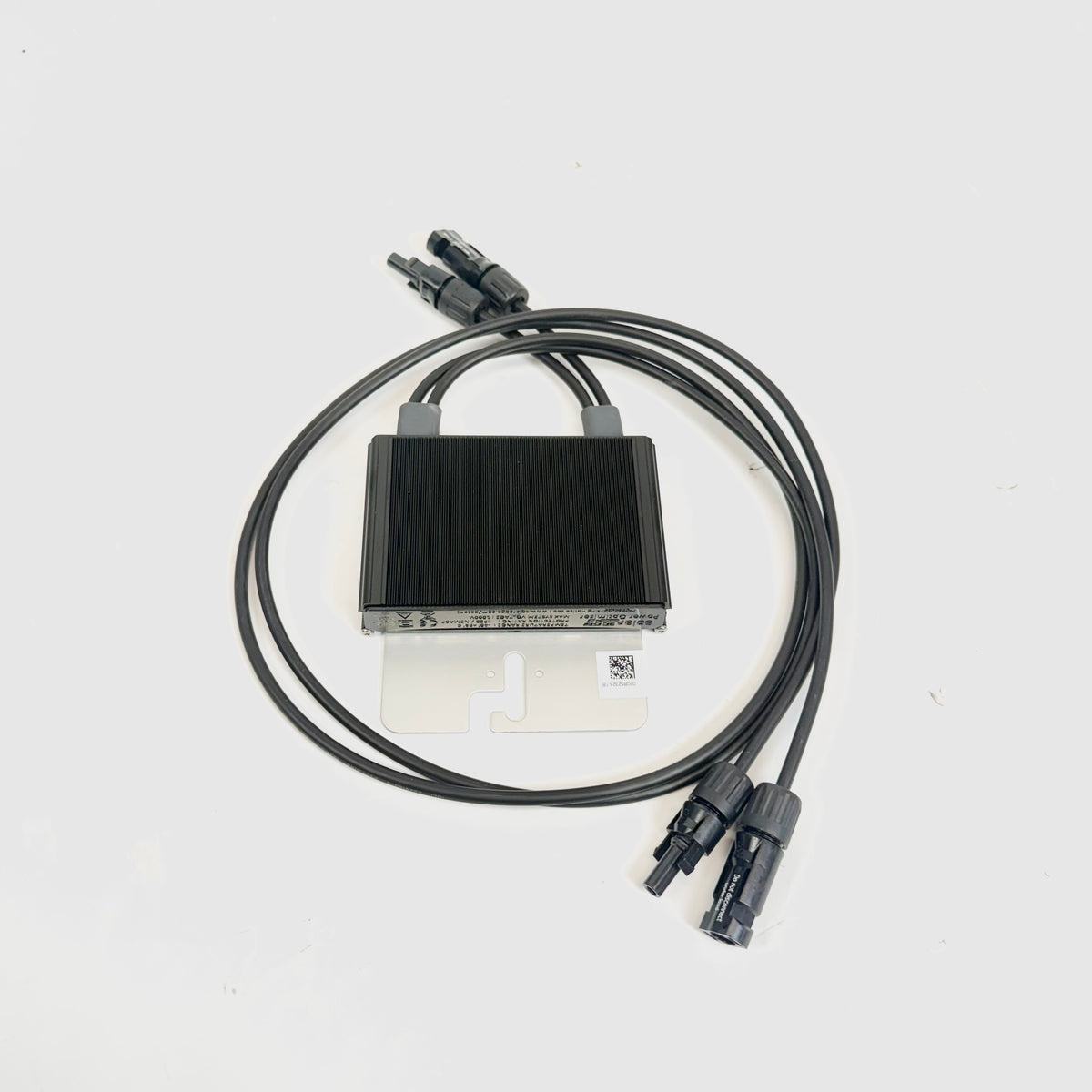

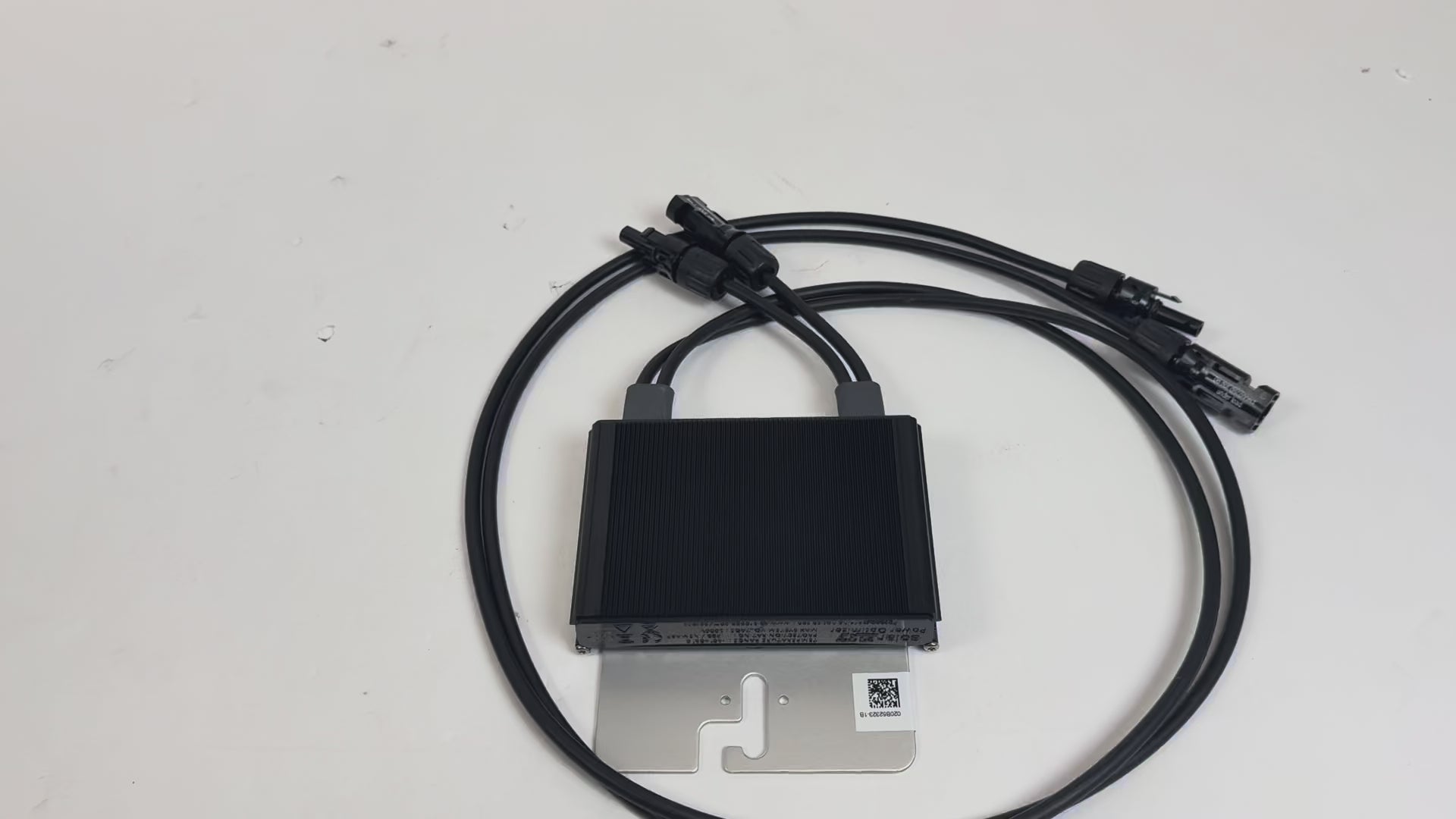

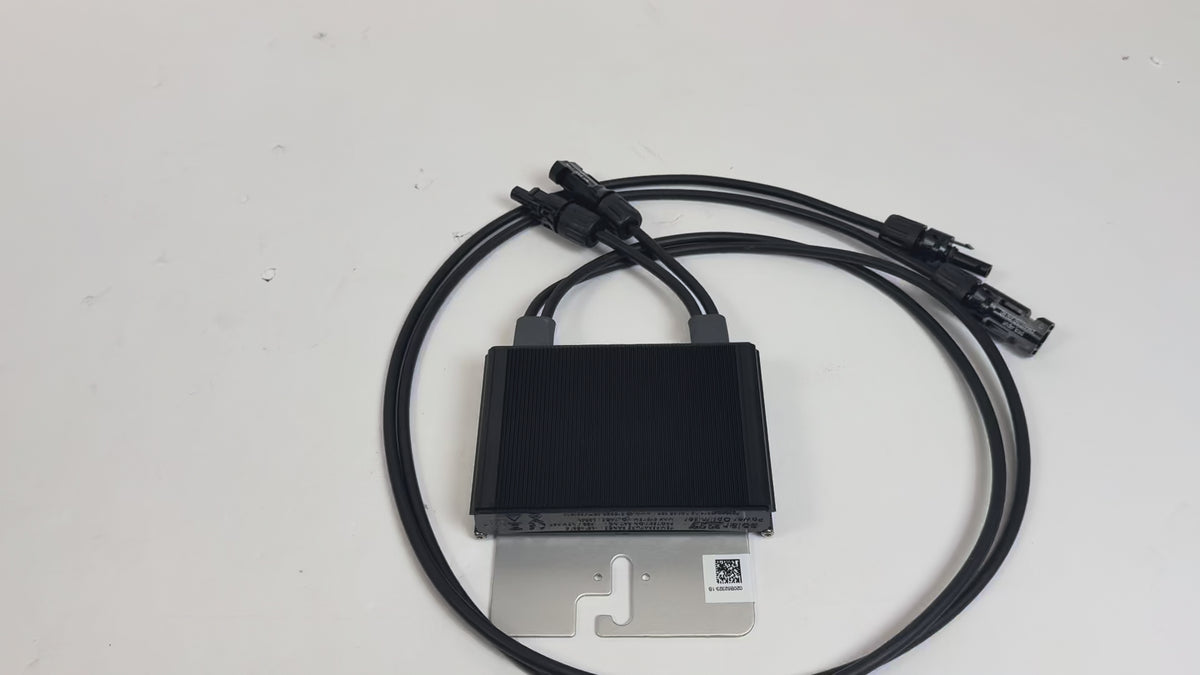

SolarEdge P370-5NM4MRM-NA29 Power Optimizer – 370W – MC4

The SolarEdge P370-5NM4MRM-NA29 Power Optimizer is a module-level DC optimizer designed for use with compatible SolarEdge inverter systems. Installed at the individual solar panel, the P370 provides maximum power point tracking (MPPT) at the module level to help maximize energy production and reduce losses caused by shading, panel mismatch, soiling, and uneven module aging.

The P370 also supports SolarEdge's module-level monitoring and SafeDC™ safety architecture, making it well suited for residential and commercial SolarEdge PV installations.

Key Features:

• Model: P370-5NM4MRM-NA29
• Rated Input DC Power: 370W
• Maximum Input Voltage: 60 VDC
• MPPT Operating Range: 8–60 VDC
• Maximum Output Current: 15A
• Maximum Output Voltage: 60 VDC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Safety Output Voltage: approximately 1 VDC per optimizer
• Maximum System Voltage: 1000 VDC

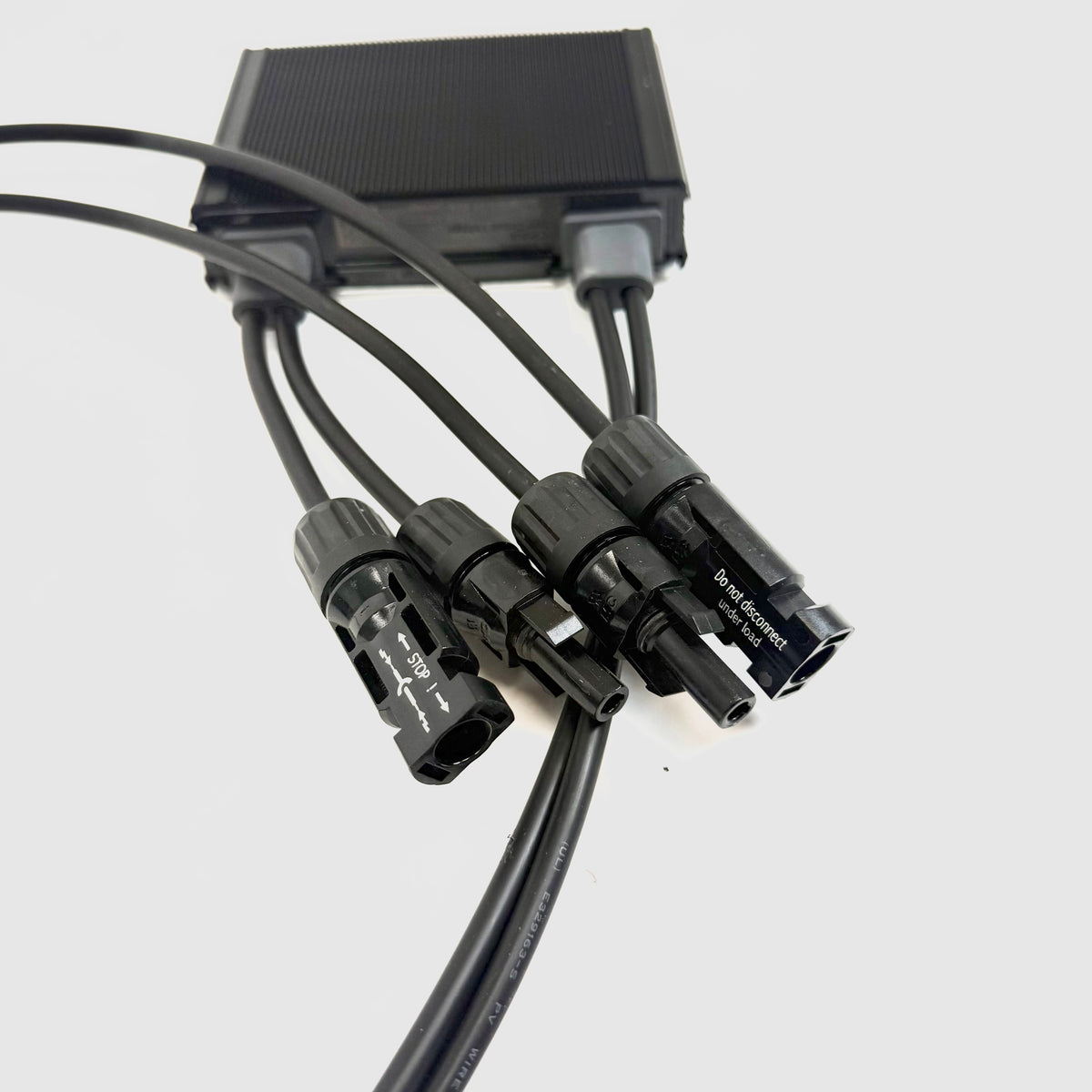

• MC4 connectors
• Module-level Maximum Power Point Tracking (MPPT)
• Supports module-level performance monitoring when used with a compatible SolarEdge system
• Designed for outdoor solar installations

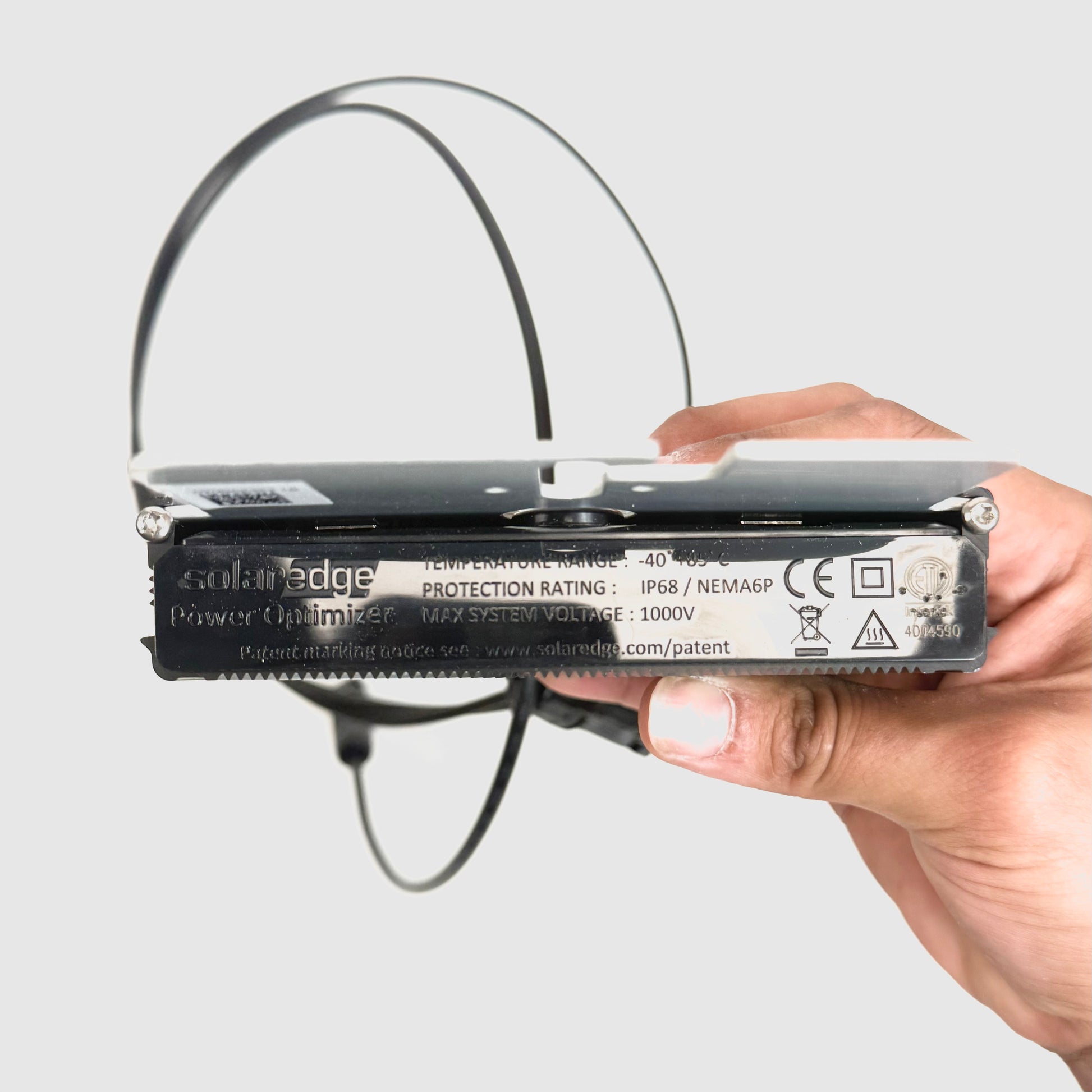

• IP68 / NEMA 6P environmental protection
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Designed specifically for use with compatible SolarEdge inverters
