SolarEdge P400 Power Optimizer 400W – Solar Panel Module-Level Optimizer

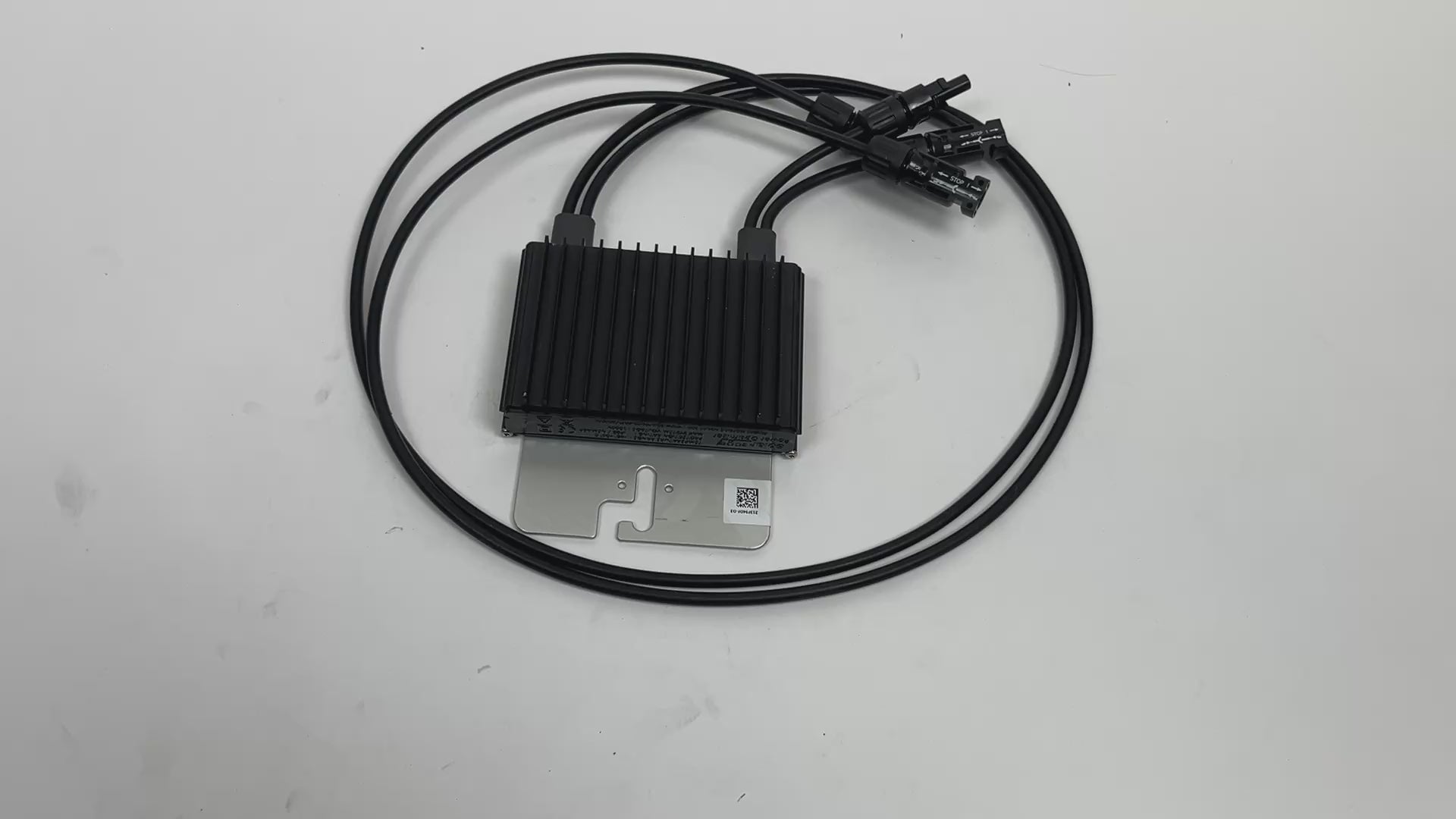

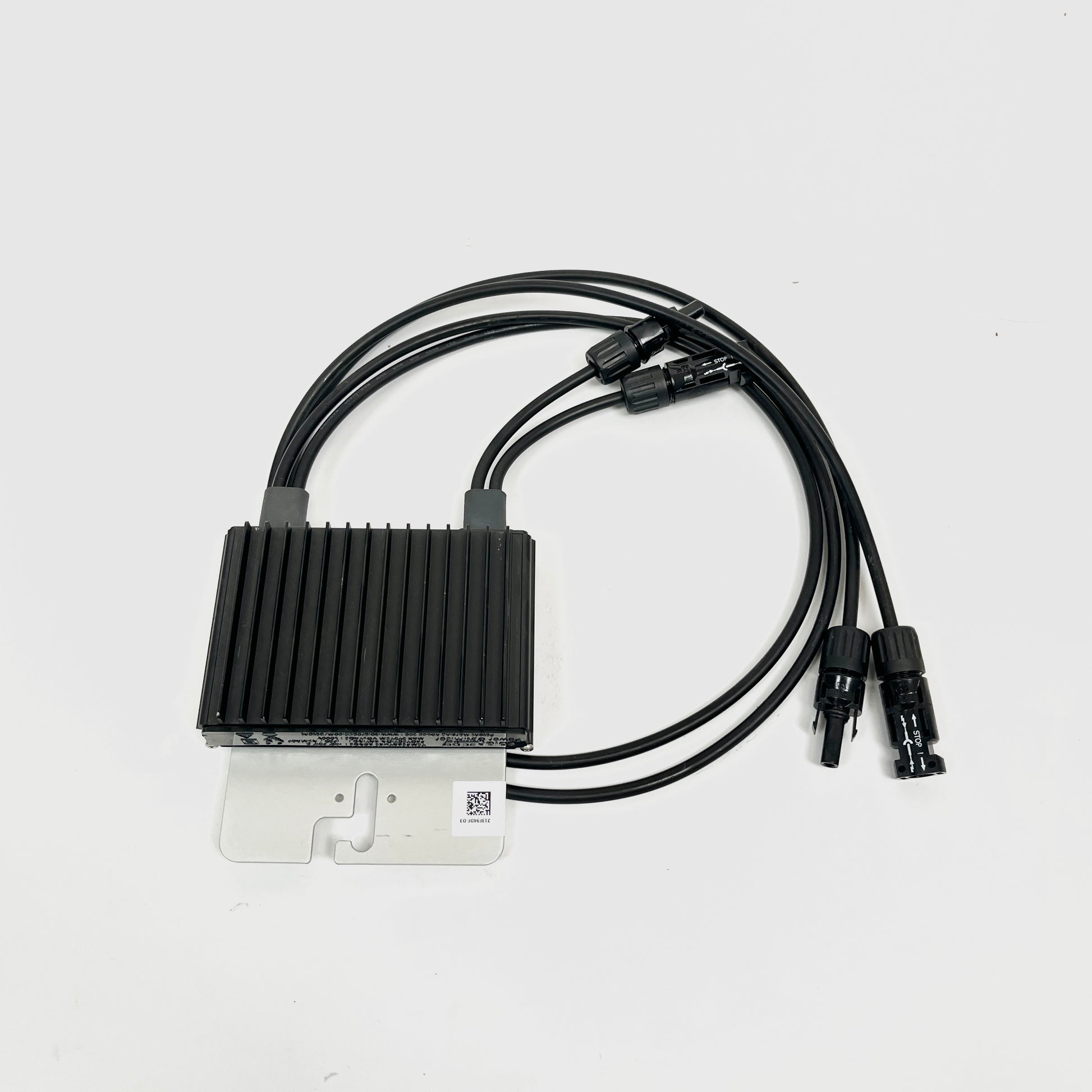

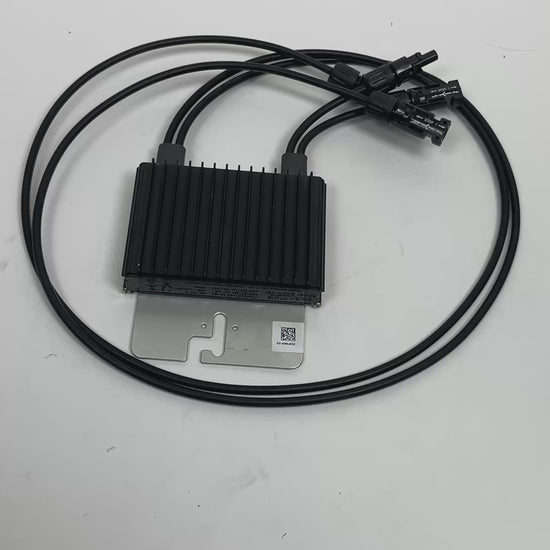

The SolarEdge P400 Power Optimizer is a module-level DC power optimizer designed to maximize energy production from individual photovoltaic solar panels when used with a compatible SolarEdge inverter.

Installed directly at the solar module, the P400 performs individual maximum power point tracking (MPPT) for each panel. This helps reduce energy losses caused by partial shading, manufacturing tolerances, soiling, aging, and differences in panel orientation.

The P400 also provides module-level monitoring and SolarEdge's SafeDC functionality, which reduces optimizer output voltage to approximately 1V when the SolarEdge inverter is shut down or disconnected.

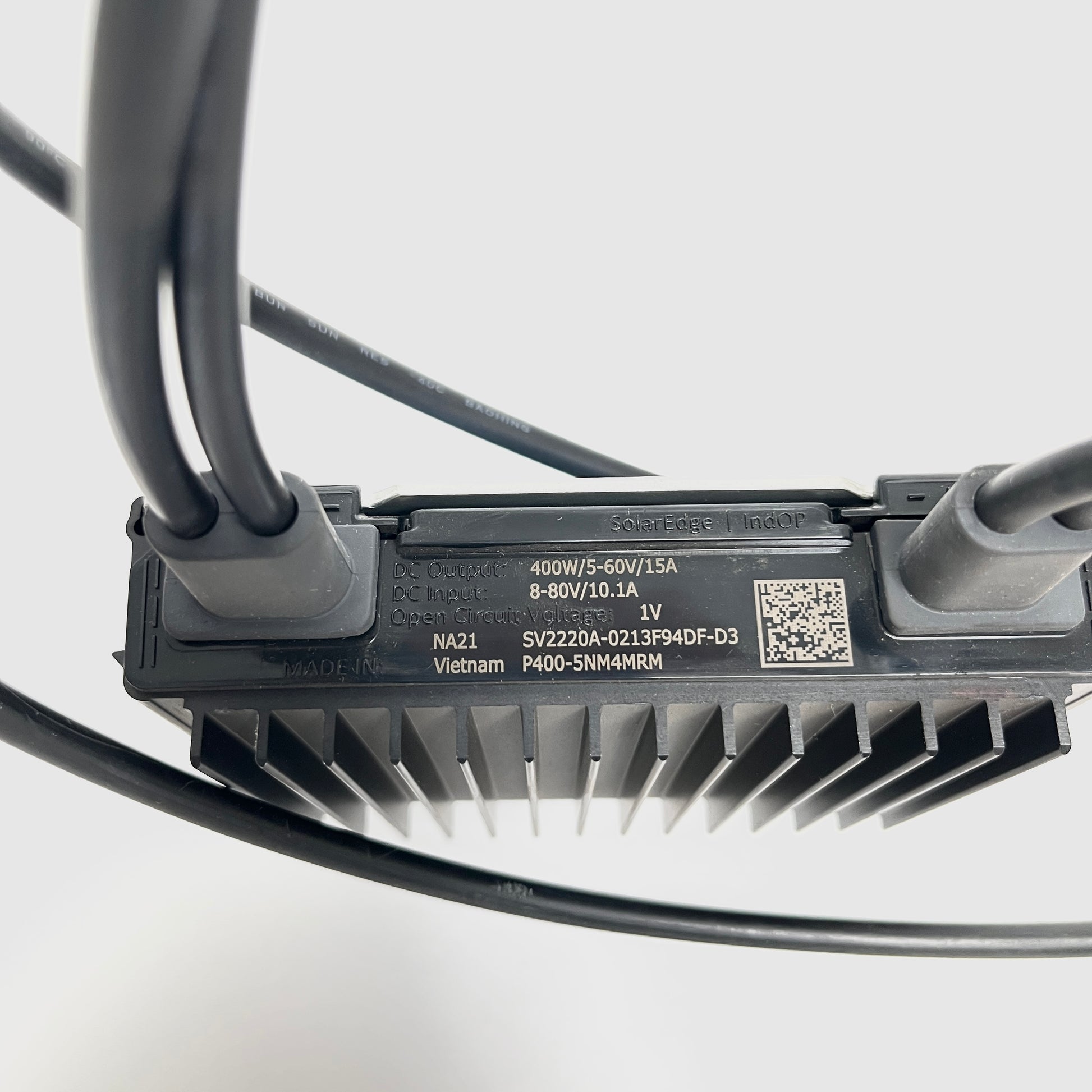

Specifications:

• Manufacturer: SolarEdge
• Model: P400
• Product Type: DC Power Optimizer
• Rated Input DC Power: 400W
• Typical Module Compatibility: 72- and 96-cell solar panels
• Maximum Input Voltage: 80V DC
• MPPT Operating Range: 8–80V DC
• Maximum Short-Circuit Current (Isc): 10.1A on later P5-series specification
• Maximum Output Current: 15A DC
• Maximum Output Voltage: 60V DC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Safety Output Voltage: Approximately 1V per optimizer
• Maximum System Voltage: 1000V DC

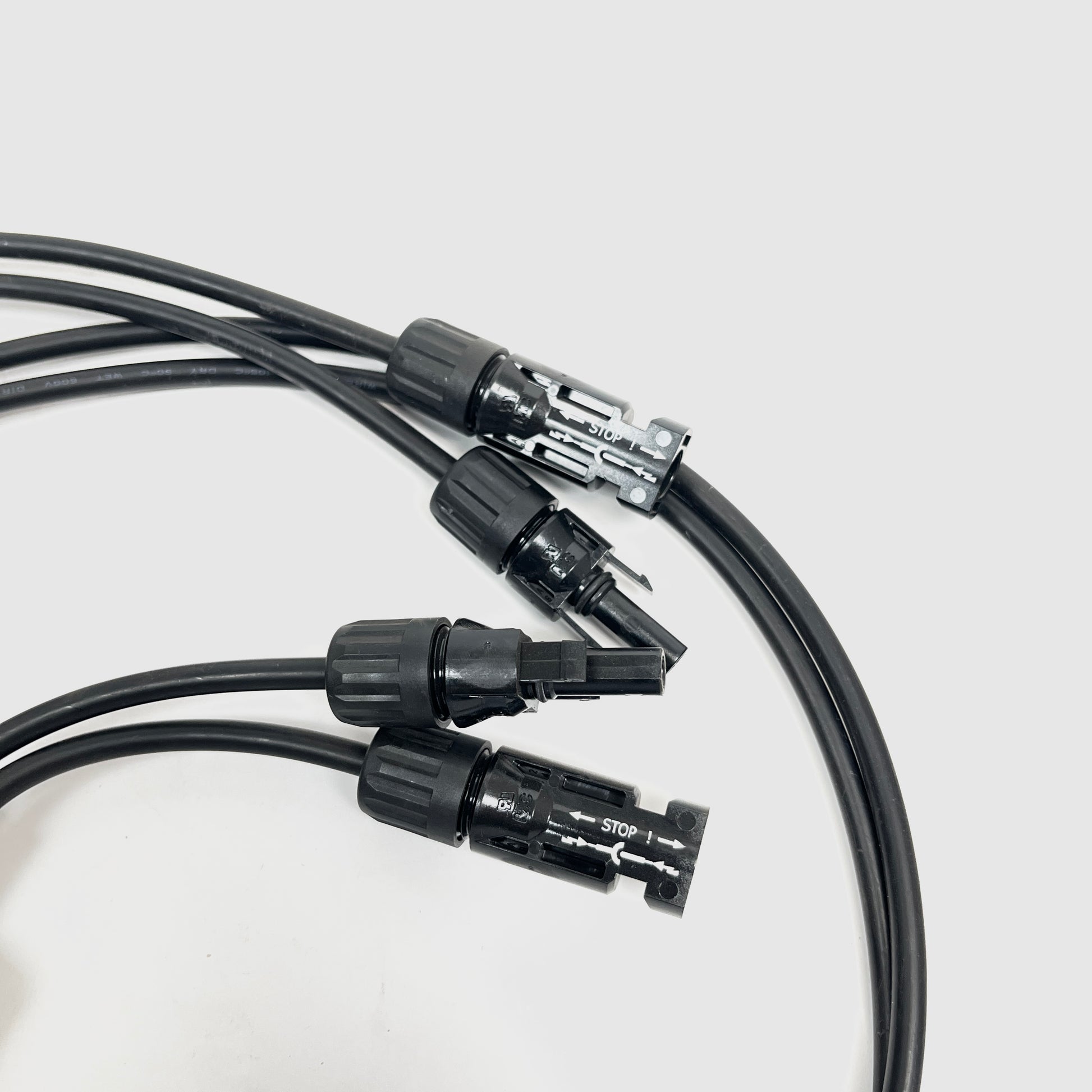

• Connector Type: MC4
• Protection Rating: IP68 / NEMA 6P on P5-series models
• Operating Temperature: -40°F to 185°F (-40°C to +85°C)
• Compatible with applicable SolarEdge single-phase and three-phase inverters
