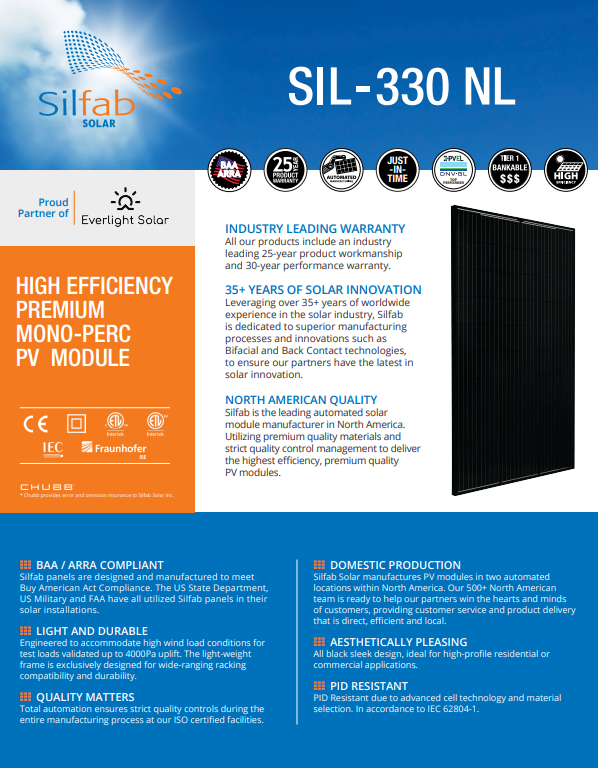

Silfab SIL-330NL 330W Monocrystalline Solar Panel – Black

The Silfab SIL-330NL is a high-performance 330-watt monocrystalline PERC solar panel designed for residential and commercial photovoltaic installations. Featuring a sleek black frame and black backsheet, this module combines strong power output, high efficiency, and an attractive appearance ideal for rooftop solar systems.

Built with 60 monocrystalline PERC cells, the SIL-330NL delivers a module efficiency of 19.4% while maintaining a compact footprint. Its durable construction includes high-transmittance tempered glass, an anodized aluminum frame, weather-resistant junction box, and genuine Stäubli MC4 connectors.

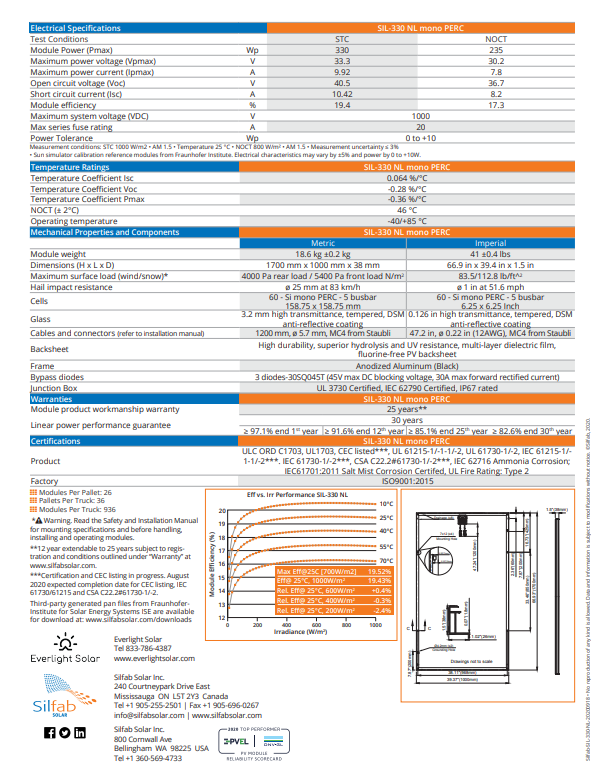

Specifications:

• Manufacturer: Silfab Solar
• Model: SIL-330NL
• Rated Maximum Power (Pmax): 330W
• Cell Type: Monocrystalline PERC
• Number of Cells: 60
• Module Efficiency: 19.4%
• Maximum Power Voltage (Vmp): 33.3V
• Maximum Power Current (Imp): 9.92A
• Open Circuit Voltage (Voc): 40.5V
• Short Circuit Current (Isc): 10.42A
• Power Tolerance: 0 to +10W
• Maximum System Voltage: 1000V DC
• Maximum Series Fuse Rating: 20A
• Dimensions: 1700 × 1000 × 38 mm
• Approximate Dimensions: 66.9" × 39.4" × 1.5"
• Weight: Approximately 41 lbs. (18.6 kg)
• Frame: Black Anodized Aluminum
• Backsheet: Black
• Glass: 3.2mm high-transmittance tempered glass with anti-reflective coating
• Connectors: Stäubli MC4
• Junction Box: IP67
• Operating Temperature: -40°C to +85°C
• Maximum Front Load: 5400 Pa
• Maximum Rear Load: 4000 Pa
• CEC PTC Rating: 305.4W
• Safety Certification: UL 61730
