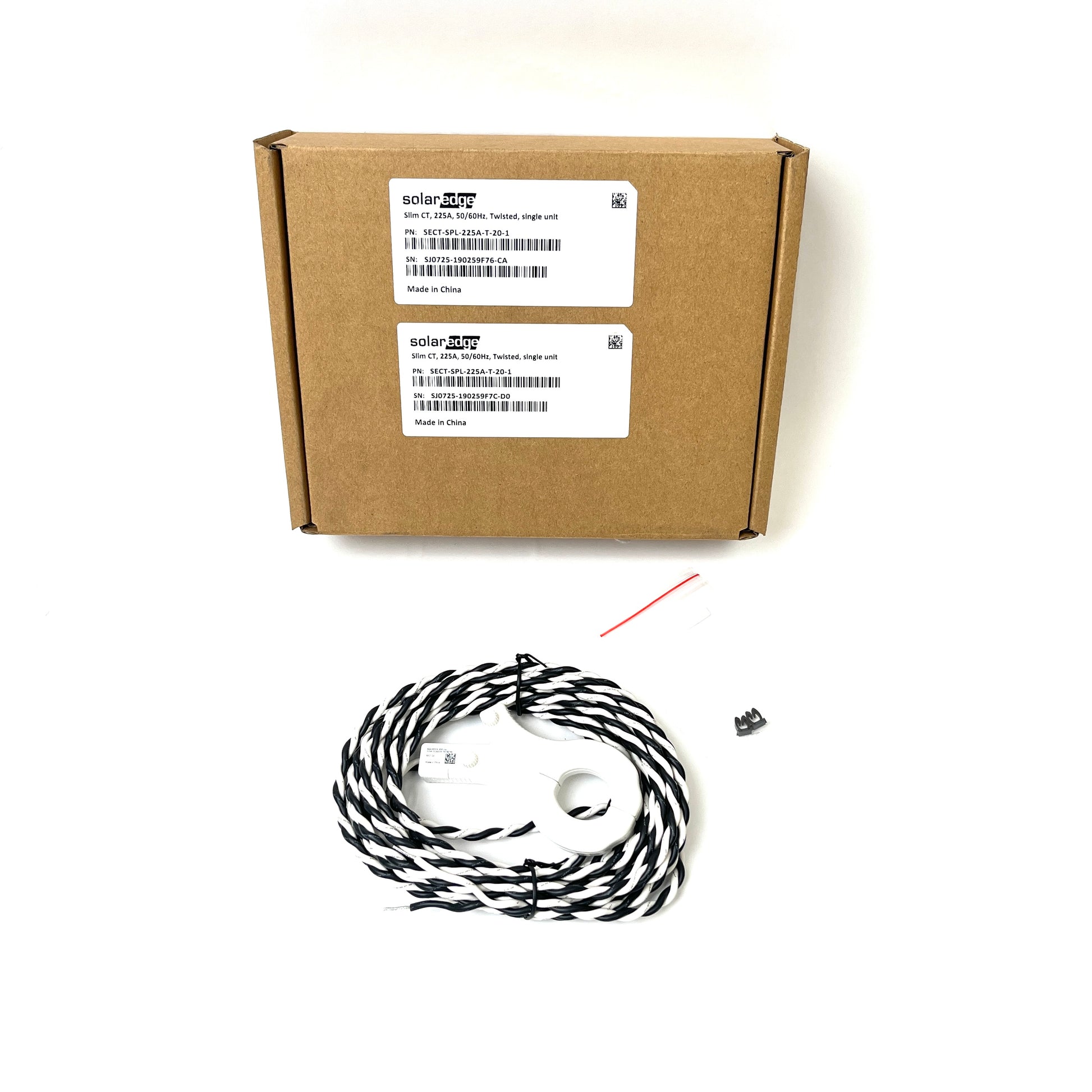

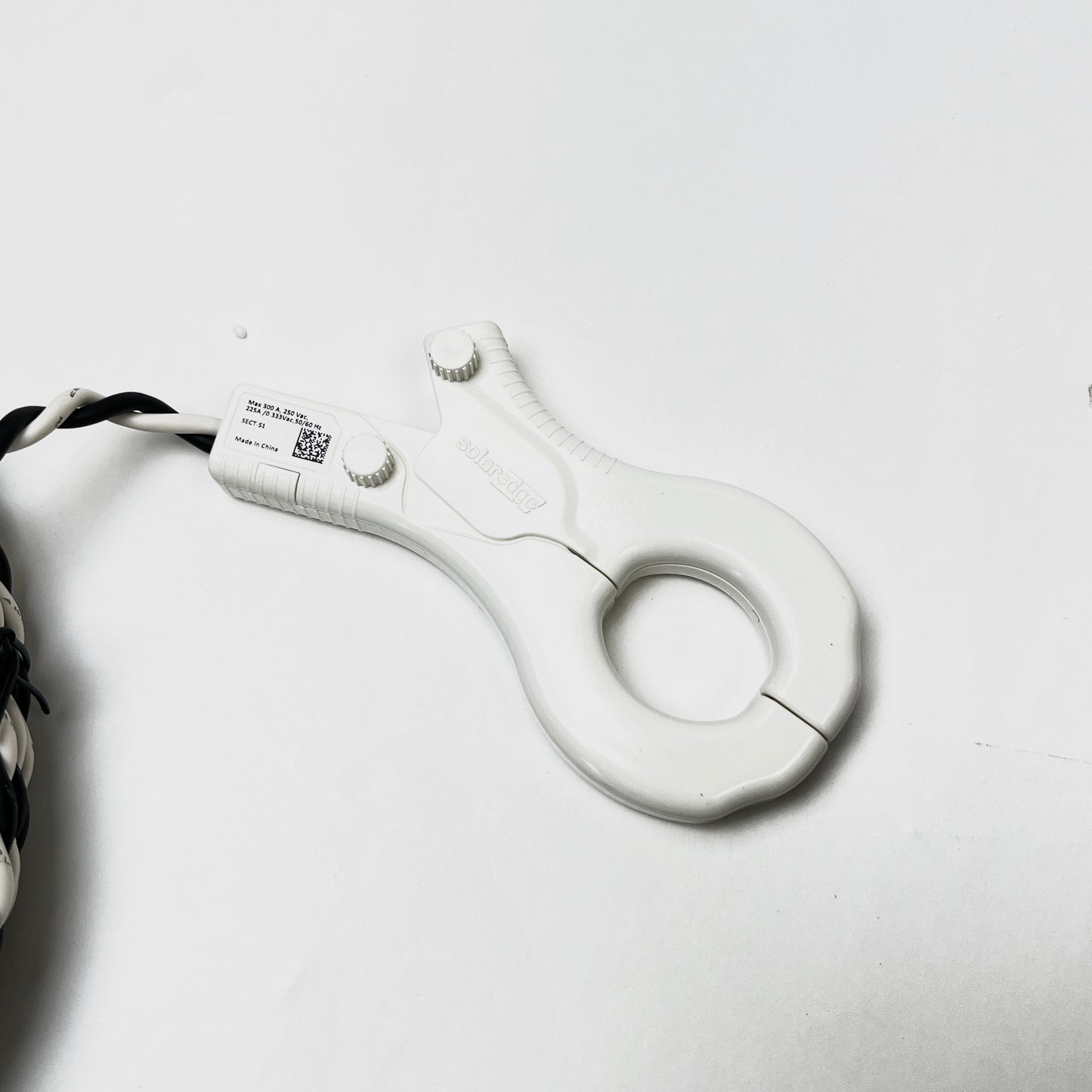

SolarEdge SECT Split-Core Current Transformer CT 225A 50/60Hz Single Phase

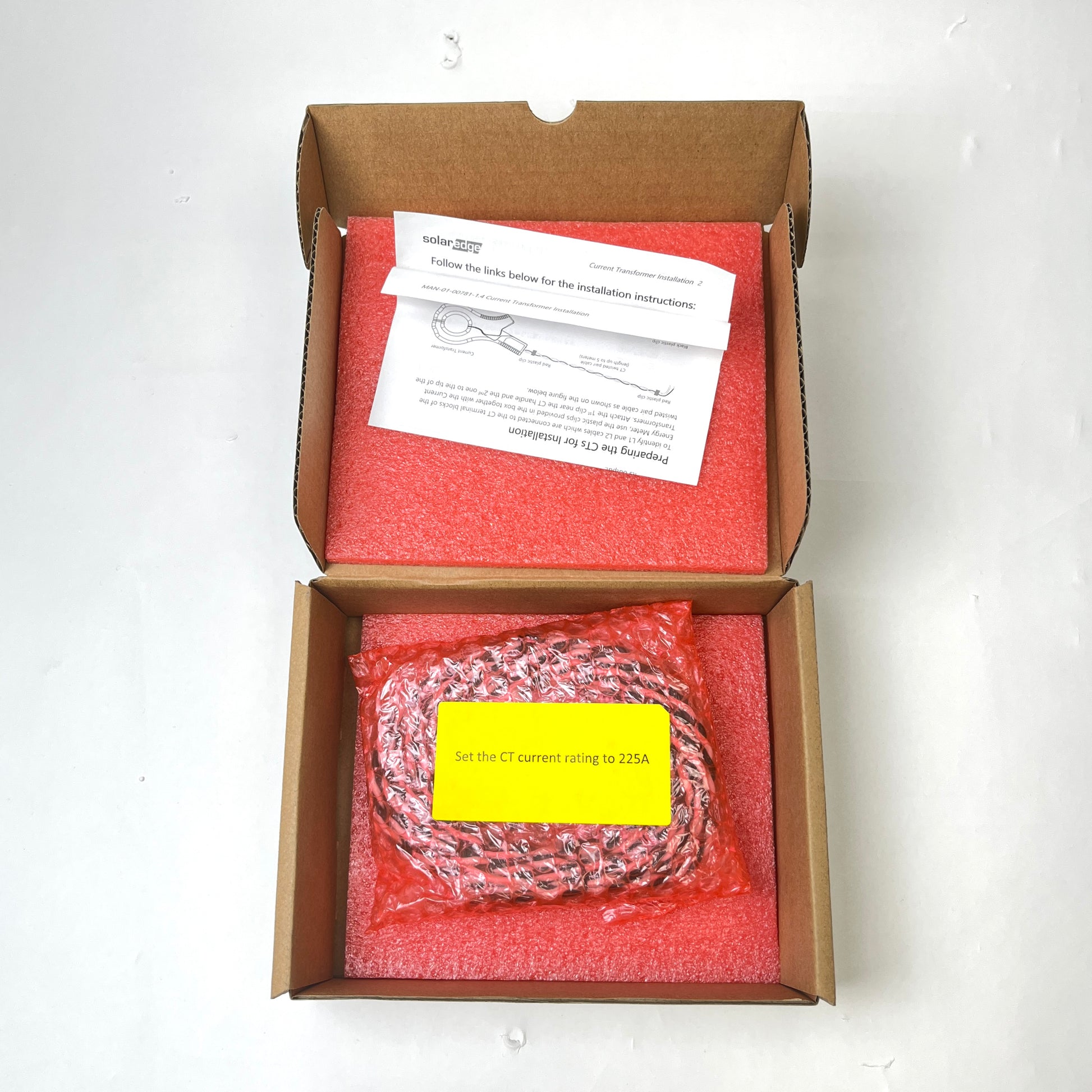

One item per box

The SolarEdge 225A Slim Current Transformer (CT) is designed for accurate electrical current measurement in compatible SolarEdge energy monitoring systems. Its slim split-core clamp design allows the CT to be installed around an existing conductor without disconnecting the conductor, making it particularly convenient for residential and commercial solar installations.

When connected to a compatible SolarEdge energy meter or inverter with integrated consumption metering, the CT allows the system to measure electrical current for applications such as consumption monitoring, import/export monitoring, export limitation, and smart energy management.

Key Features

• 225A rated current
• Maximum continuous current: 300A
• Rated for systems up to 600VAC

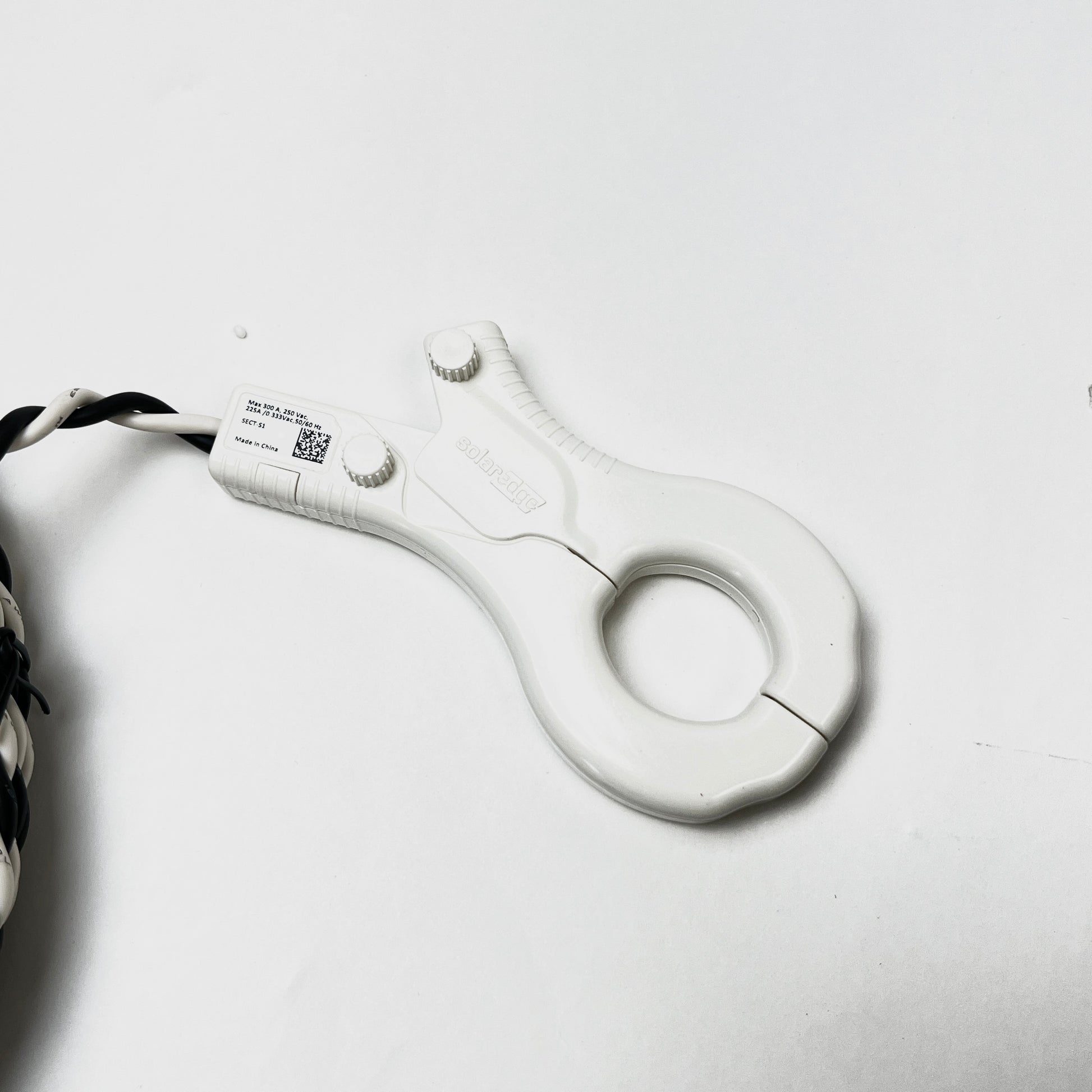

• Split-core clamp design
• Slim profile designed to fit inside electrical service panels
• 0–333 mVAC output
• Accuracy: ±1% across 1–100% of rated current
• 50/60 Hz operation
• Maximum primary conductor size: 300 kcmil
• Approximately 0.885" / 22.6 mm conductor opening

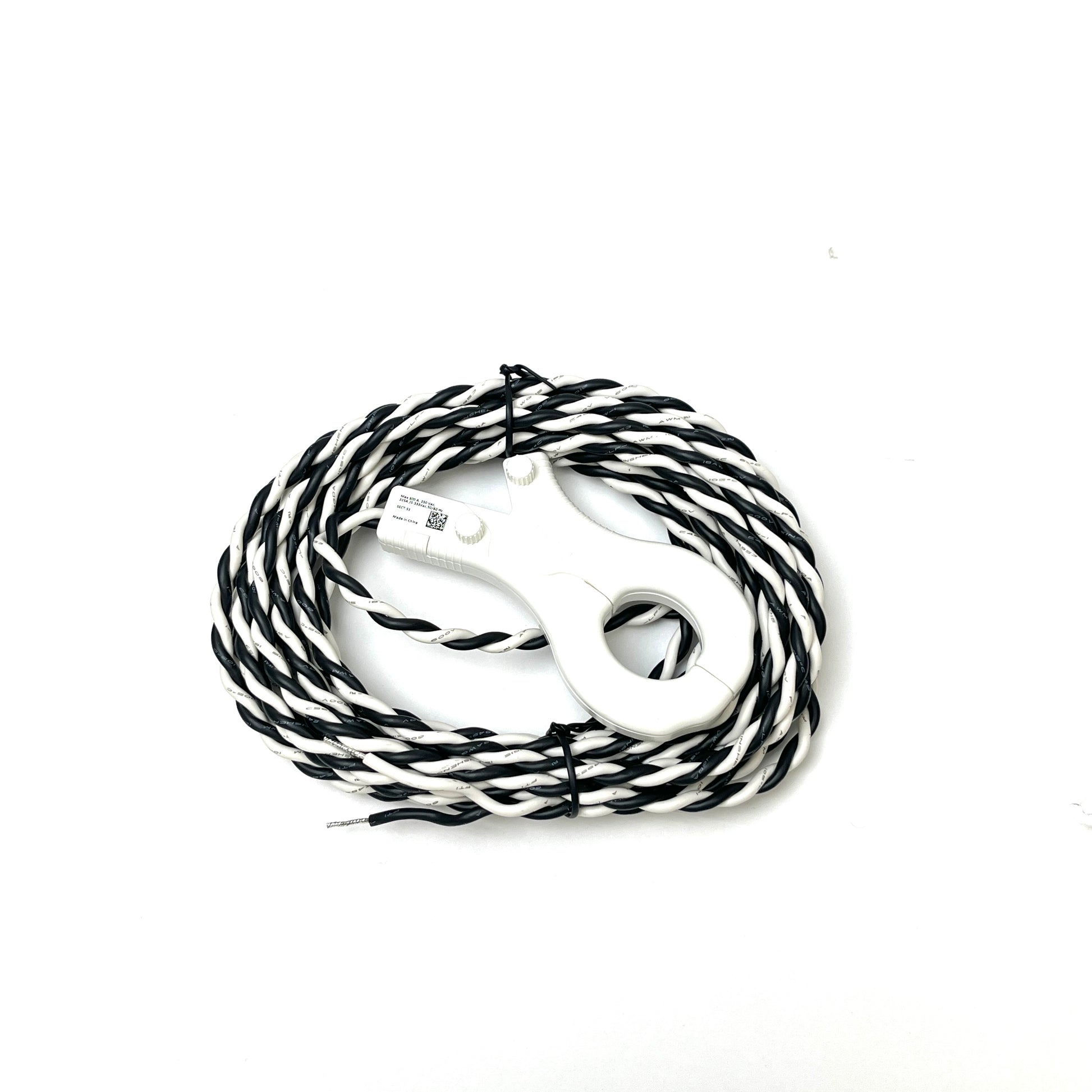

• Includes approximately 17 ft / 5.2 m twisted-pair lead
• Polycarbonate construction
• CAT III 600V
• UL 2808 listed
• RoHS compliant
