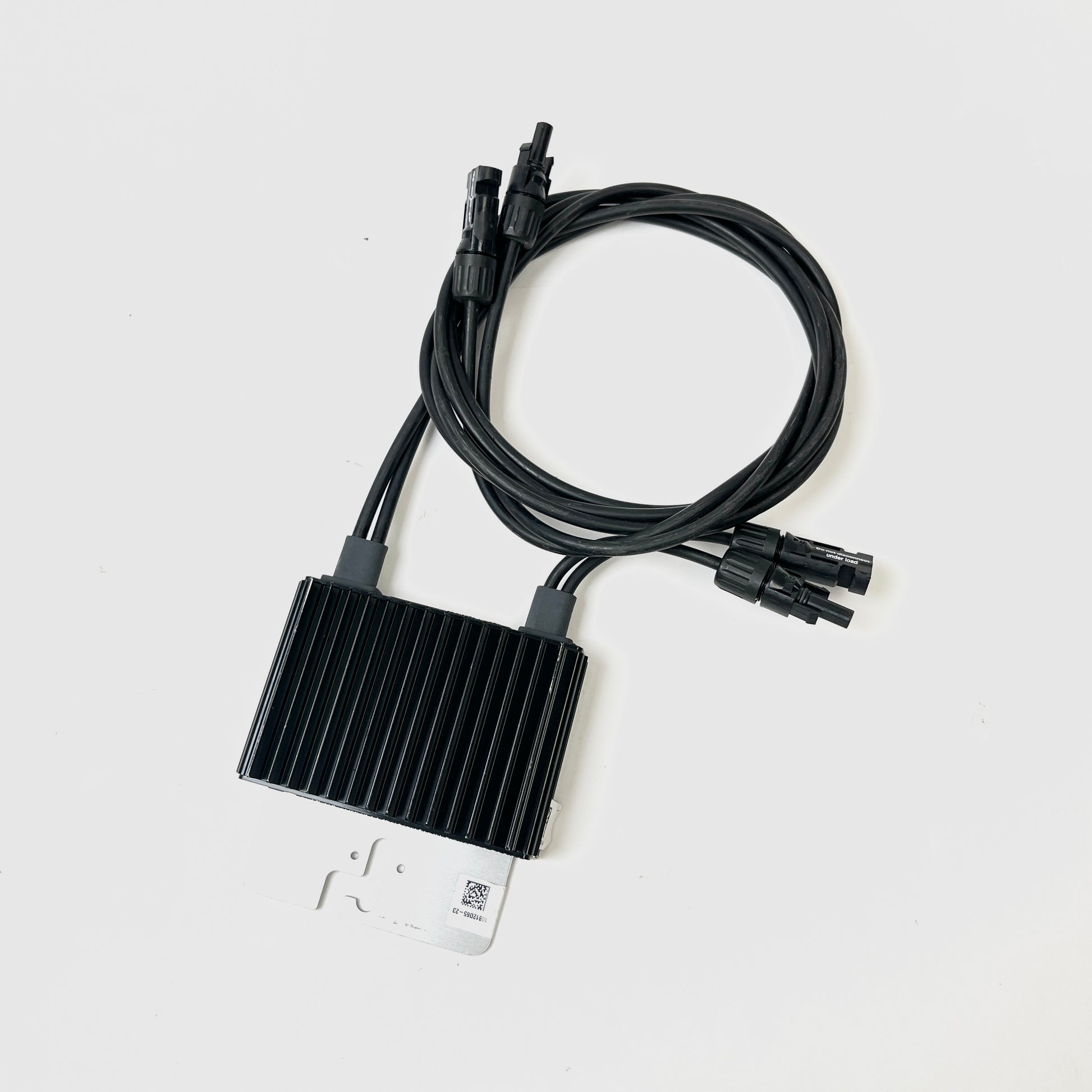

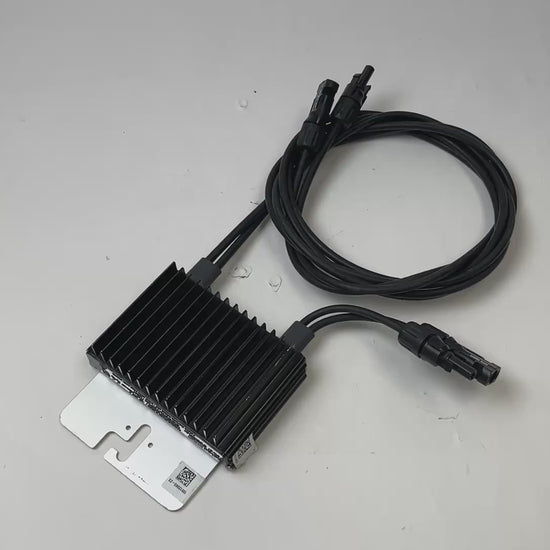

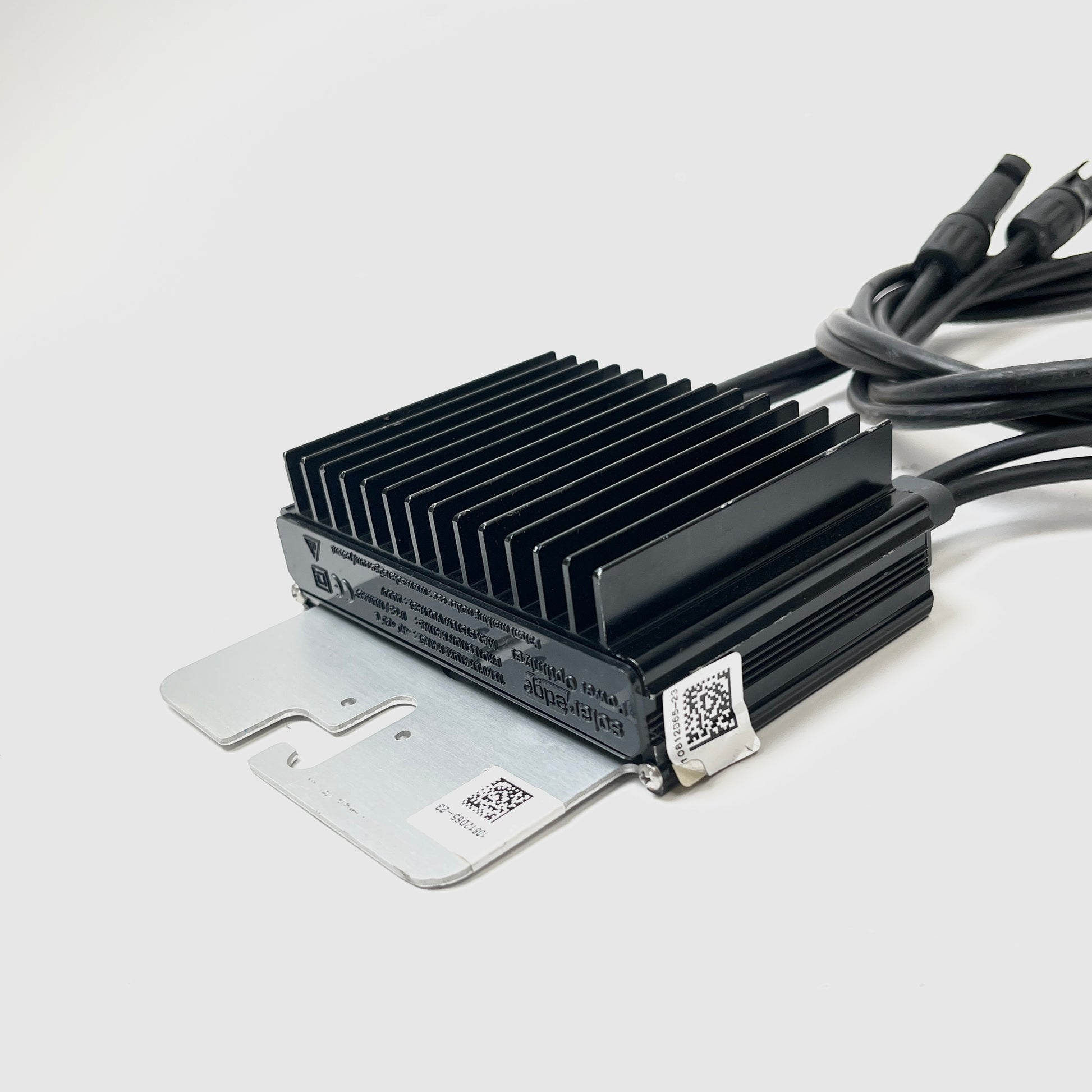

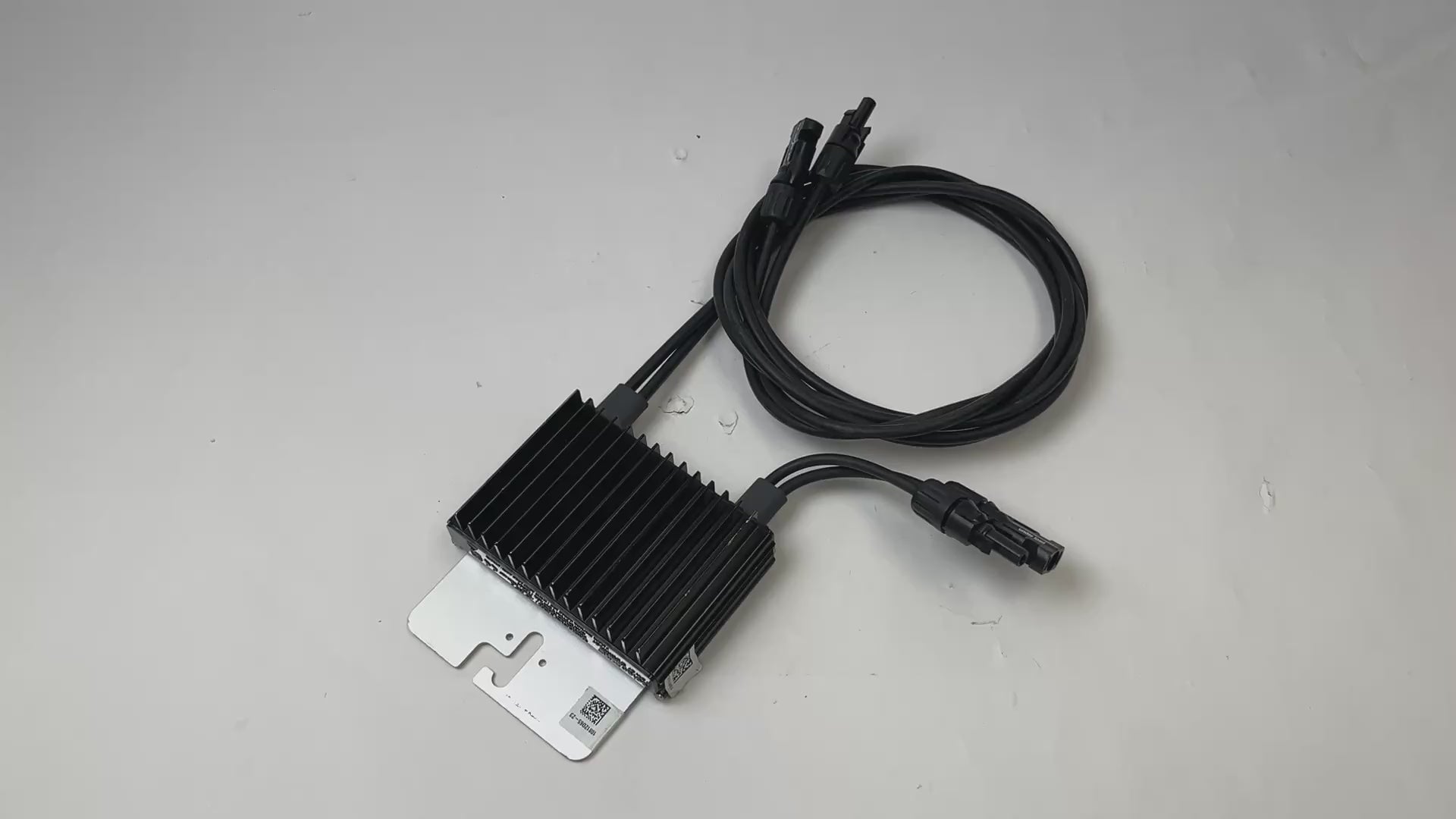

SolarEdge P600-5NC4ARL Power Optimizer 600W MC4 – Commercial – NM1B A1

The SolarEdge P600 Power Optimizer is a commercial module-level DC power optimizer designed for use with compatible SolarEdge three-phase inverter systems.

Unlike typical single-module SolarEdge optimizers, the P600 is designed to connect to two 60-cell photovoltaic modules connected in series, allowing one optimizer to manage a pair of solar panels with a combined rated input power of up to 600 watts.

The optimizer performs Maximum Power Point Tracking (MPPT) at the module-pair level, helping maximize energy production and reduce losses caused by shading, soiling, module mismatch, aging, and variations in panel performance.

Specifications:

• Manufacturer: SolarEdge
• Model: P600
• Part Number: P600-5NC4ARL
• Label Codes: NM1B / A1
• Rated Input DC Power: 600W combined
• Typical Module Compatibility: 2 × 60-cell PV modules
• Absolute Maximum Input Voltage: 96V DC
• MPPT Operating Range: 12.5–80V DC
• Maximum DC Input Current: 12.5A
• Maximum Output Current: 15A DC
• Maximum Output Voltage: 85V DC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.6%
• Safety Output Voltage: 1V DC per optimizer
• Maximum System Voltage: 1000V DC

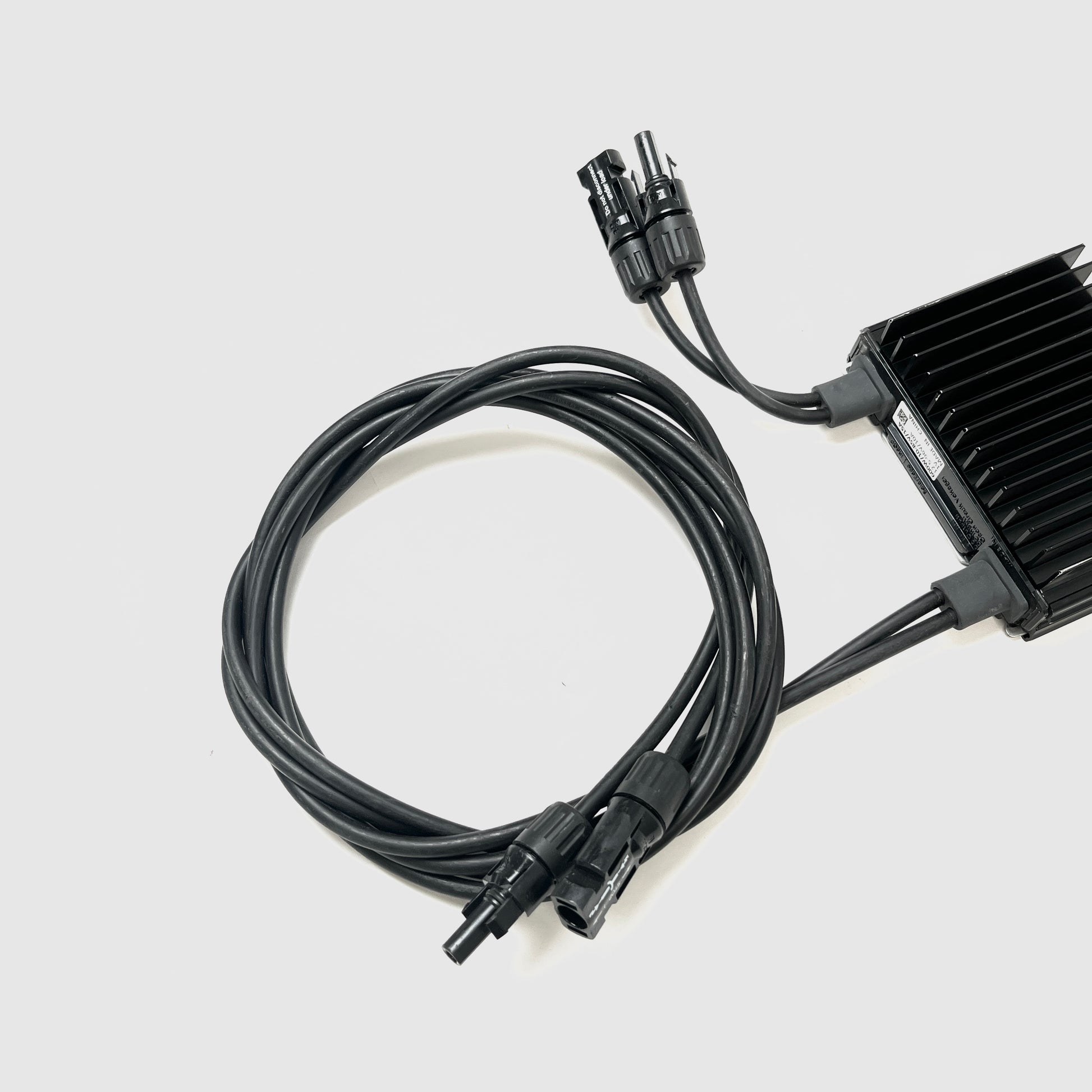

• Input Connector: MC4 Compatible
• Output Connector: MC4 Compatible
• Commercial Solar Application
• Designed for compatible SolarEdge three-phase inverters
• North American configuration
