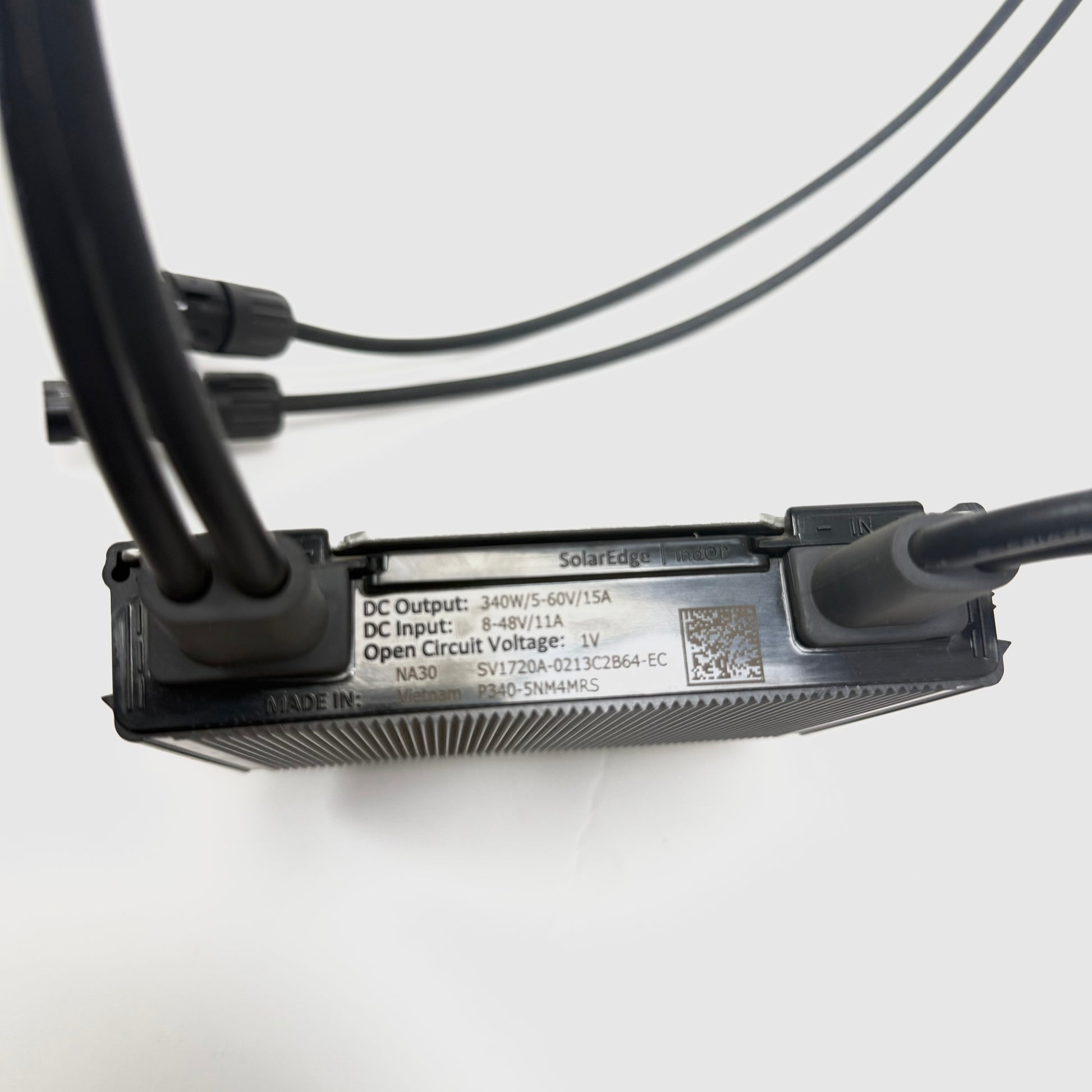

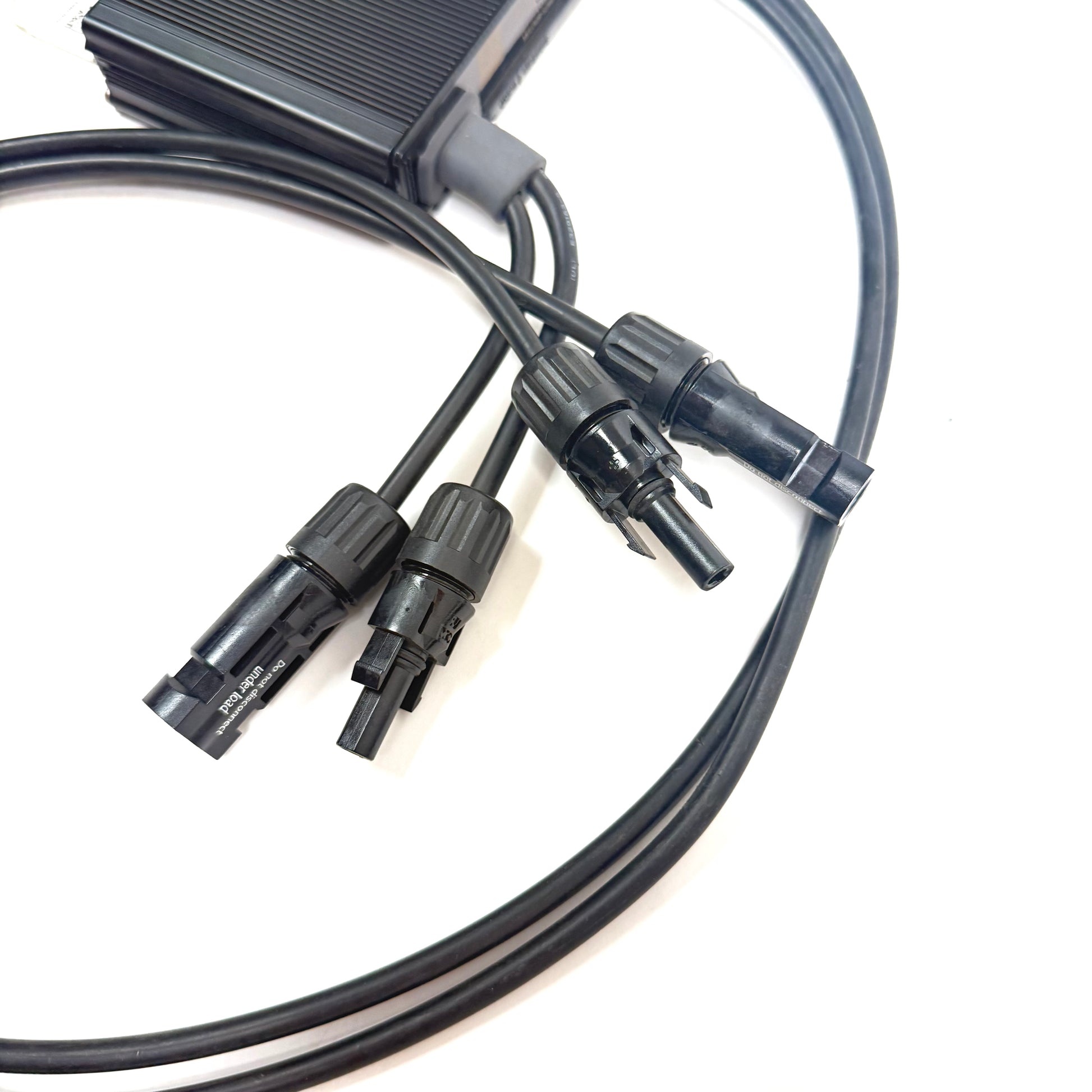

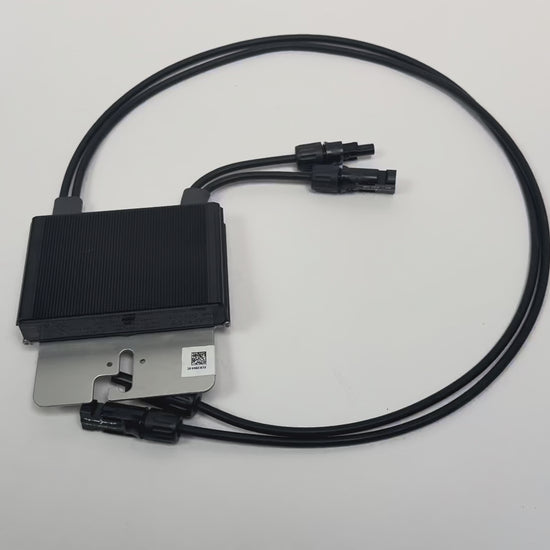

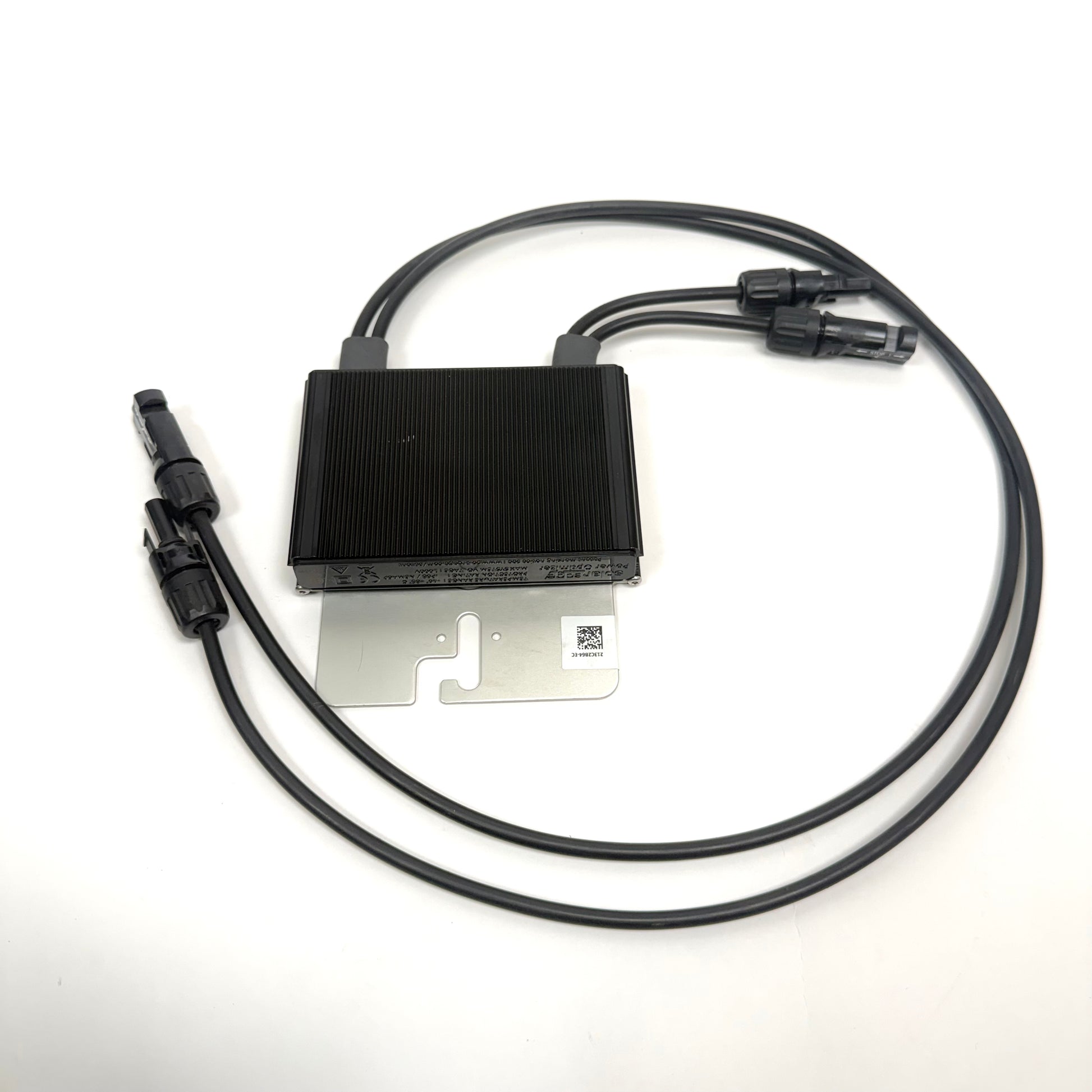

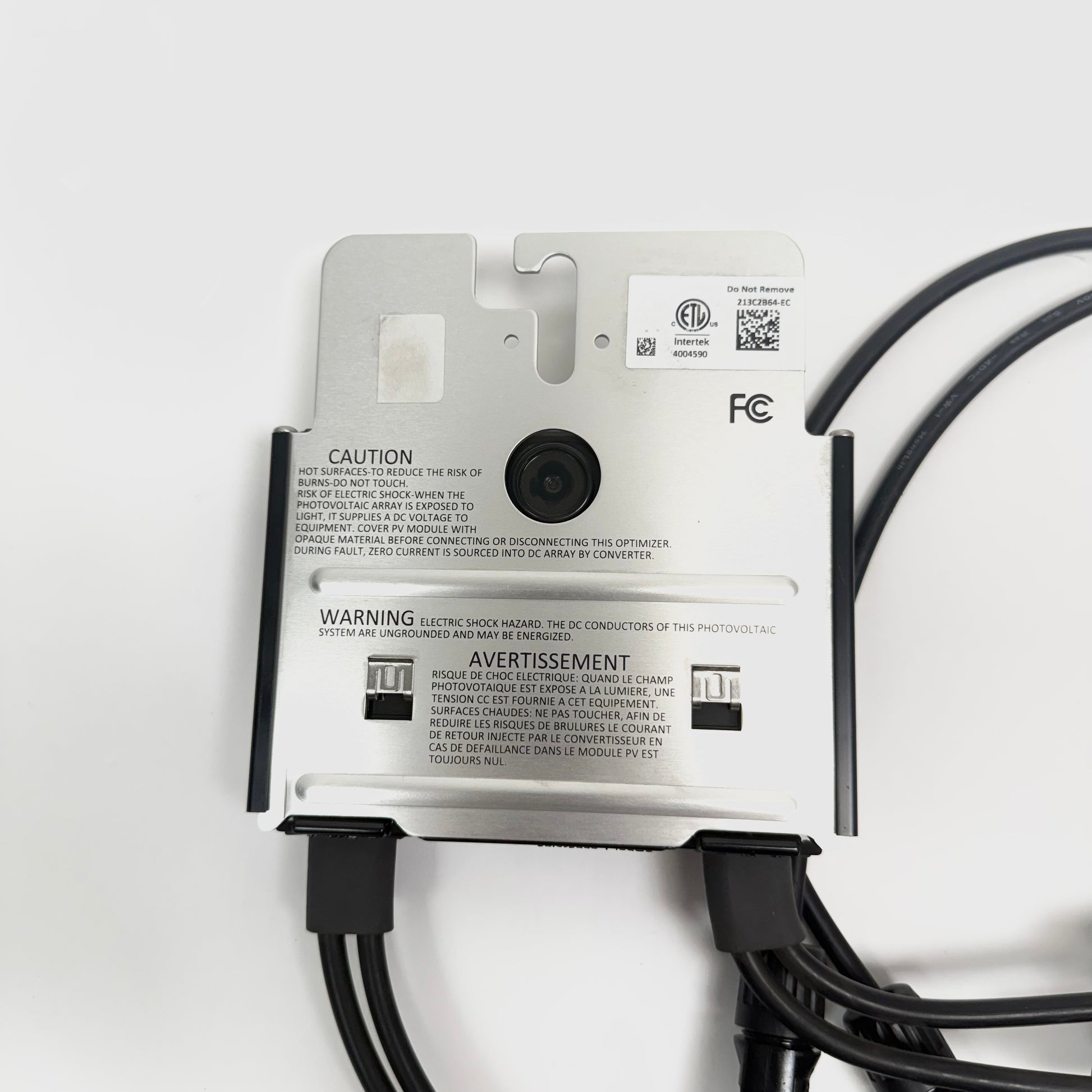

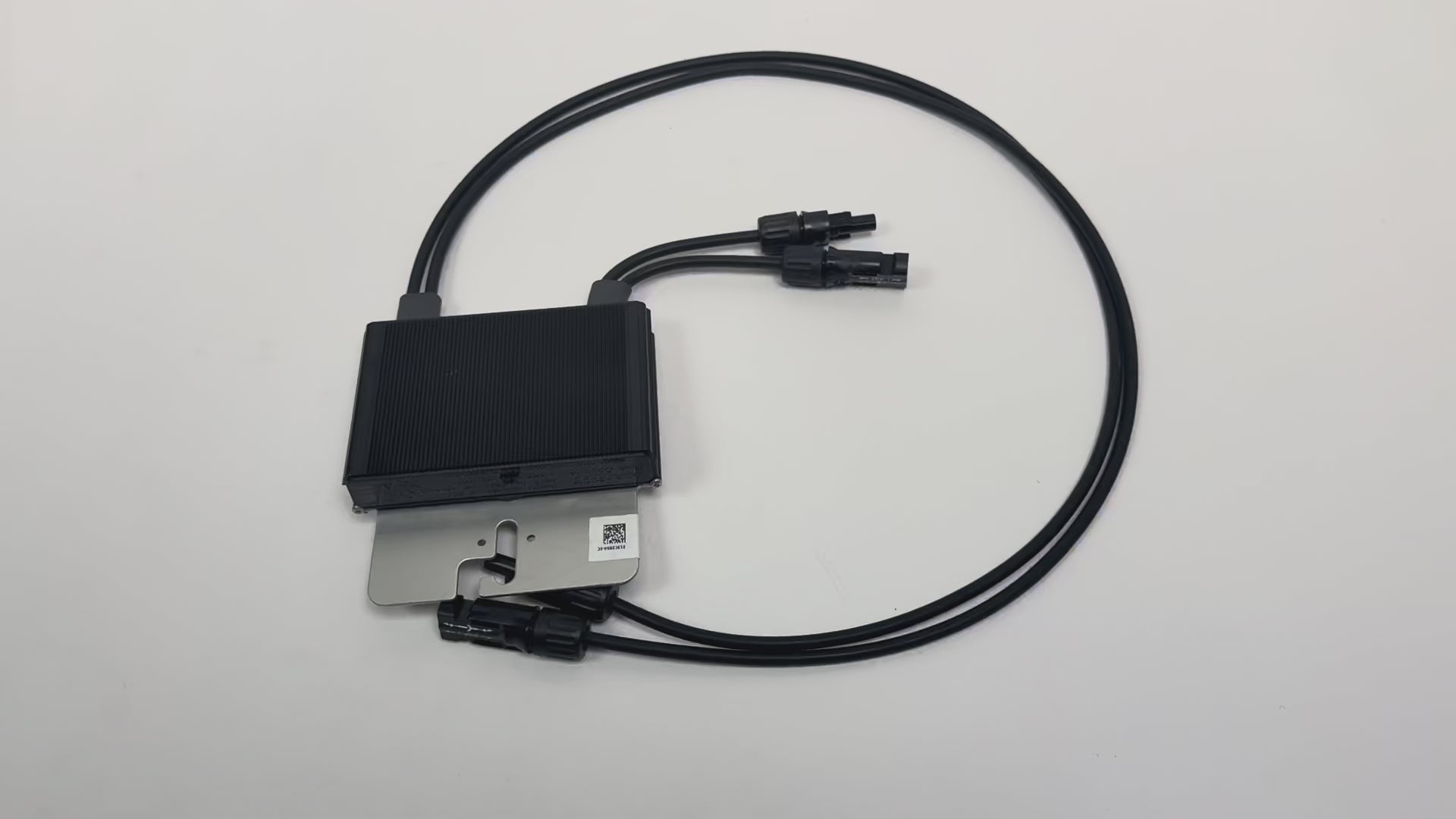

Solaredge Power Optimizer P340 340W/5-60v/15a NA30

The SolarEdge P340 Power Optimizer is a module-level DC power optimizer designed for use with compatible SolarEdge inverter systems. Rated for photovoltaic modules up to 340 watts, the P340 provides individual maximum power point tracking (MPPT) at each solar panel to help maximize energy production throughout the solar array.

By optimizing each module independently, the P340 helps reduce power losses caused by partial shading, soiling, module mismatch, manufacturing tolerances, aging, and differences in panel orientation.

Specifications:

• Manufacturer: SolarEdge
• Model: P340
• Rated Input Power: 340W
• Maximum Input Voltage: 60V DC
• Label Input Range: 5–60V DC
• Maximum Output Current: 15A
• Maximum Output Voltage: 60V DC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Typical Module Application: High-Power 60-Cell Solar Modules
• Region: North America
• Configuration / Label Code: NA30
• Module-Level Maximum Power Point Tracking (MPPT)
• Module-Level Monitoring Capability
• SafeDC Safety Functionality
• Designed for use with compatible SolarEdge inverters
