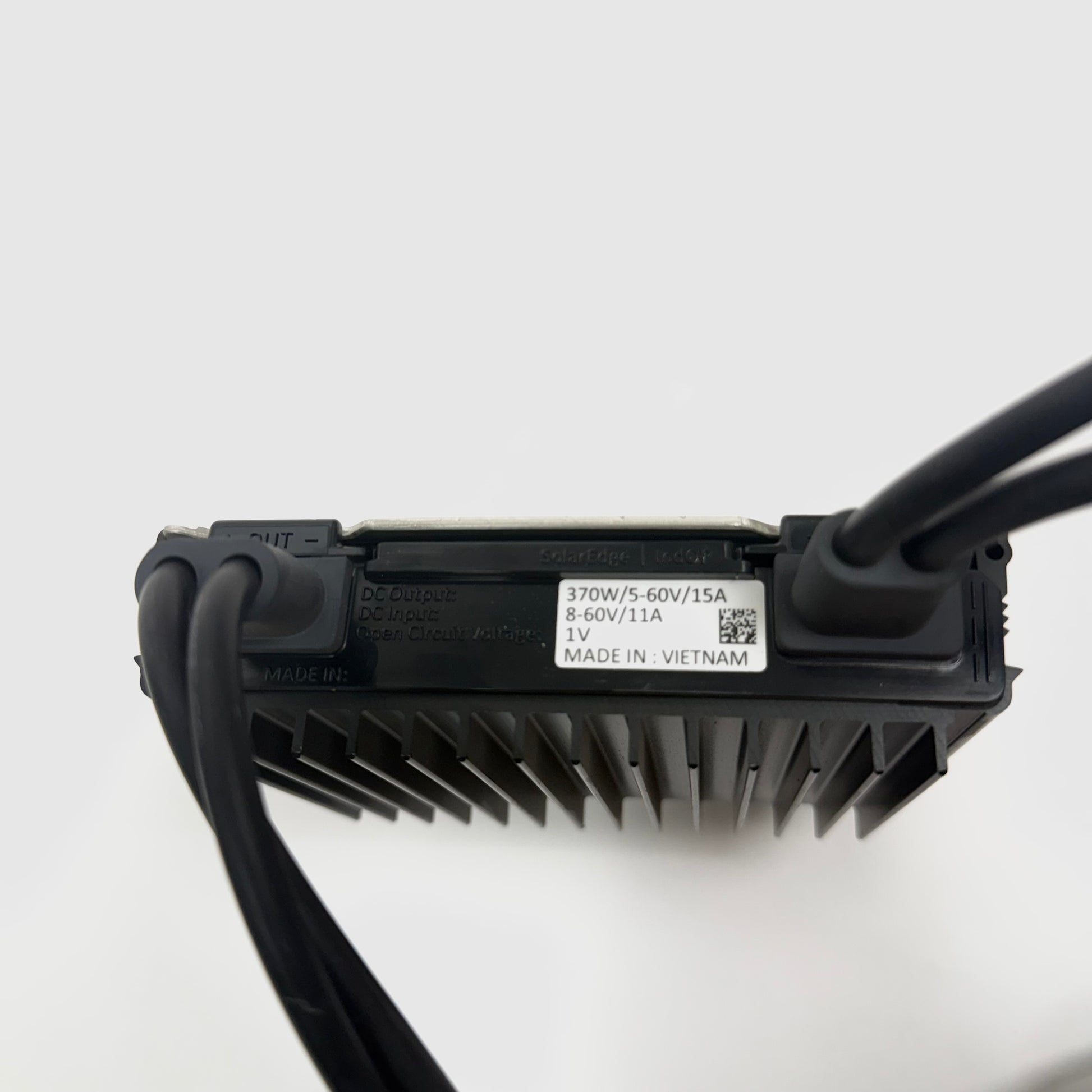

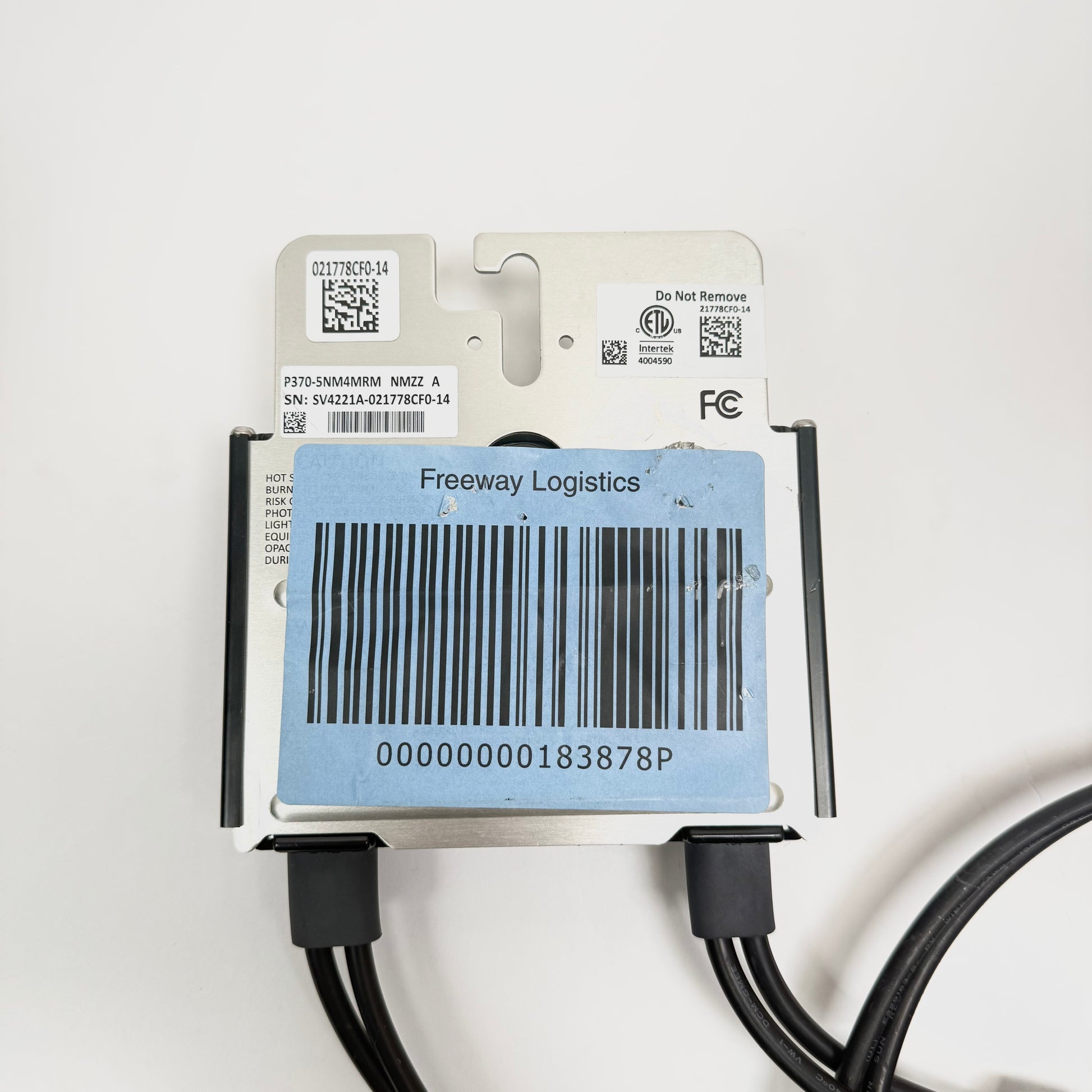

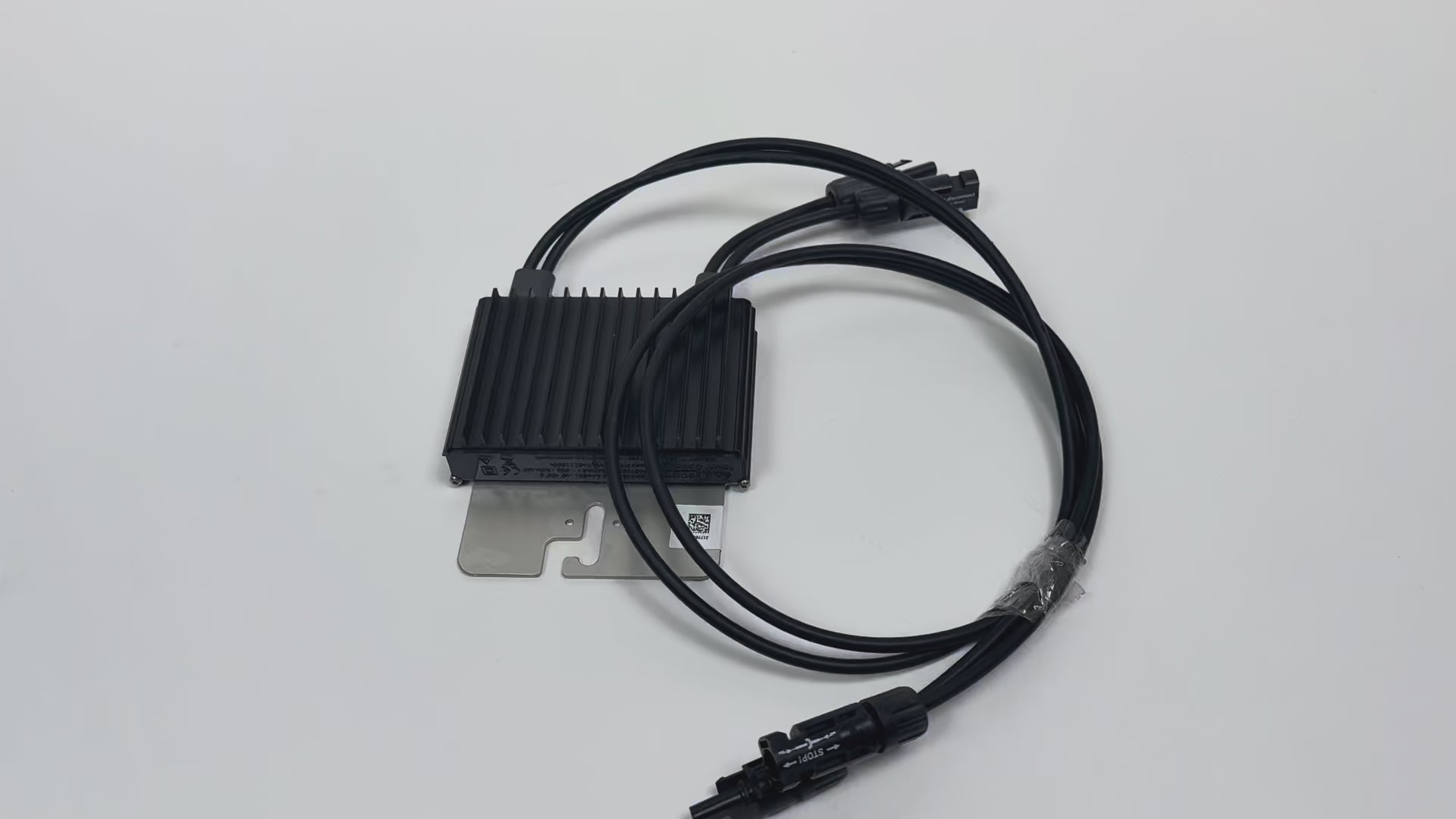

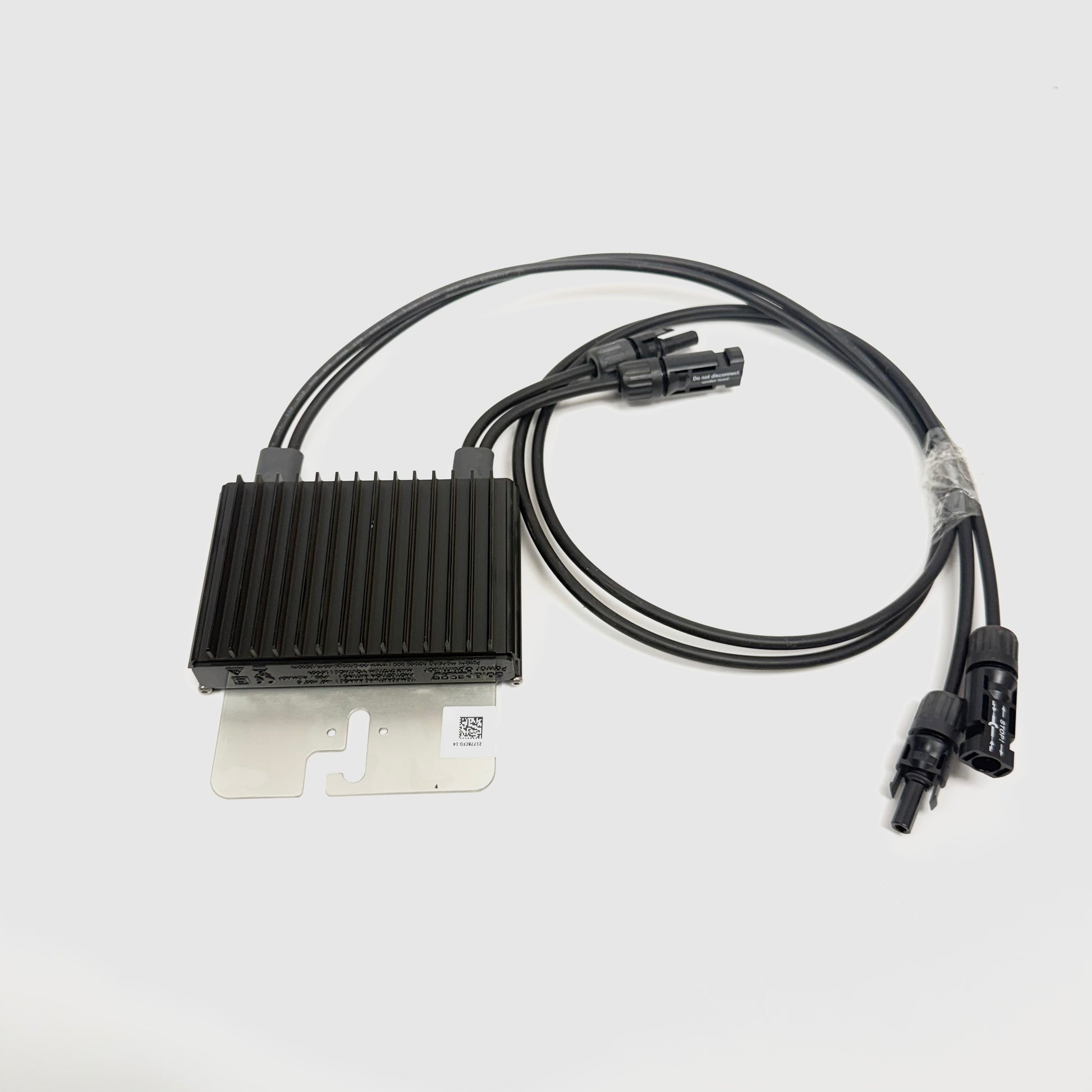

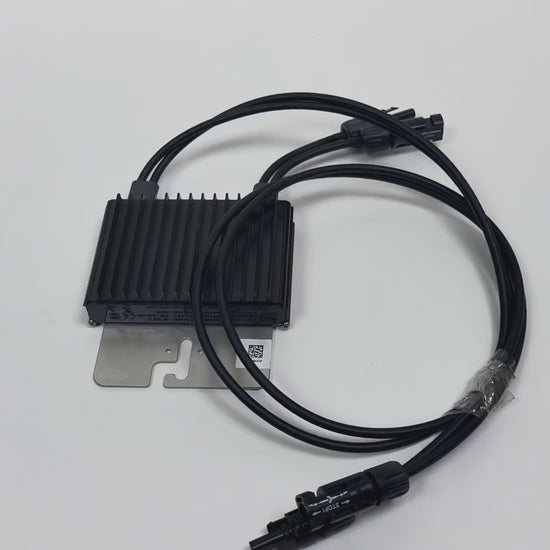

SolarEdge P370 Power Optimizer 370W 60V MC4 NMZZ IN=MC4 OUT=1.2M

The SolarEdge P370 Power Optimizer is a module-level DC power optimizer designed to increase energy production from individual photovoltaic solar panels when used as part of a compatible SolarEdge inverter system.

Installed directly at the solar module, the P370 provides individual maximum power point tracking (MPPT), allowing each panel to operate independently at its optimal power point. This helps reduce losses caused by shading, soiling, module mismatch, aging, and differences in panel orientation.

Specifications:

• Manufacturer: SolarEdge
• Model: P370
• Rated Input Power: 370W
• Maximum Input Voltage: 60V DC
• Designed primarily for 72-cell PV modules

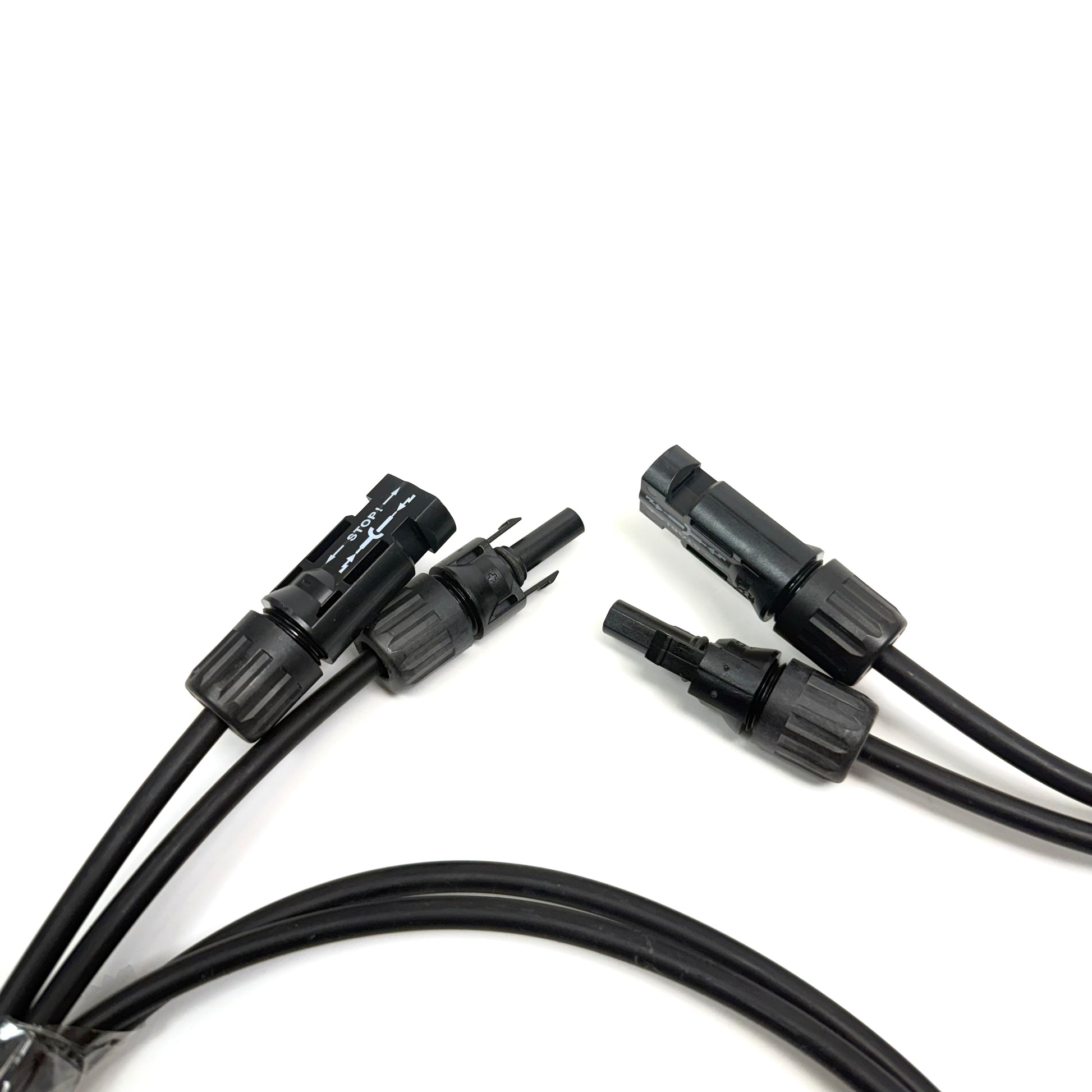

• Input Connector: MC4
• Output Cable Length: 1.2 meters
• Maximum Output Voltage: 60V DC
• Maximum Output Current: 15A
• Maximum Efficiency: 99.5%
• Weighted Efficiency: Approximately 98.8%
• Maximum System Voltage: 1000V DC
• Module-Level Maximum Power Point Tracking (MPPT)
• Module-Level Monitoring capability
• SolarEdge SafeDC safety functionality
• Designed for use with compatible SolarEdge inverters
