Solaredge Optimizer 340w/60v In=MC4 Out=1.8m NAM NM01

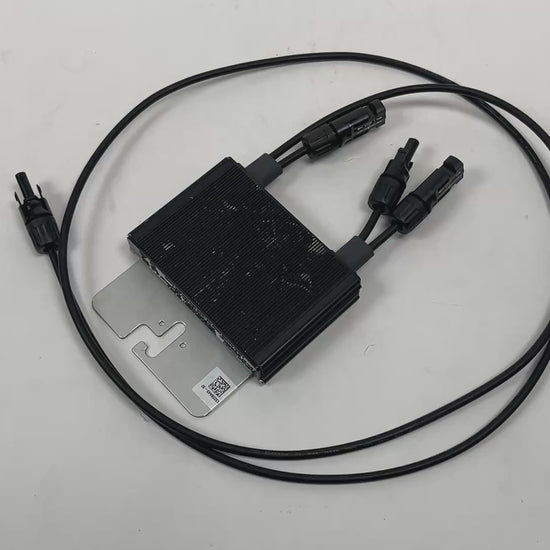

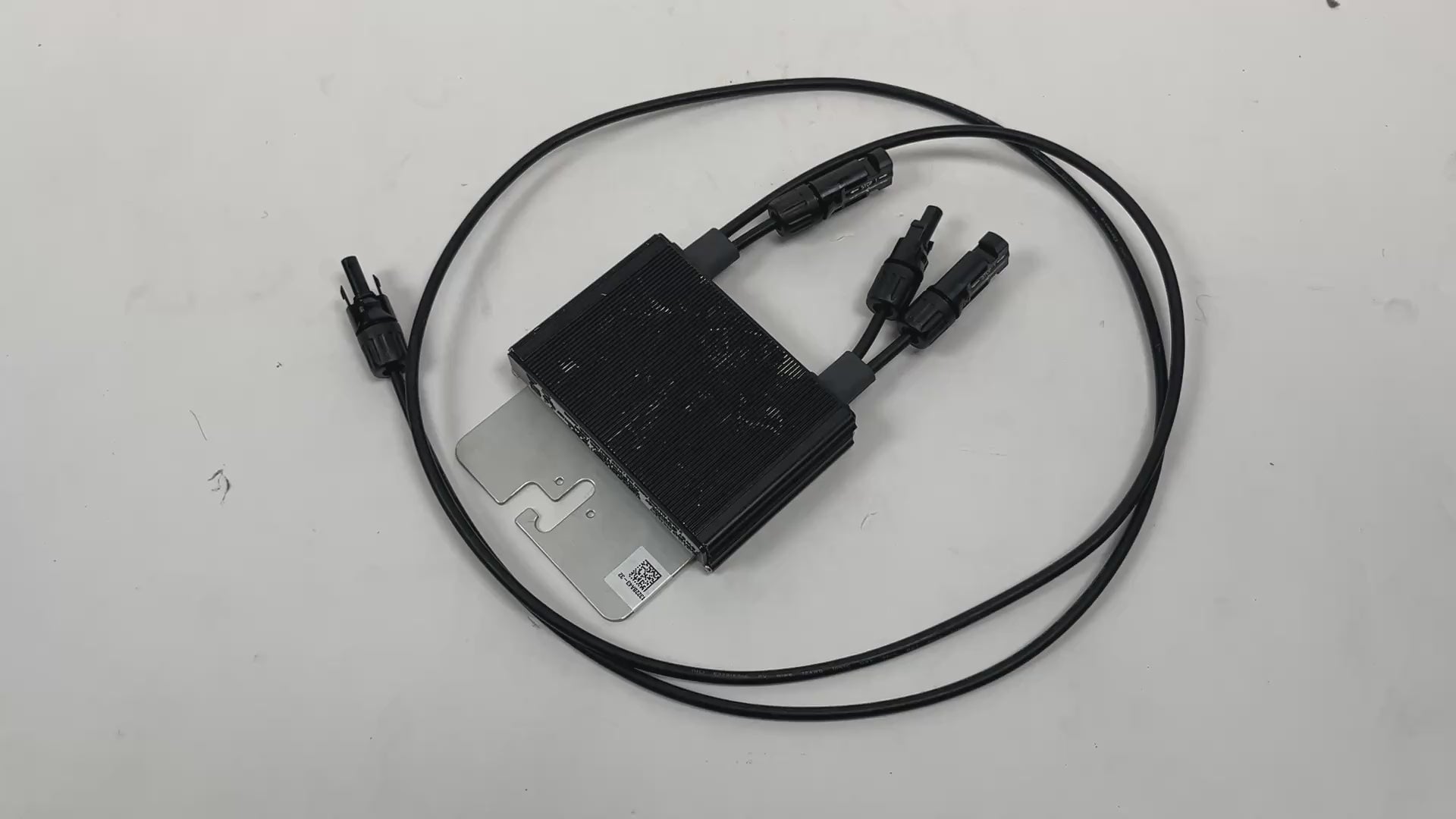

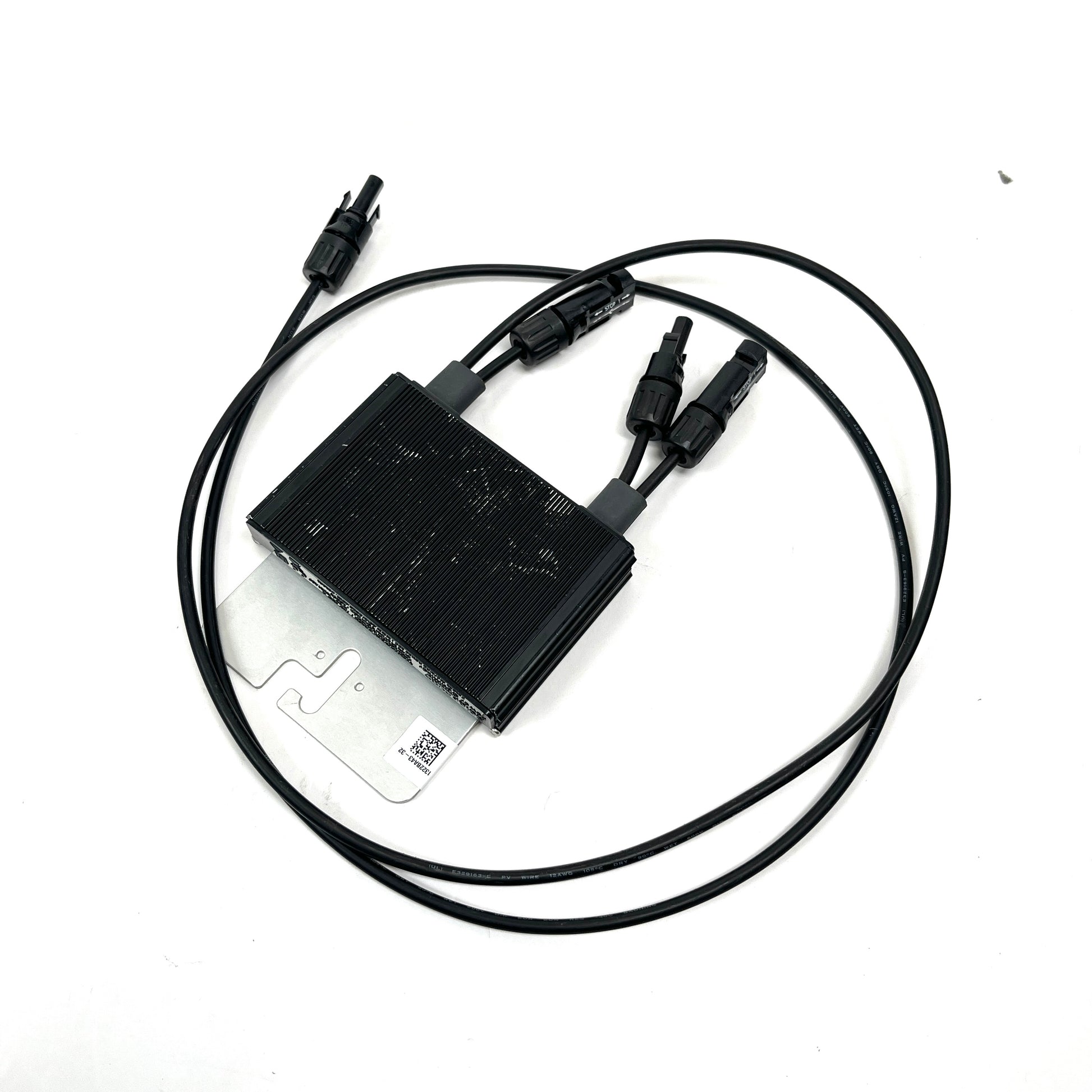

The SolarEdge P340 Power Optimizer is a module-level DC power optimizer designed for use with compatible SolarEdge inverter systems. Rated for photovoltaic modules up to 340 watts, the P340 provides individual maximum power point tracking (MPPT) at each solar panel to help maximize energy production throughout the PV system.

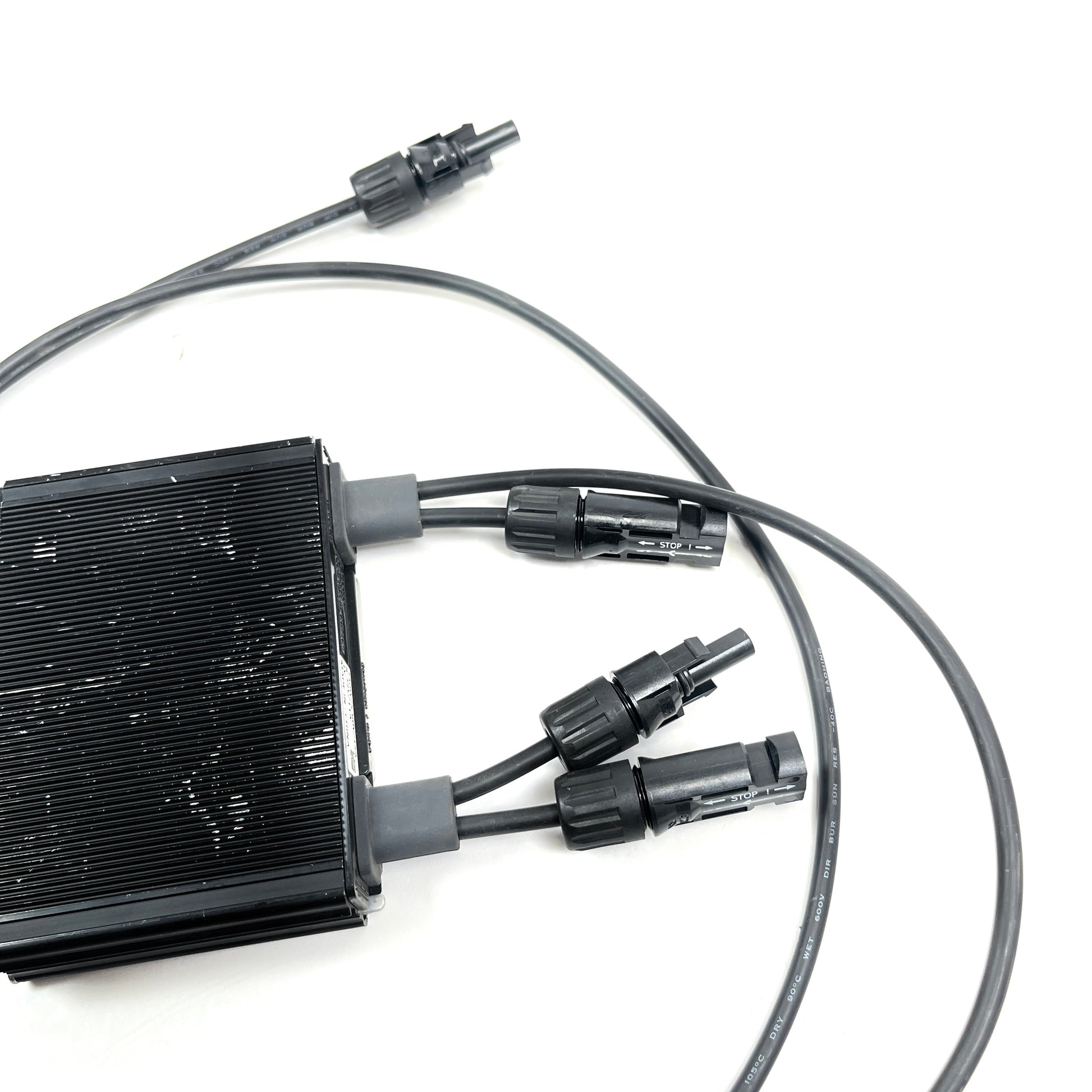

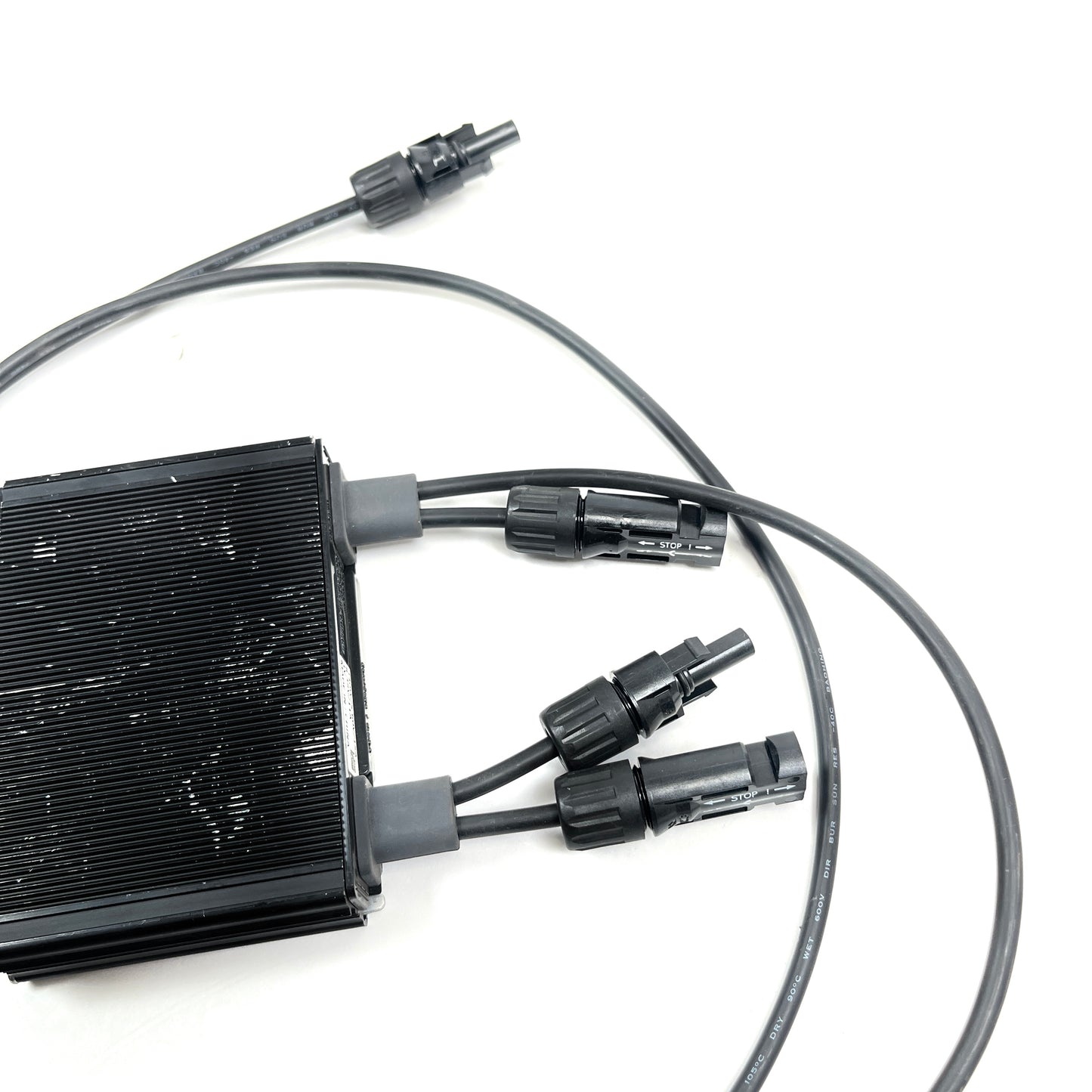

This particular configuration features MC4 input connections and a 1.8-meter output cable, providing additional cable length for installations where greater spacing between modules or connection points is required.

Specifications:

• Manufacturer: SolarEdge
• Model: P340
• Rated Input Power: 340W
• Maximum Input Voltage: 60V DC
• MPPT Operating Range: 8–60V DC
• Typical Application: High-Power 60-Cell Solar Modules
• Input Connector: MC4
• Output Cable Length: 1.8 Meter
• Maximum Output Current: 15A DC
• Maximum Output Voltage: 60V DC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Safety Output Voltage: Approximately 1V per optimizer
• Maximum System Voltage: 1000V DC
• Region: North America (NAM)

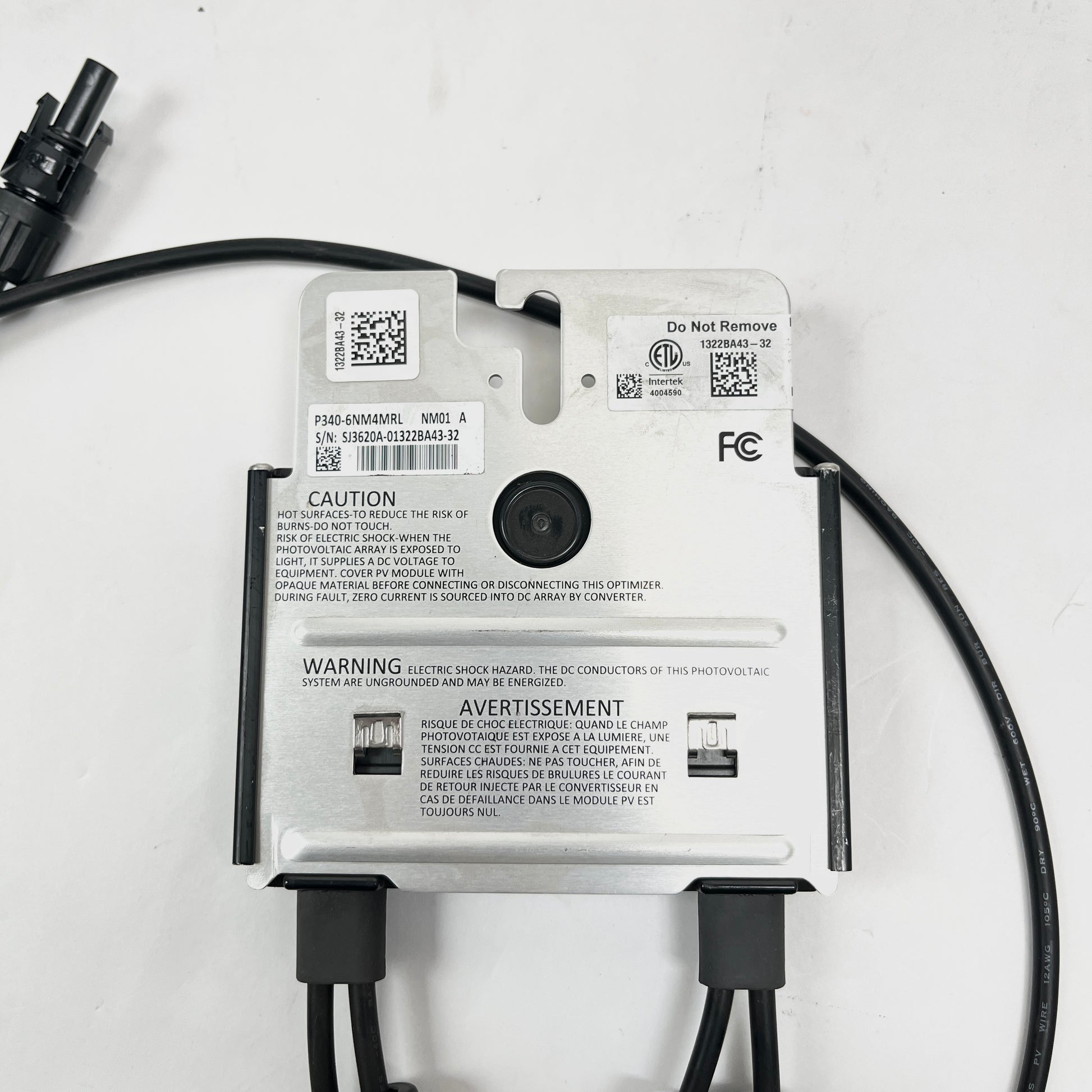

• Label / Configuration Code: NM01
• Designed for use with compatible SolarEdge inverters
