Solaredge Optimizer 340W/48V In= MC4 Out= .9m NA NN2C

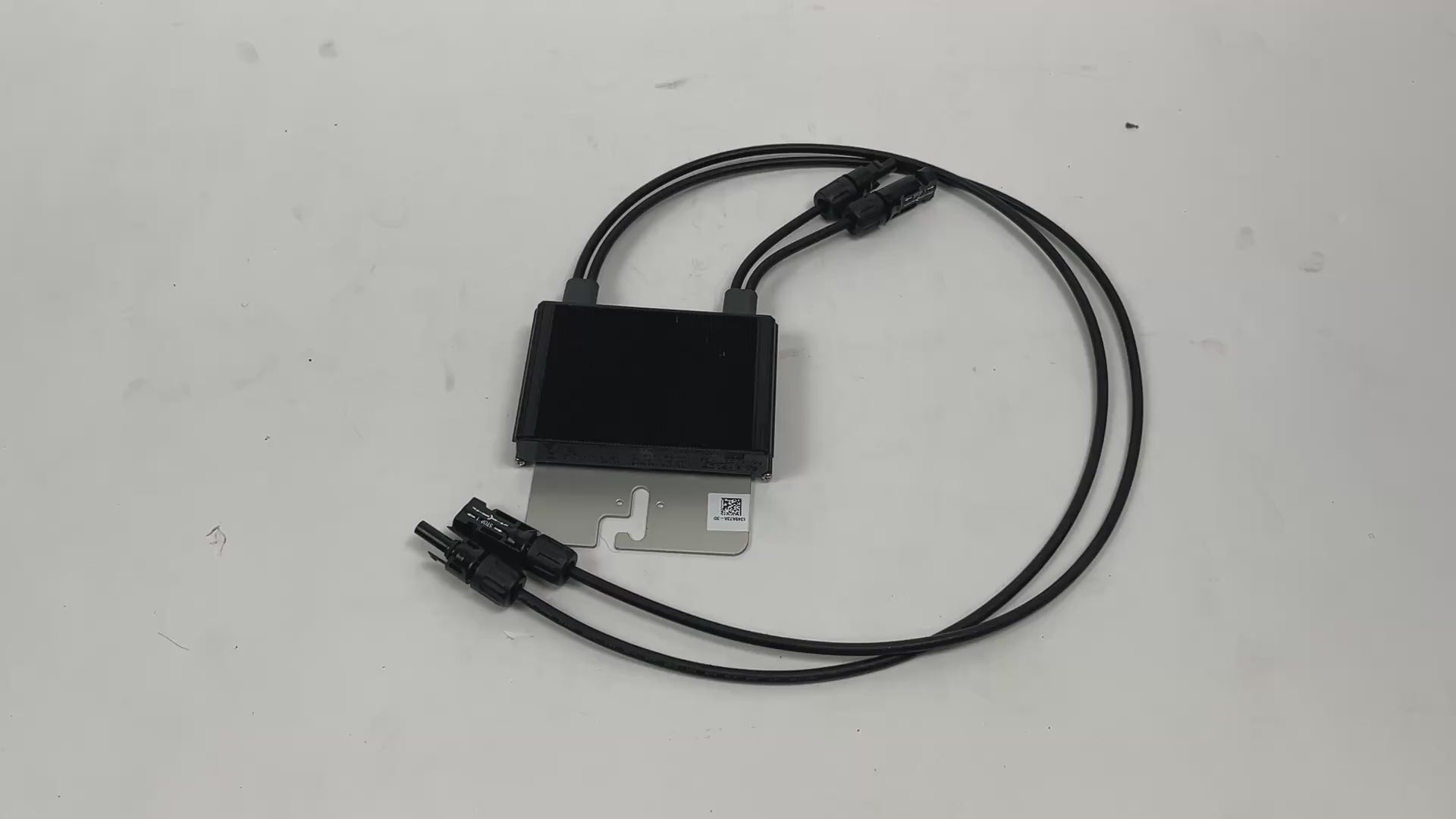

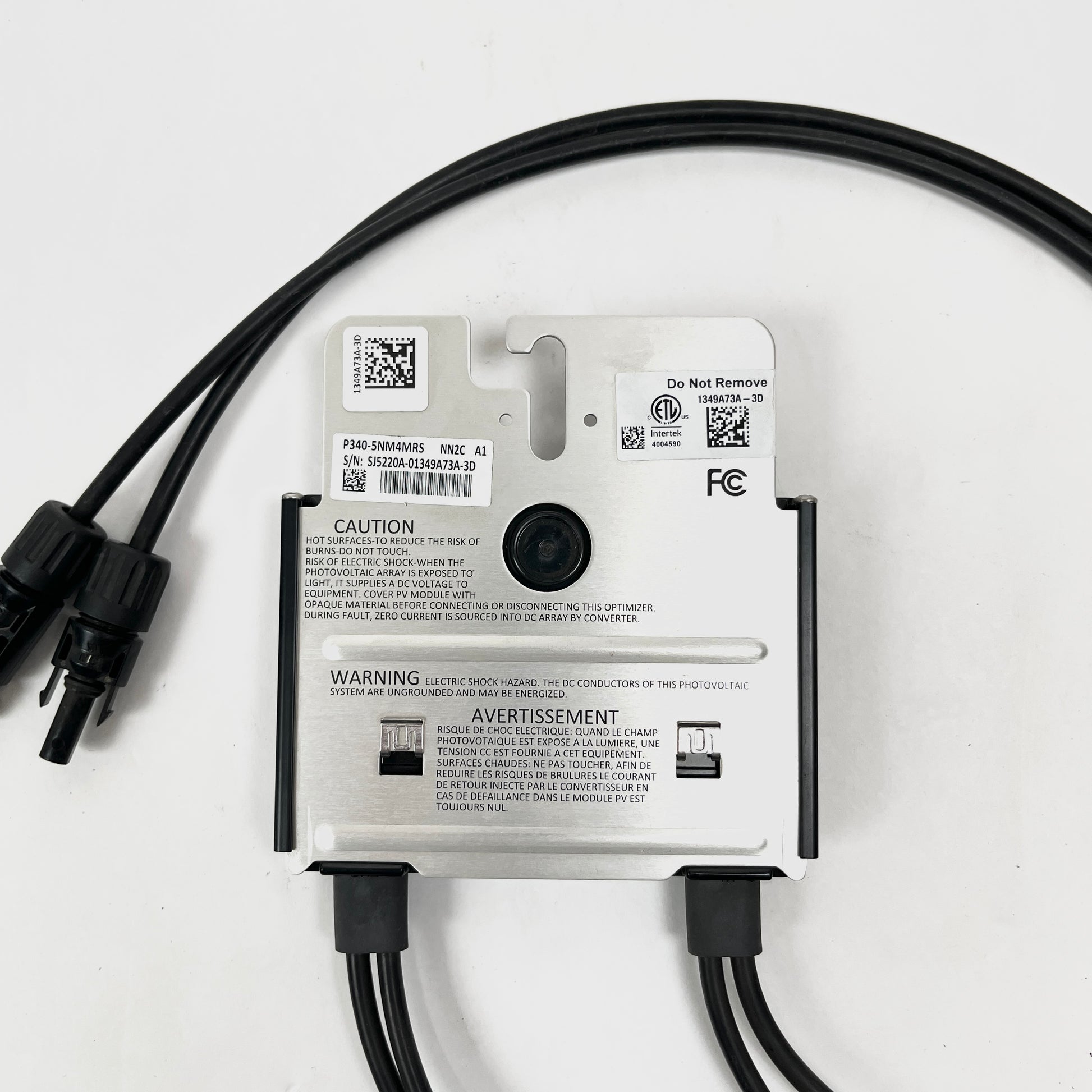

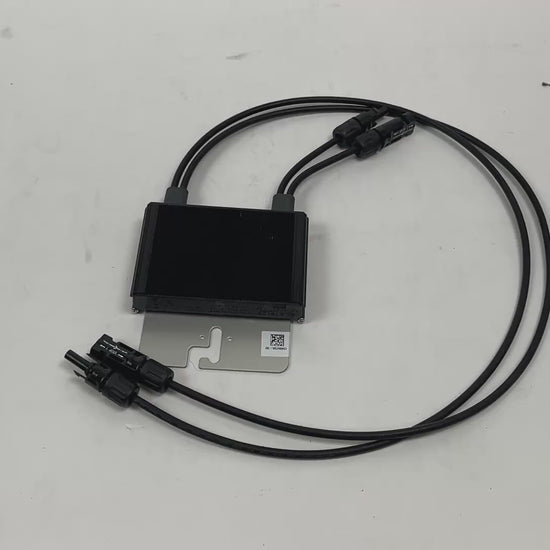

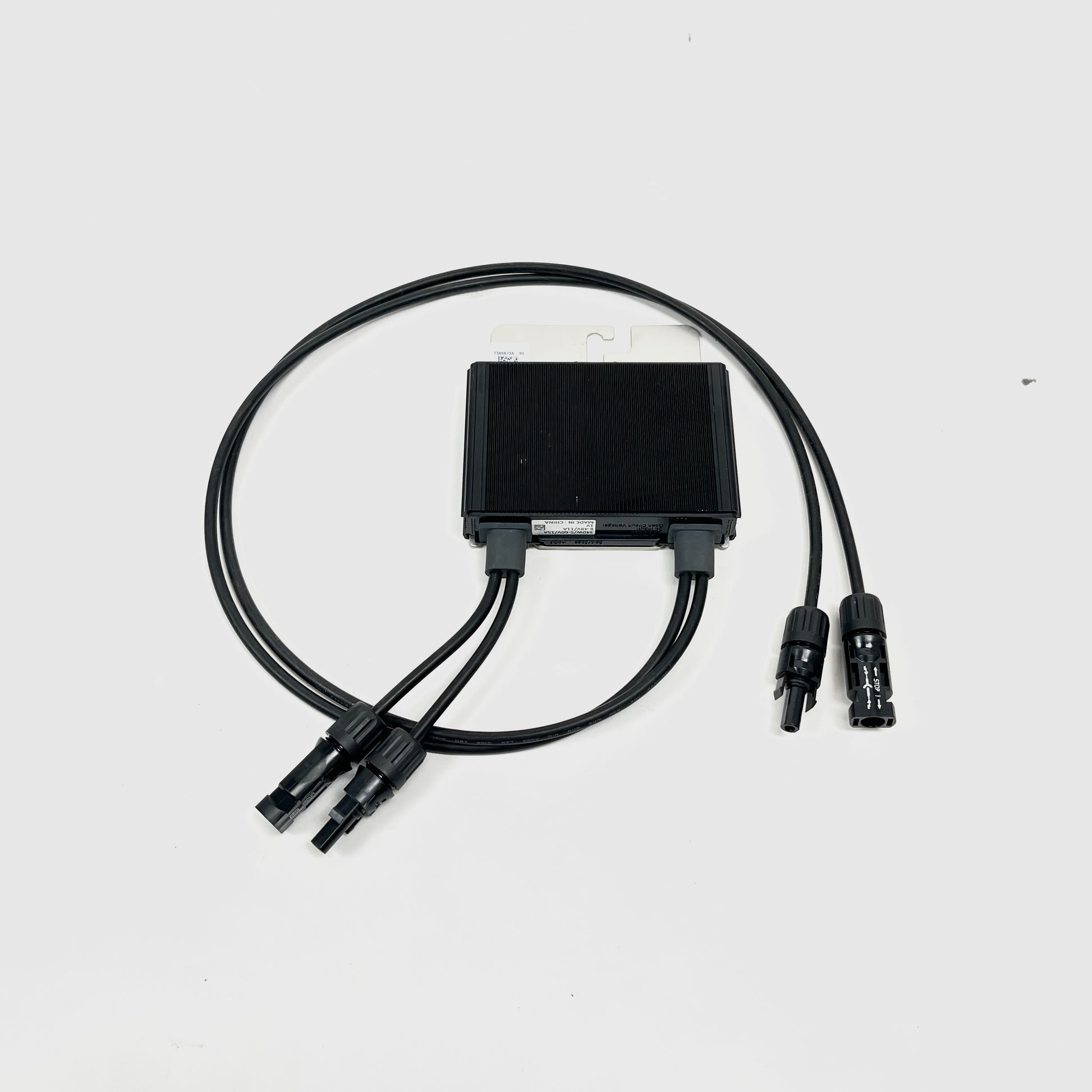

The SolarEdge P340 Power Optimizer is a module-level DC power optimizer designed for use with compatible SolarEdge inverter systems. Rated for solar modules up to 340 watts, the P340 provides individual maximum power point tracking (MPPT) at each solar panel to help maximize energy production from the photovoltaic array.

The P340 is designed primarily for high-power 60-cell solar modules and features a maximum input voltage of 60V DC. Module-level optimization helps reduce energy losses caused by partial shading, soiling, manufacturing tolerances, aging, and differences between individual solar panels.

Specifications:

• Manufacturer: SolarEdge
• Model: P340
• Rated Input DC Power: 340W
• Maximum Input Voltage: 60V DC
• MPPT Operating Range: 8–60V DC
• Typical Module Compatibility: High-Power 60-Cell Modules
• Input Connector: MC4
• Output Cable: 0.9 Meter
• Maximum Output Current: 15A DC
• Maximum Output Voltage: 60V DC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Safety Output Voltage: Approximately 1V per optimizer
• Maximum System Voltage: 1000V DC
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Protection Rating: IP68 / NEMA 6P
• Region: North America
• Application: Module-Level Solar PV Power Optimization
