SolarEdge P340 340W 48V Power Optimizer MC4 1.2M – NAM NAZZ

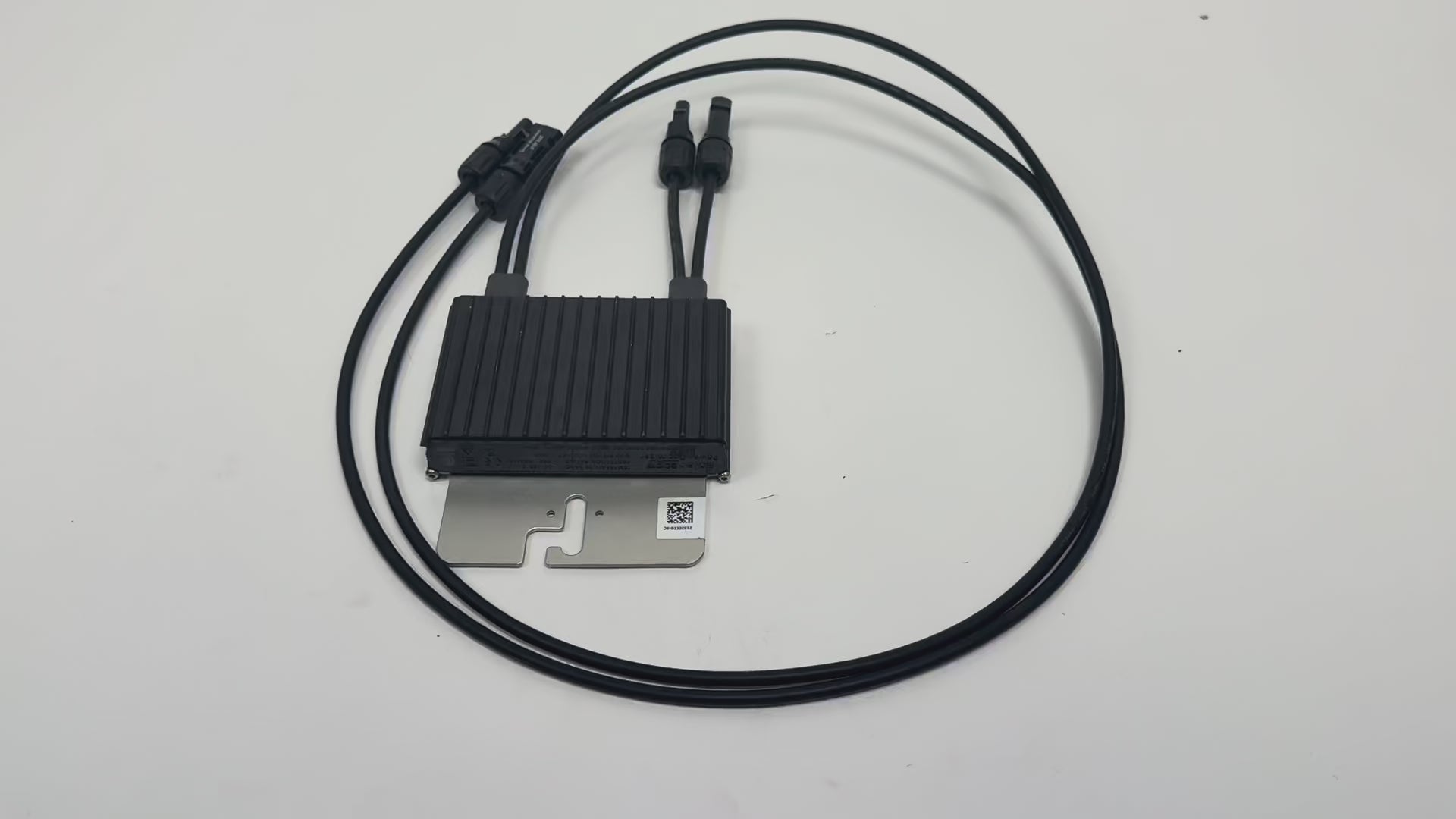

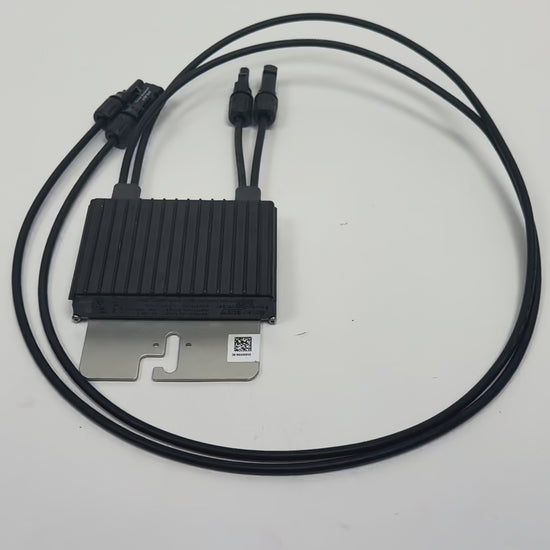

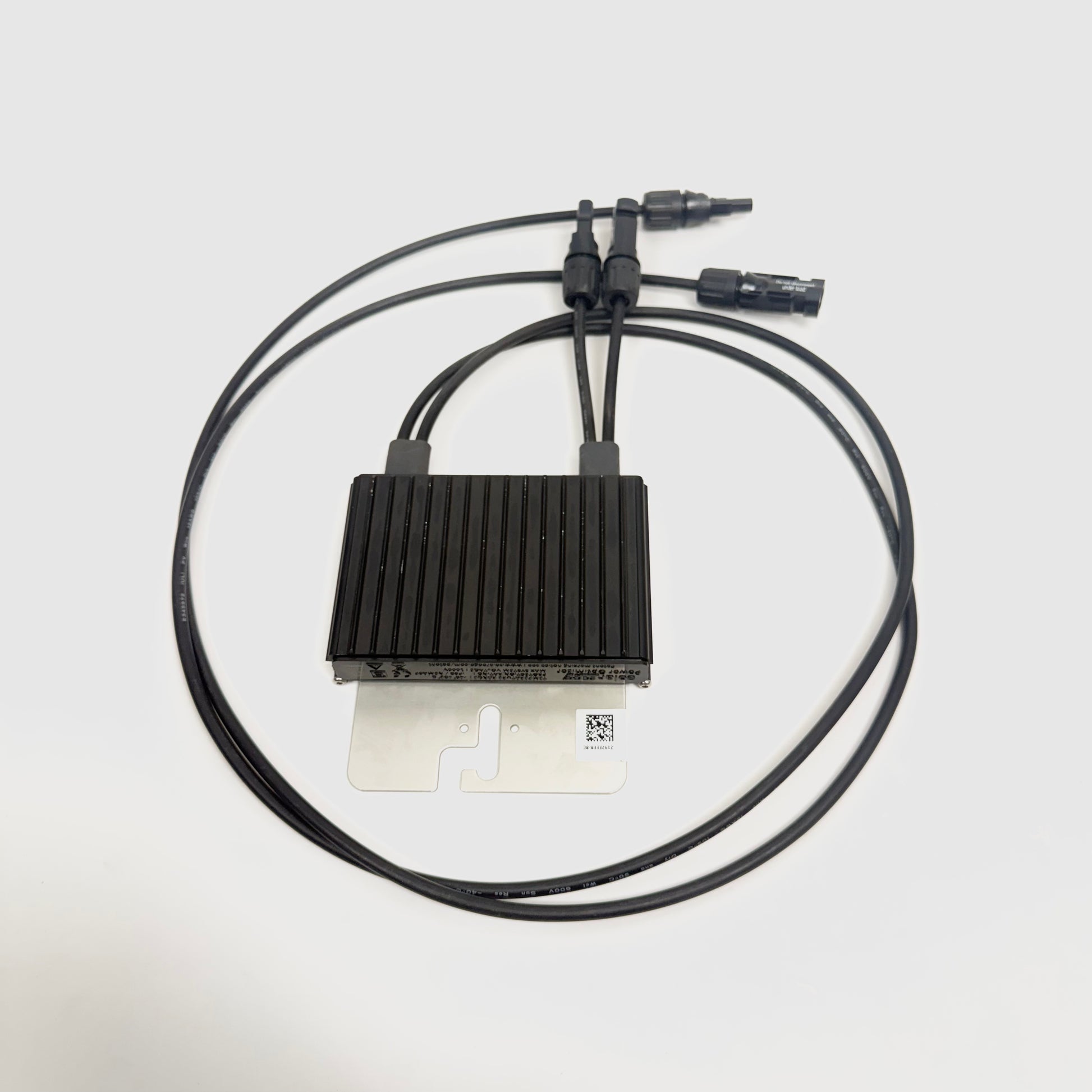

The SolarEdge P340 Power Optimizer is a module-level DC power optimizer designed for use with compatible SolarEdge inverter systems. It provides individual Maximum Power Point Tracking (MPPT) at the solar module level to maximize energy production and reduce losses caused by shading, module mismatch, soiling, aging, and variations in panel performance.

This North American configuration is rated for 340W modules, features MC4 connections, and has a 1.2-meter output cable.

Specifications:

• Manufacturer: SolarEdge
• Model: P340
• Rated Input Power: 340W
• Maximum Input Voltage: 48V DC
• MPPT Operating Range: 8–48V DC
• Maximum Short-Circuit Current: 11A
• Maximum Output Current: 15A DC
• Maximum Output Voltage: 60V DC
• Maximum Efficiency: 99.5%
• Weighted Efficiency: 98.8%
• Safety Output Voltage: 1V per optimizer

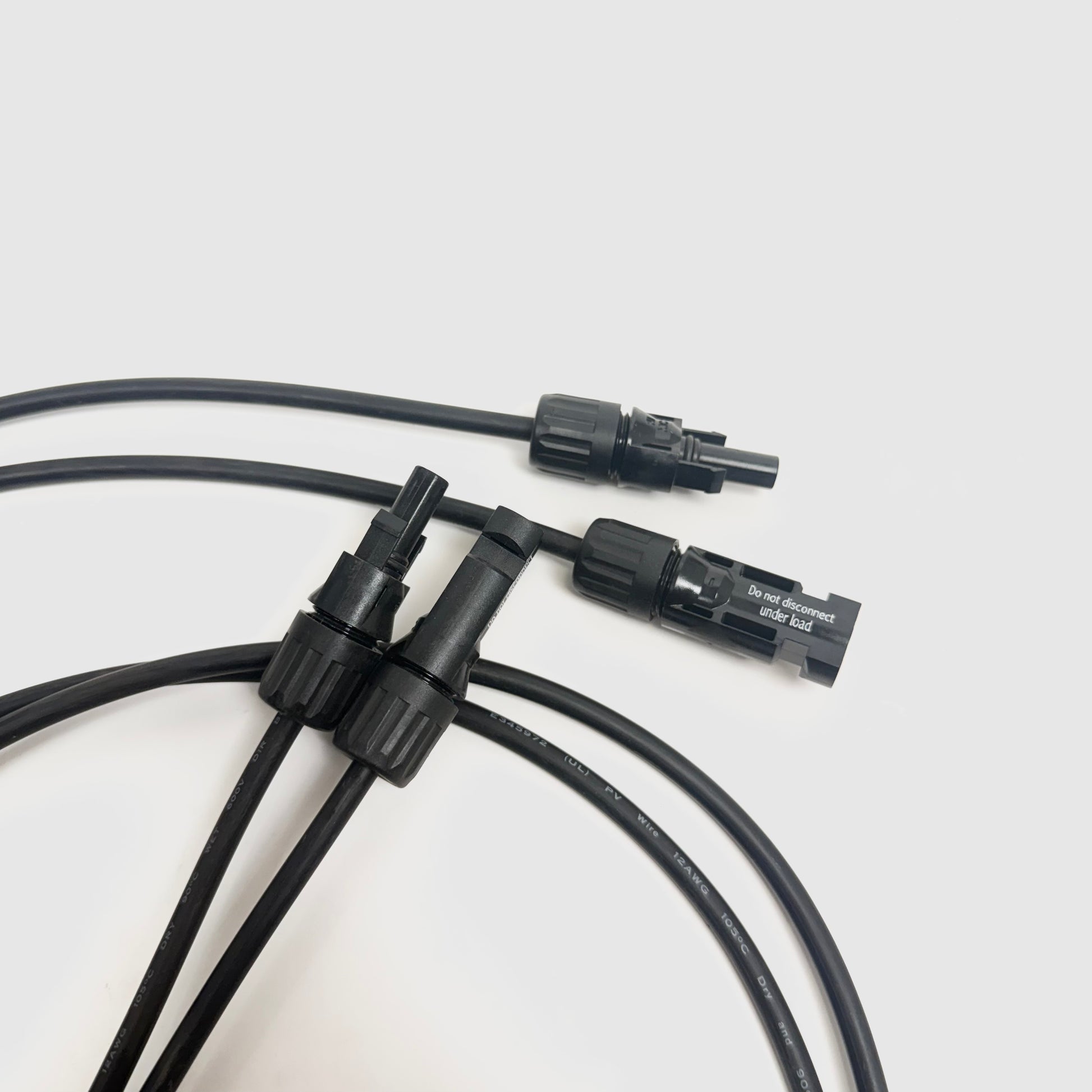

• Input Connector: MC4
• Output Cable Length: 1.2 Meter

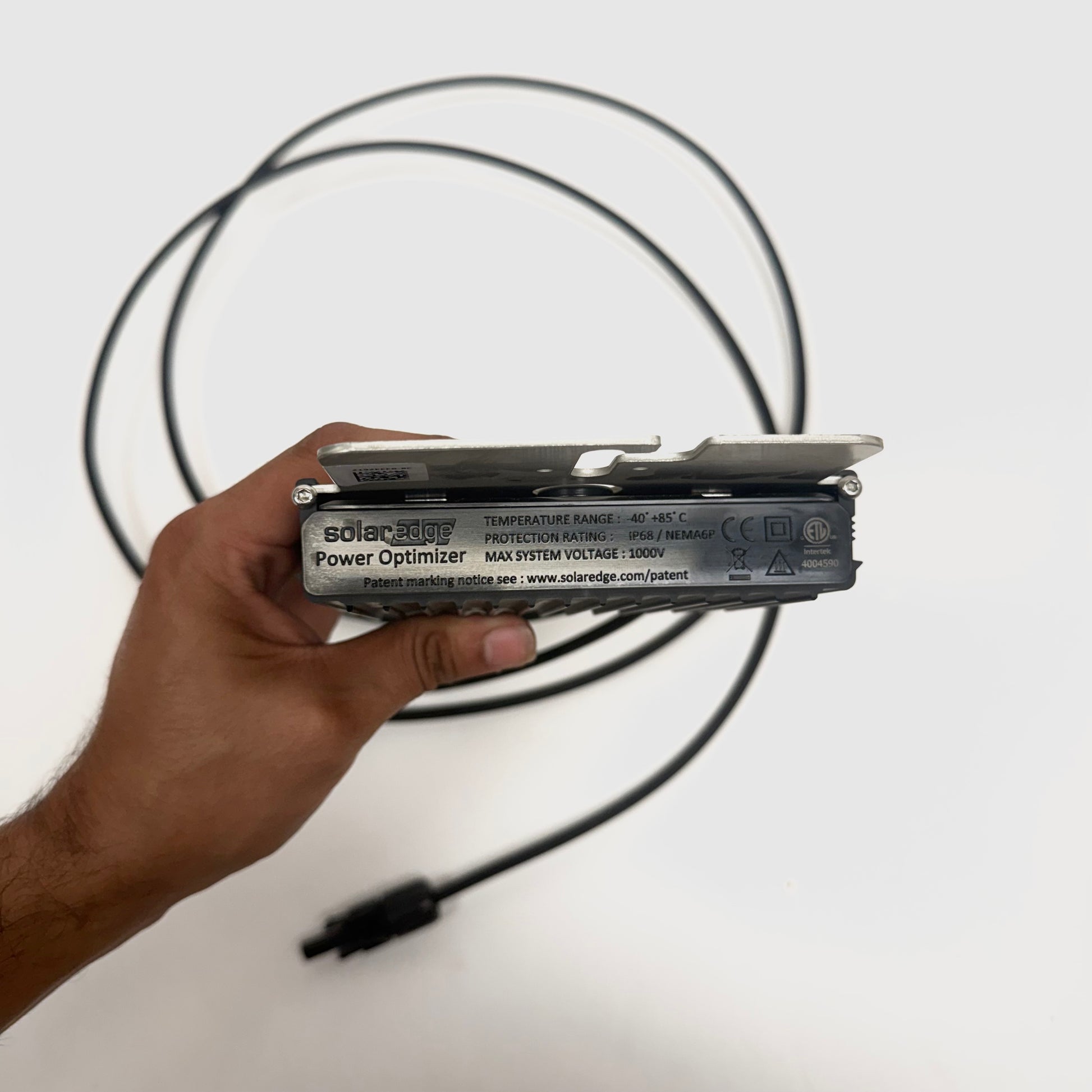

• Protection Rating: IP68 / NEMA 6P
• Region: North America (NAM)
• Configuration Code: NAZZ
• Product Type: Solar PV Power Optimizer
