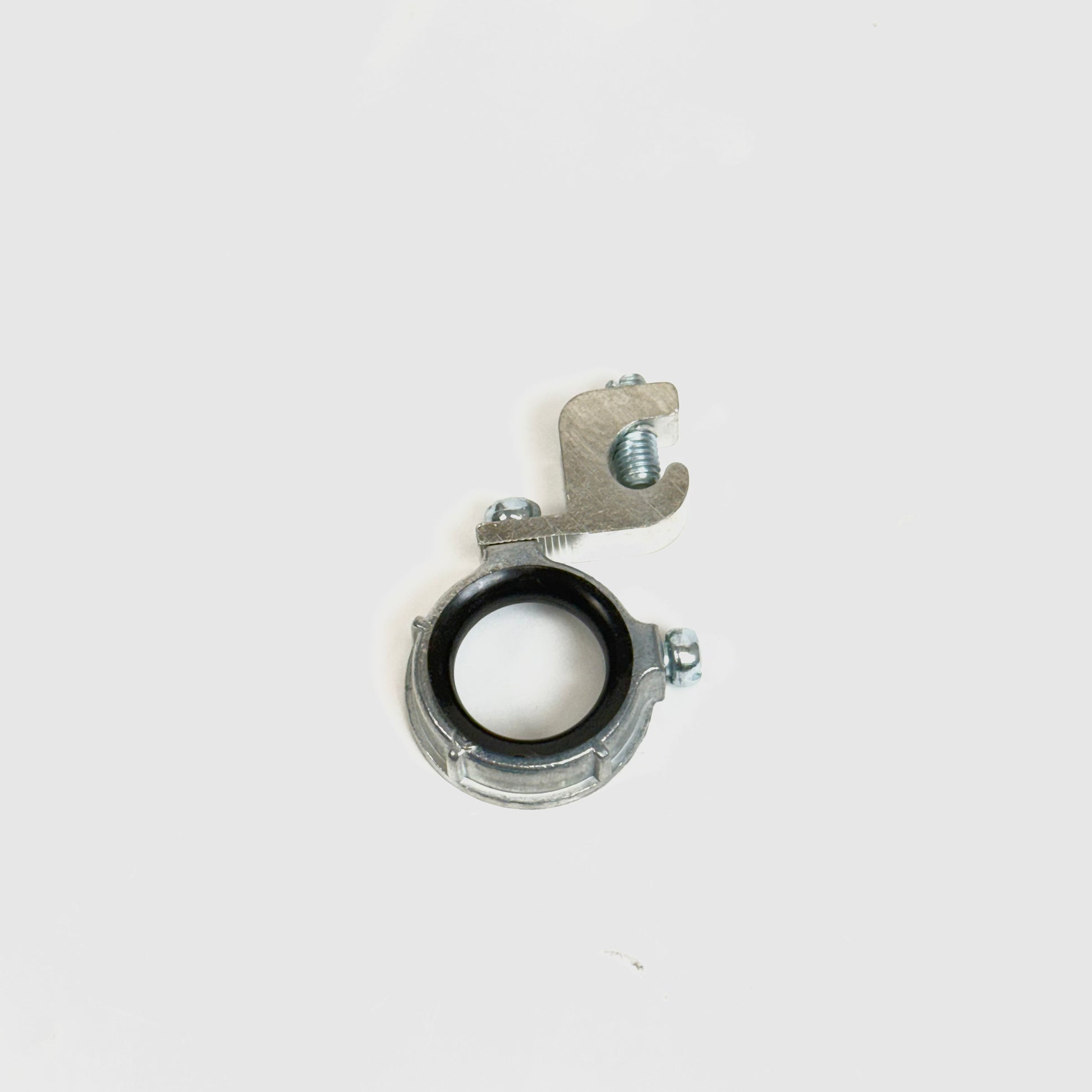

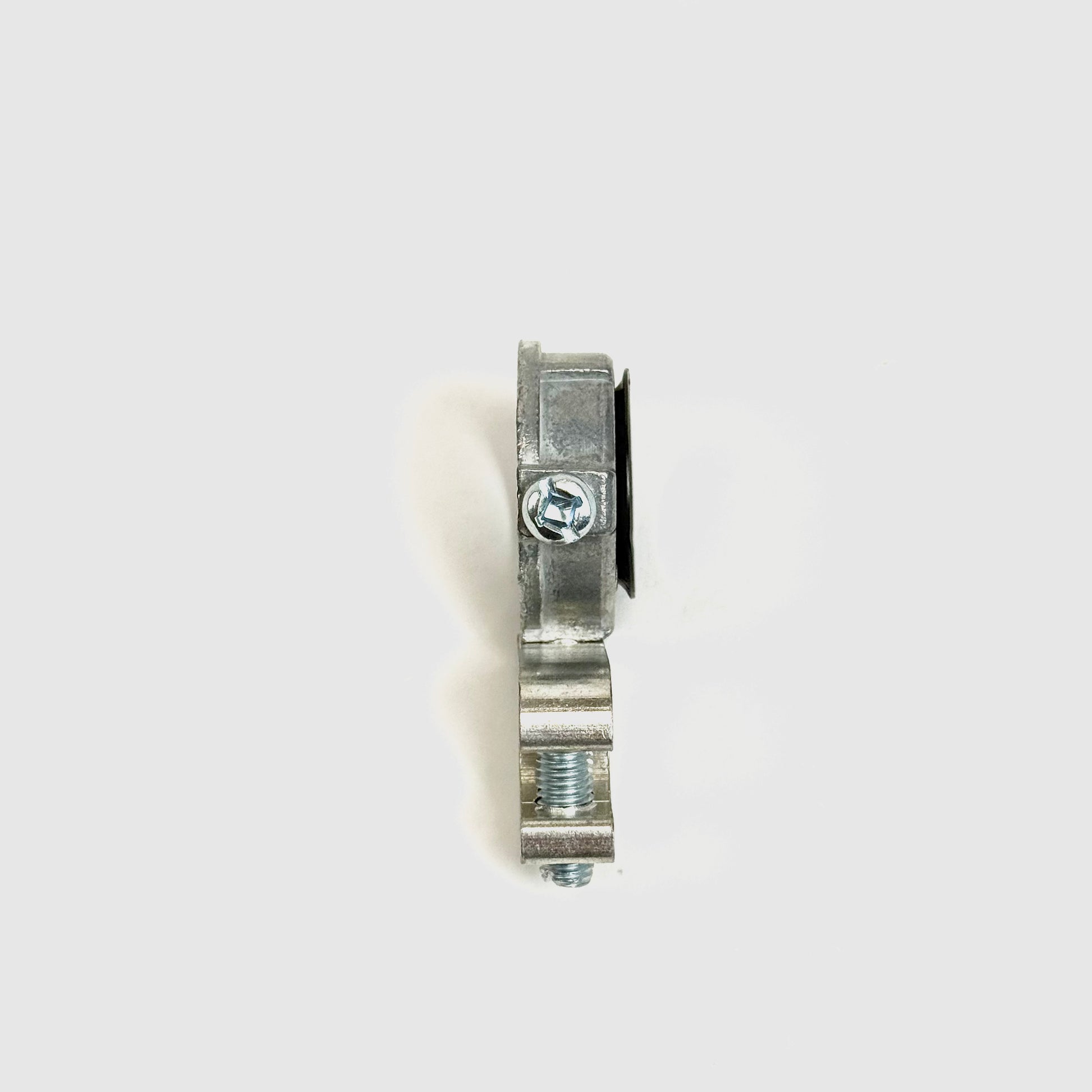

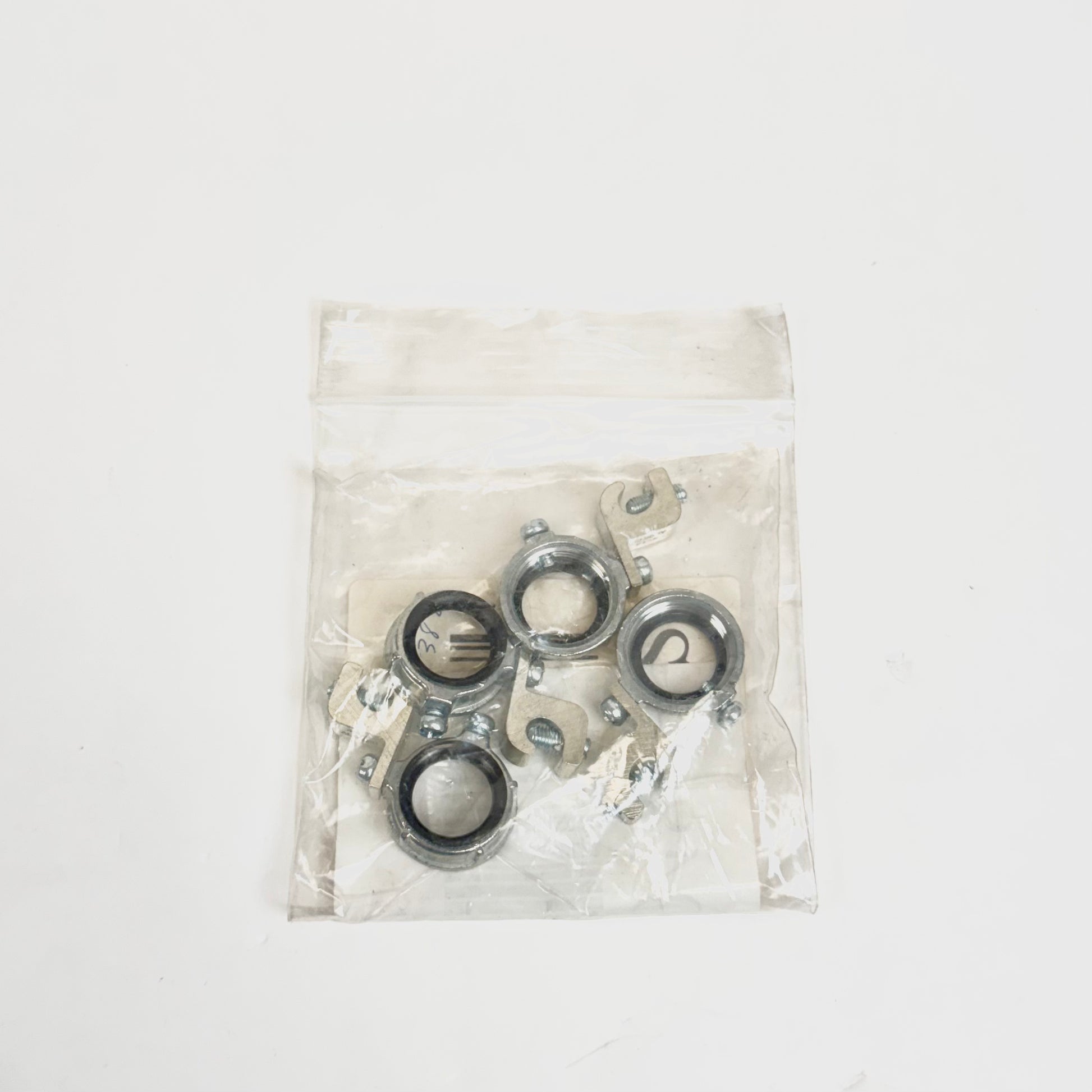

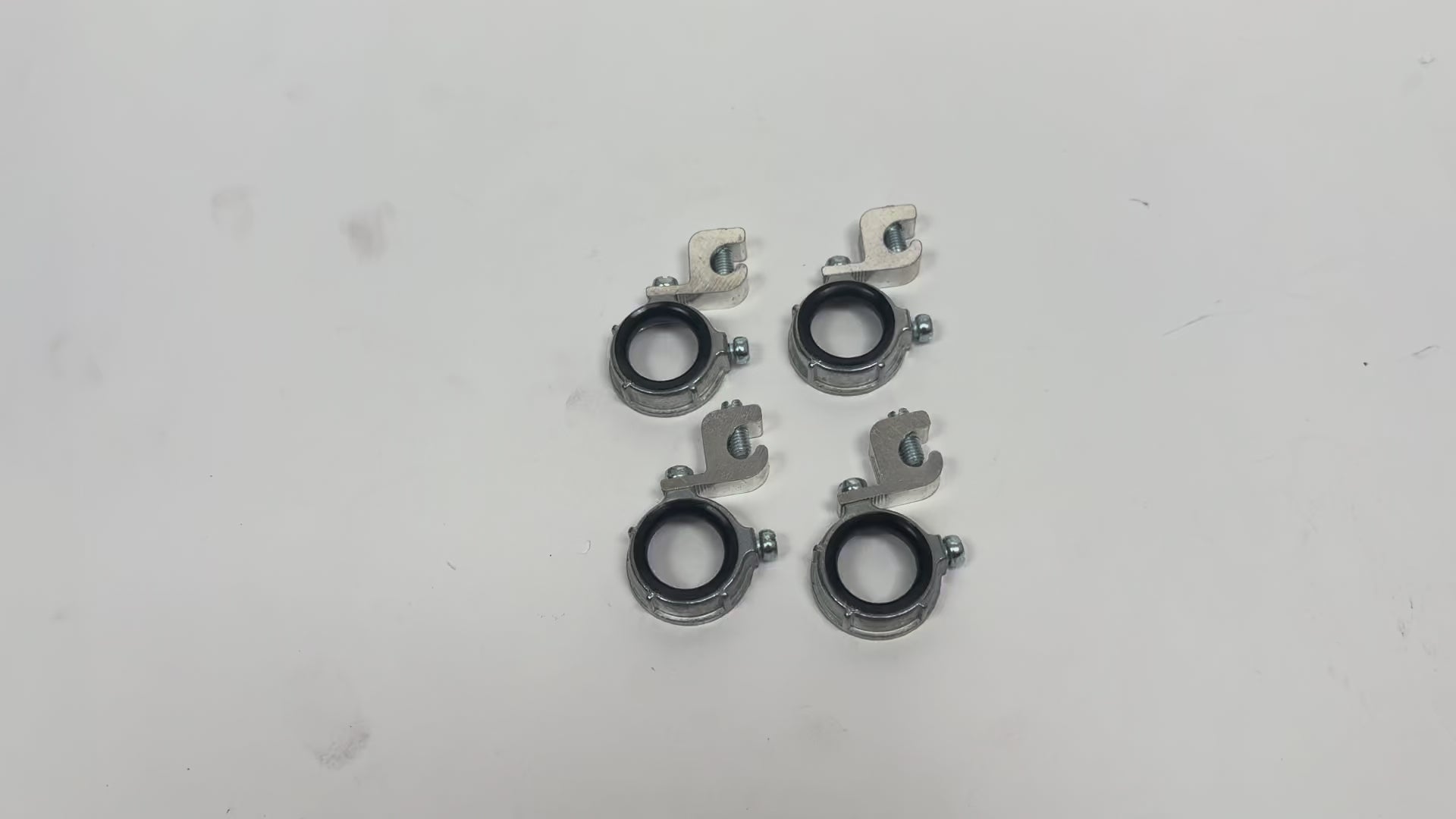

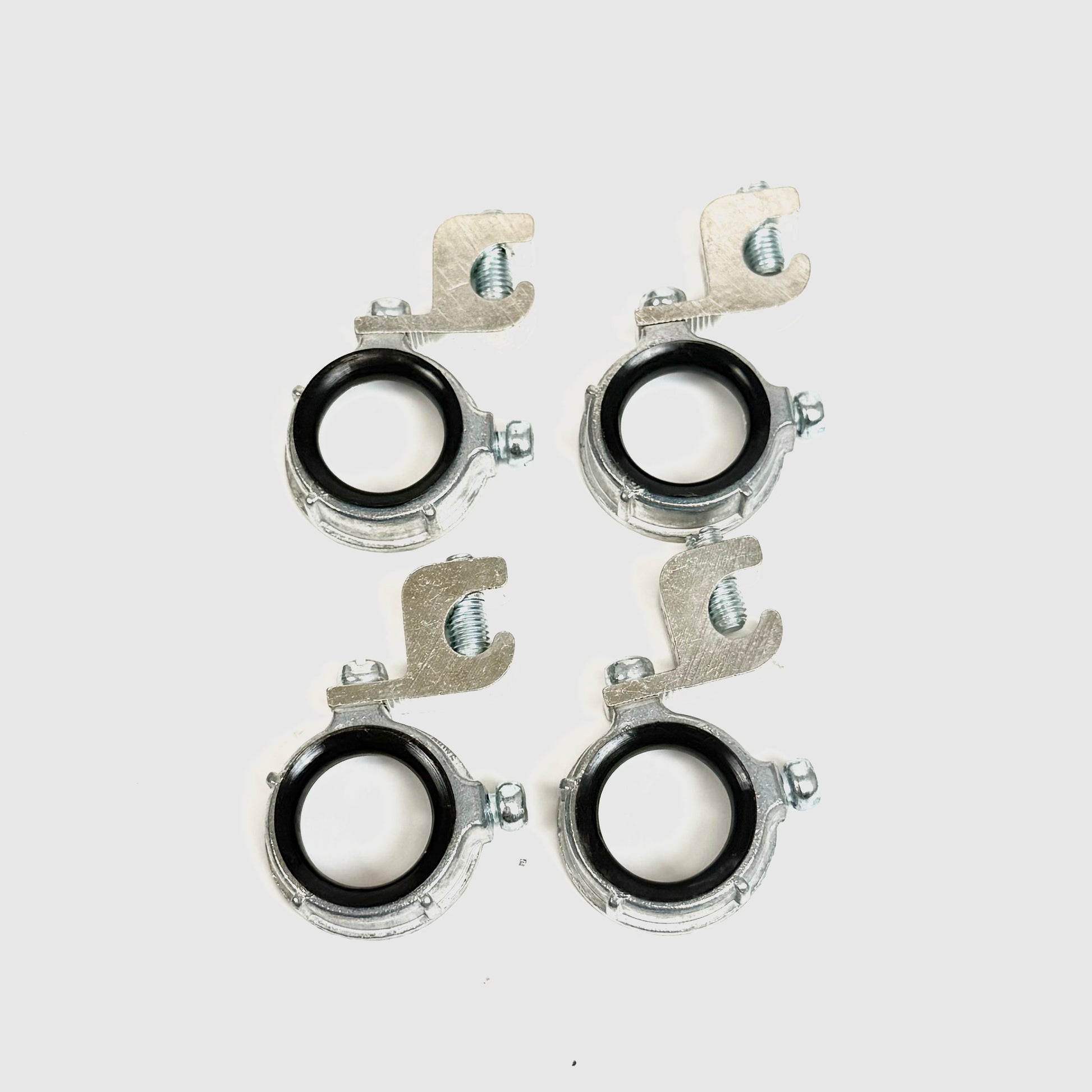

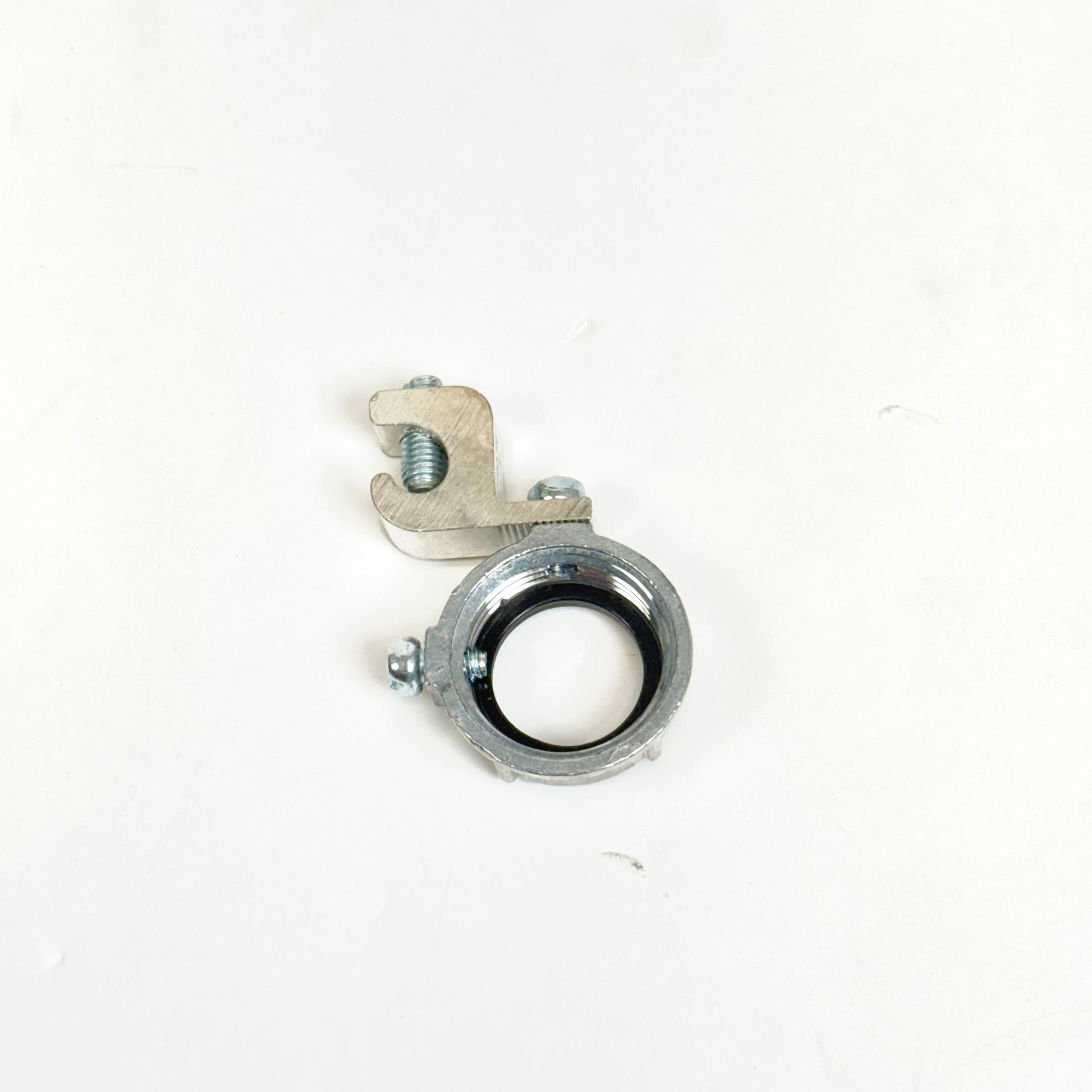

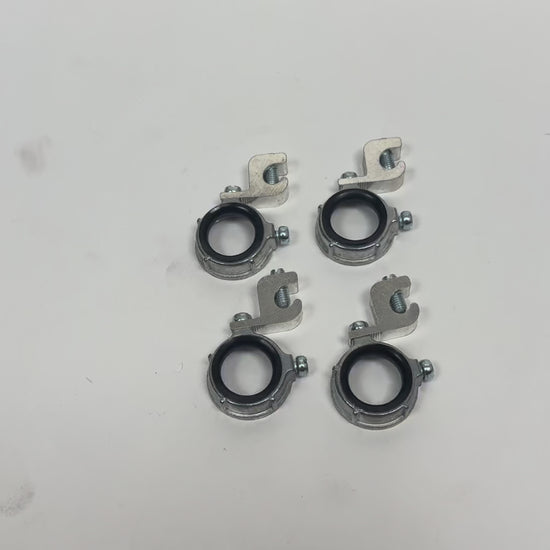

Bridgeport 382-DC 3/4" Zinc Die-Cast Insulated Grounding Bushing (set of 4)

The Bridgeport 382-DC Insulated Grounding Bushing is a heavy-duty electrical conduit fitting designed to terminate threaded rigid or IMC conduit at an electrical cabinet while providing both conductor protection and a secure grounding/bonding connection.

The bushing features a durable zinc die-cast body, an insulated plastic liner to help prevent damage to conductor insulation, and a tin-plated aluminum grounding lug for connecting a bonding jumper to the neutral or grounding bus.

Specifications:

• Manufacturer: Bridgeport Fittings
• Model / Catalog Number: 382-DC
• UPC: 781747093820
• Product Type: Insulated Grounding Bushing
• Trade Size: 3/4 Inch
• Material: Zinc Die Cast
• Grounding Lug Material: 6061-T6 Aluminum Alloy
• Grounding Lug Finish: Tin Plated
• Ground Wire Capacity: #14 to #4 AWG
• Insulated: Yes
• Temperature Rating: 150°C
• Inside Diameter: 13/16"
• Outside Diameter: 1-5/16"
• Width: 7/16"
• UL Standard: UL 514B
• NEMA Standard: FB-1
• UL File: E20412
