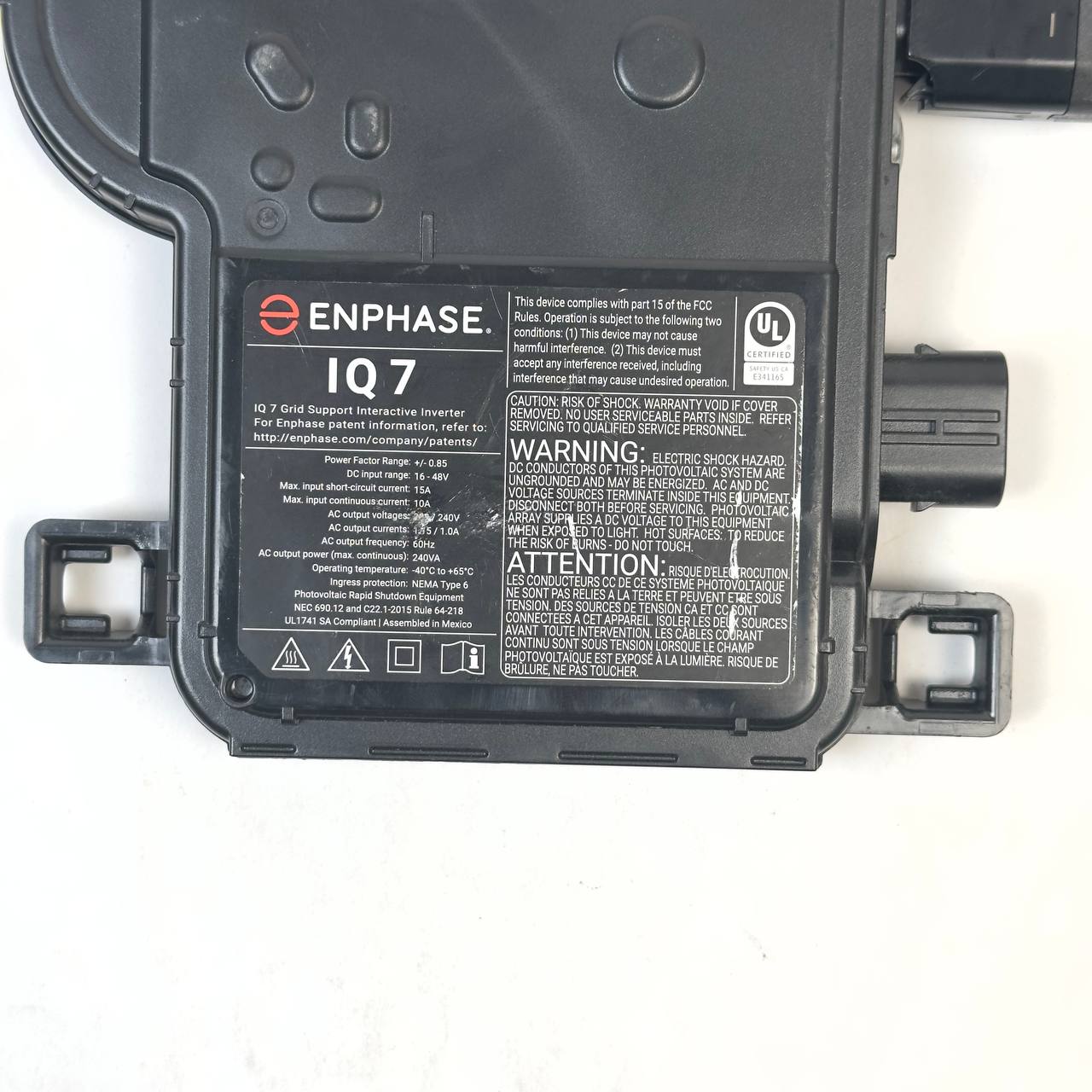

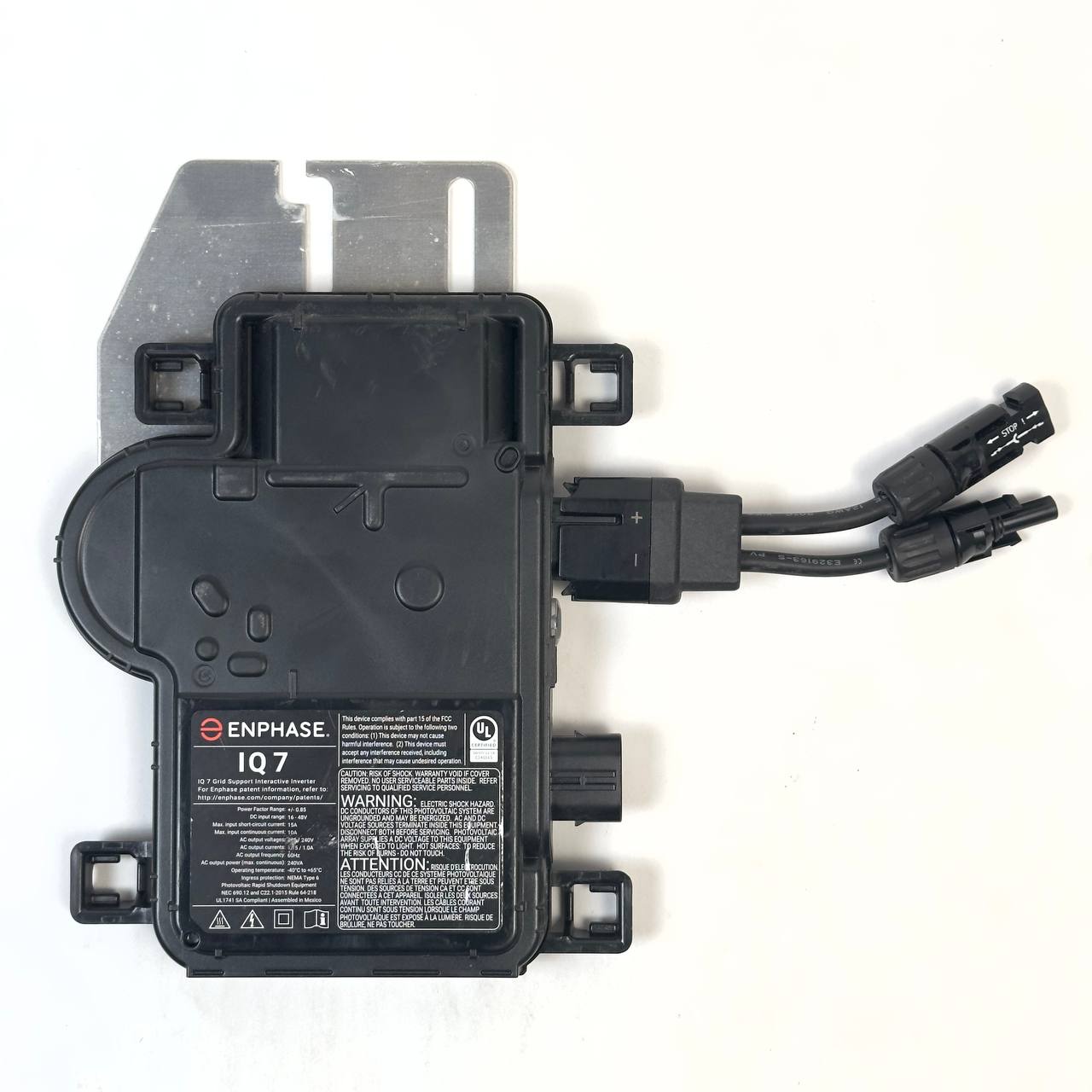

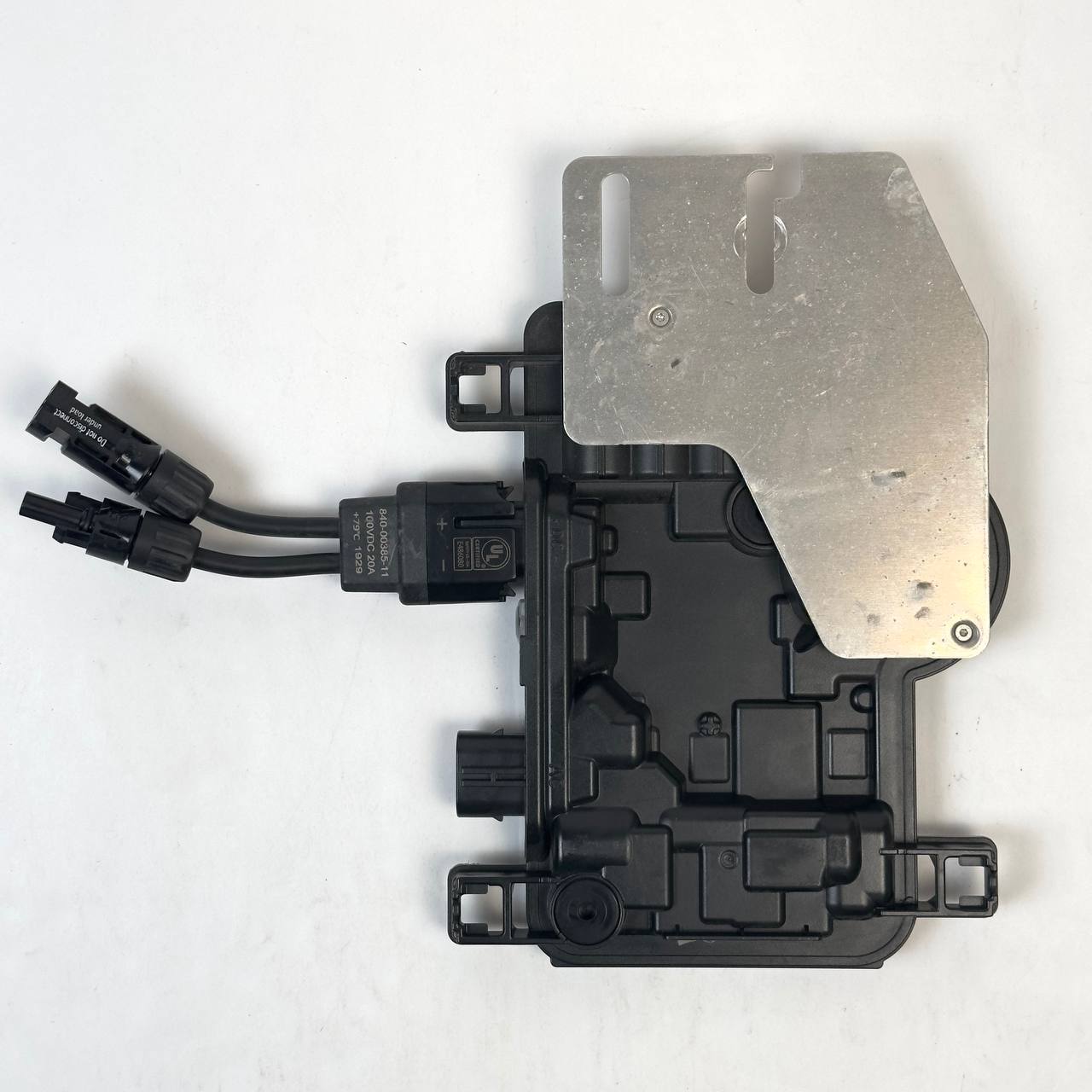

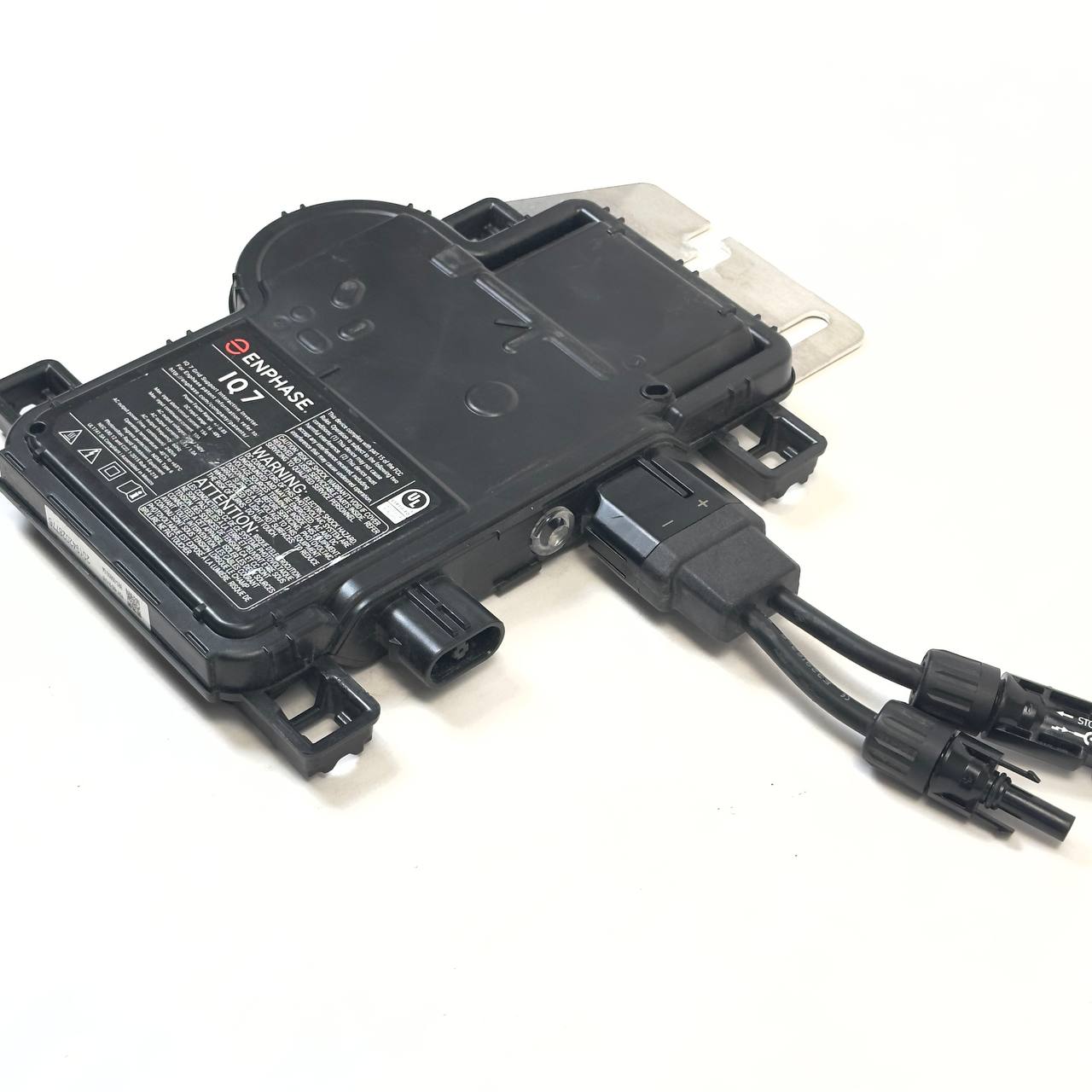

Enphase Solar Micro Inverter IQ7-60-2-US USED

The Enphase IQ7-60-2-US is a seventh-generation microinverter engineered for residential solar systems using 60-cell photovoltaic modules. It converts DC power from a single solar panel into grid-compliant AC power at the module level, improving system efficiency, flexibility, and monitoring.

• Type: Grid-tied microinverter (module-level power electronics)
• Application: Residential solar PV systems
• Panel compatibility: 60-cell modules (235W–350W+)
• System integration: Works within the Enphase IQ ecosystem (IQ Gateway, Enlighten monitoring, IQ Battery)

• High efficiency & performance

  • Peak output power: ~250 VA
  • CEC efficiency: ~97–97.5%
  • MPPT voltage range: 27V–37V
  • Optimized for high-power 60-cell modules

  🔹 Smart grid ready

  • Supports advanced grid functions (voltage/frequency ride-through)
  • Remote firmware updates for evolving utility requirements
  • Compliant with UL 1741 SA / Rule 21 grid standards

  🔹 Easy installation

  • Lightweight, compact design (~2.38 lbs)
  • Simplified two-wire cabling system

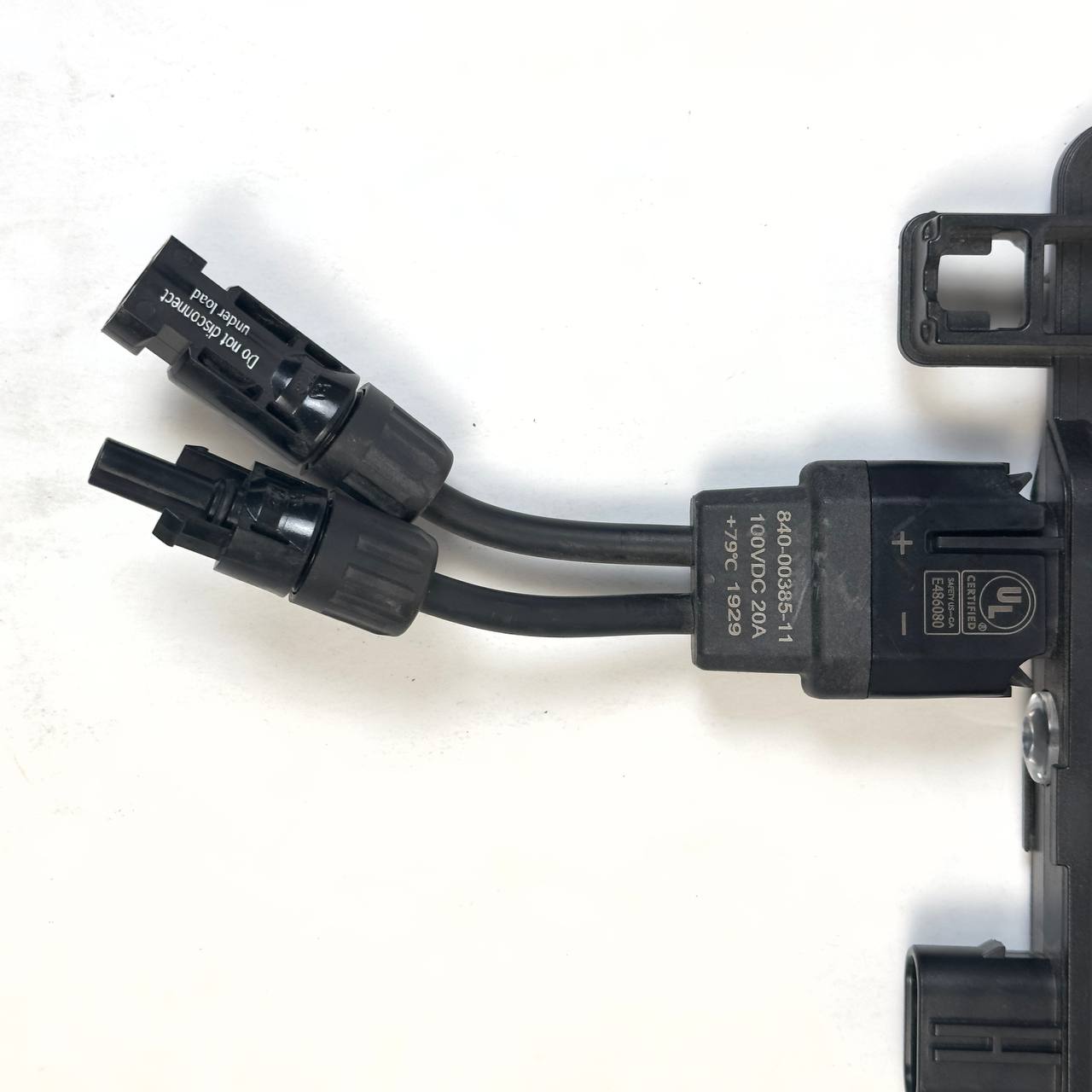

  • MC4 DC connectors for fast module connection
  • Supports up to 16 units per 20A branch (240V)

  🔹 Safety & compliance

  • Built-in rapid shutdown (NEC 2014 & 2017 compliant)
  • UL listed for safety
  • NEMA Type 6 outdoor-rated enclosure (weather resistant)

  🔹 Reliability & durability

  • Tested for over one million hours of operation
  • Passive cooling
  • AC Output Voltage: 208/240 VAC
  • Max DC Input Voltage: ~48V
  • Recommended module size: 235–350W+
  • Operating temperature: −40°C to +65°C
  • Dimensions: ~8.35" × 6.89" × 1.19"
