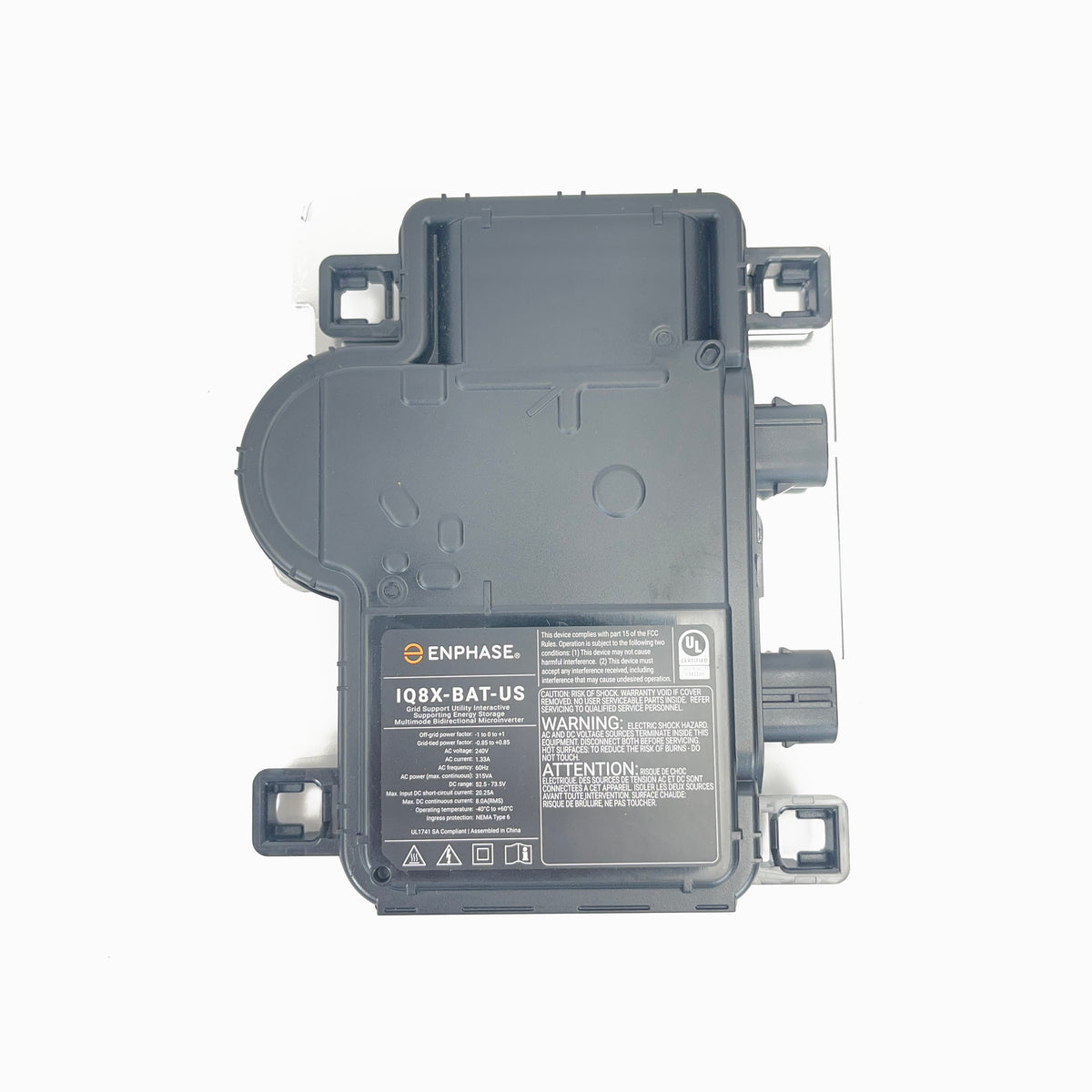

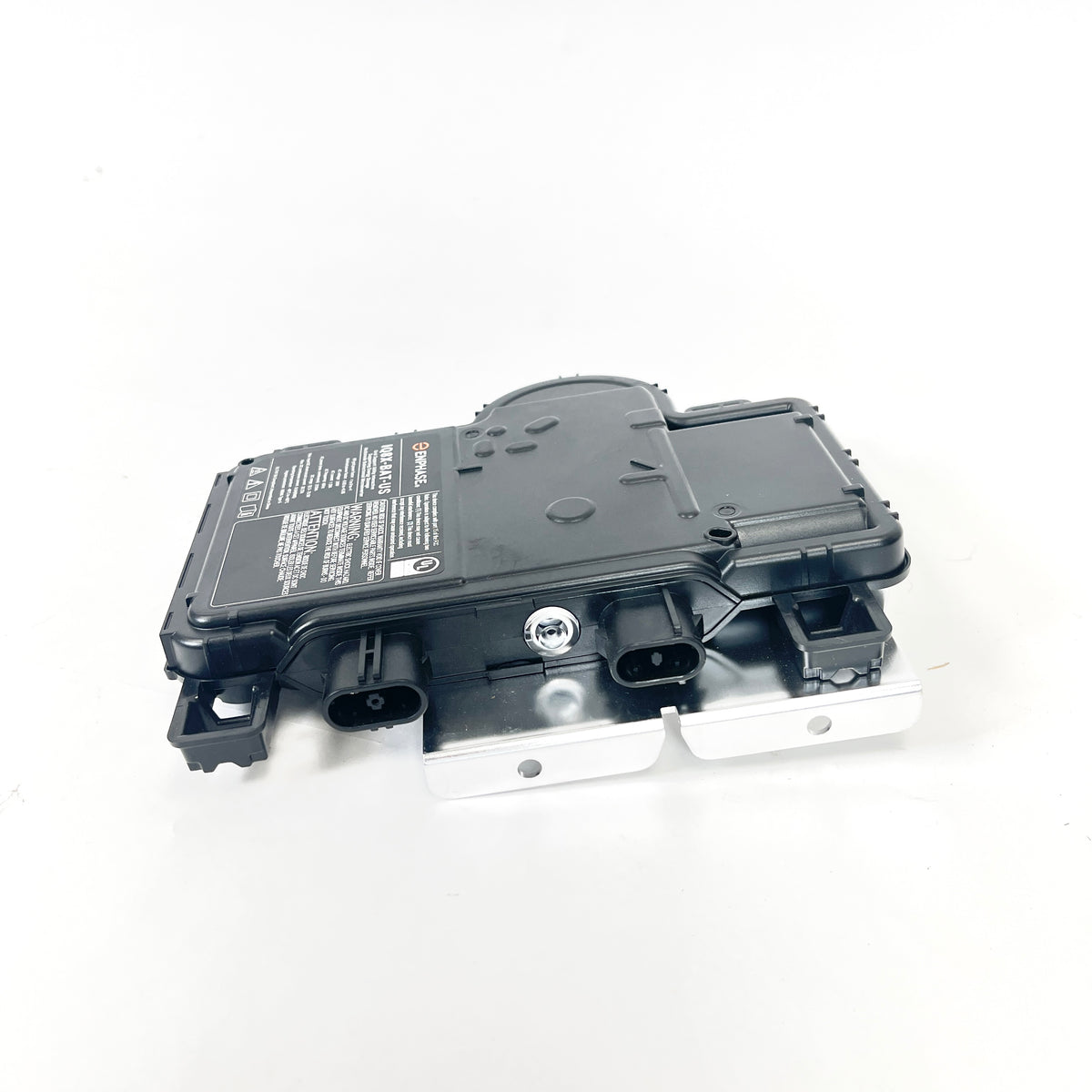

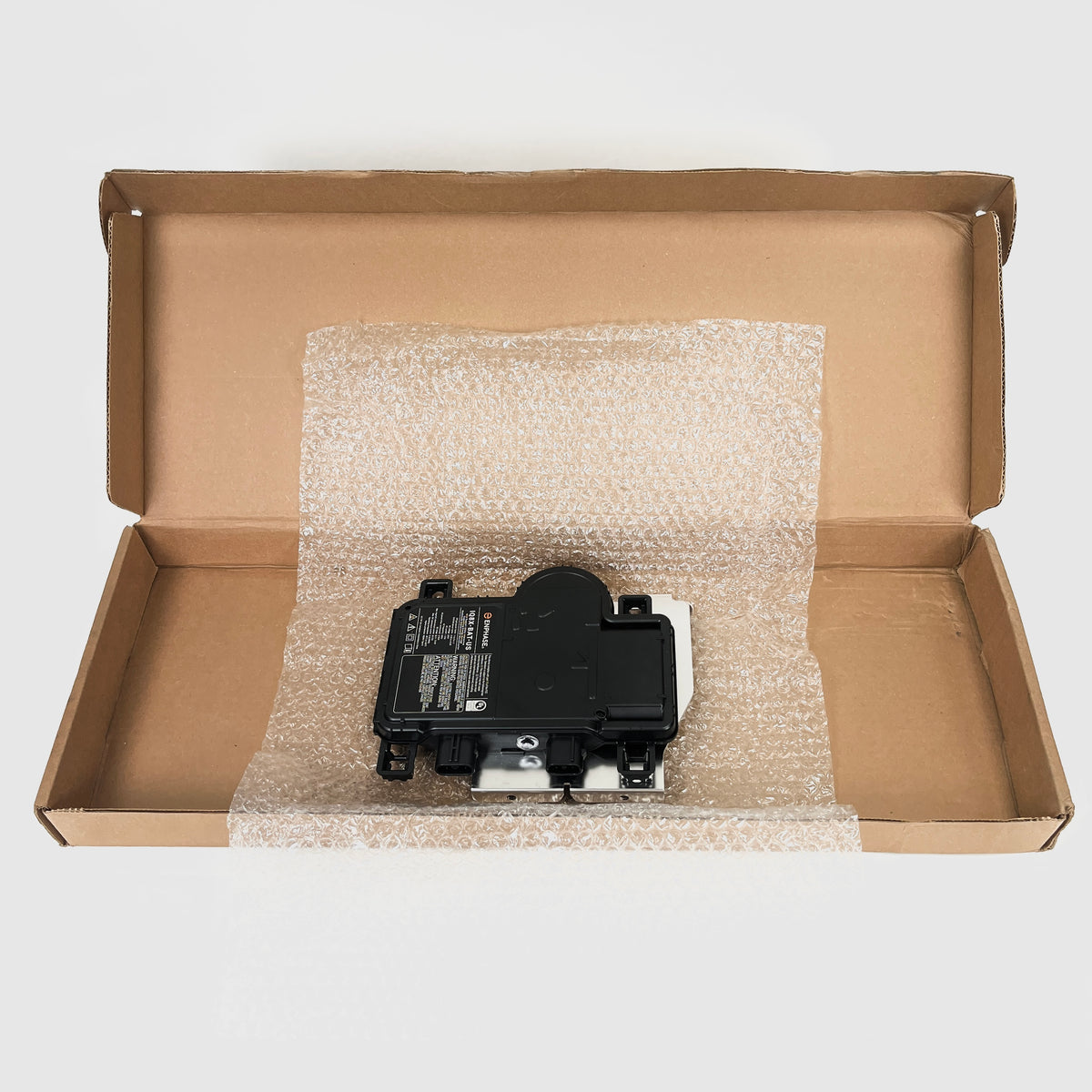

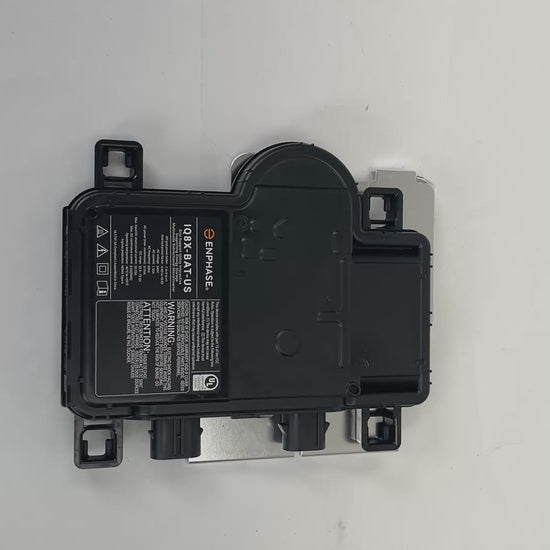

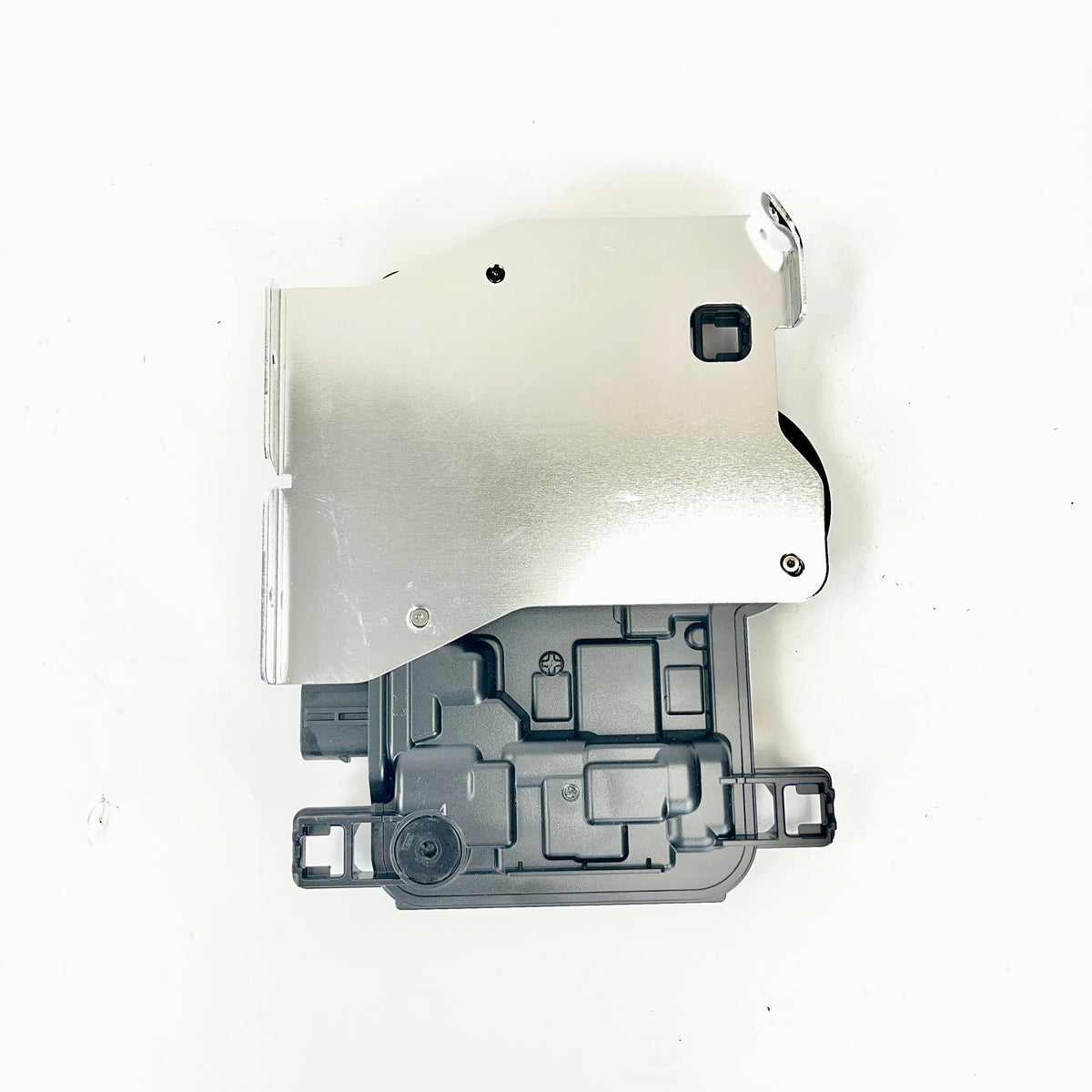

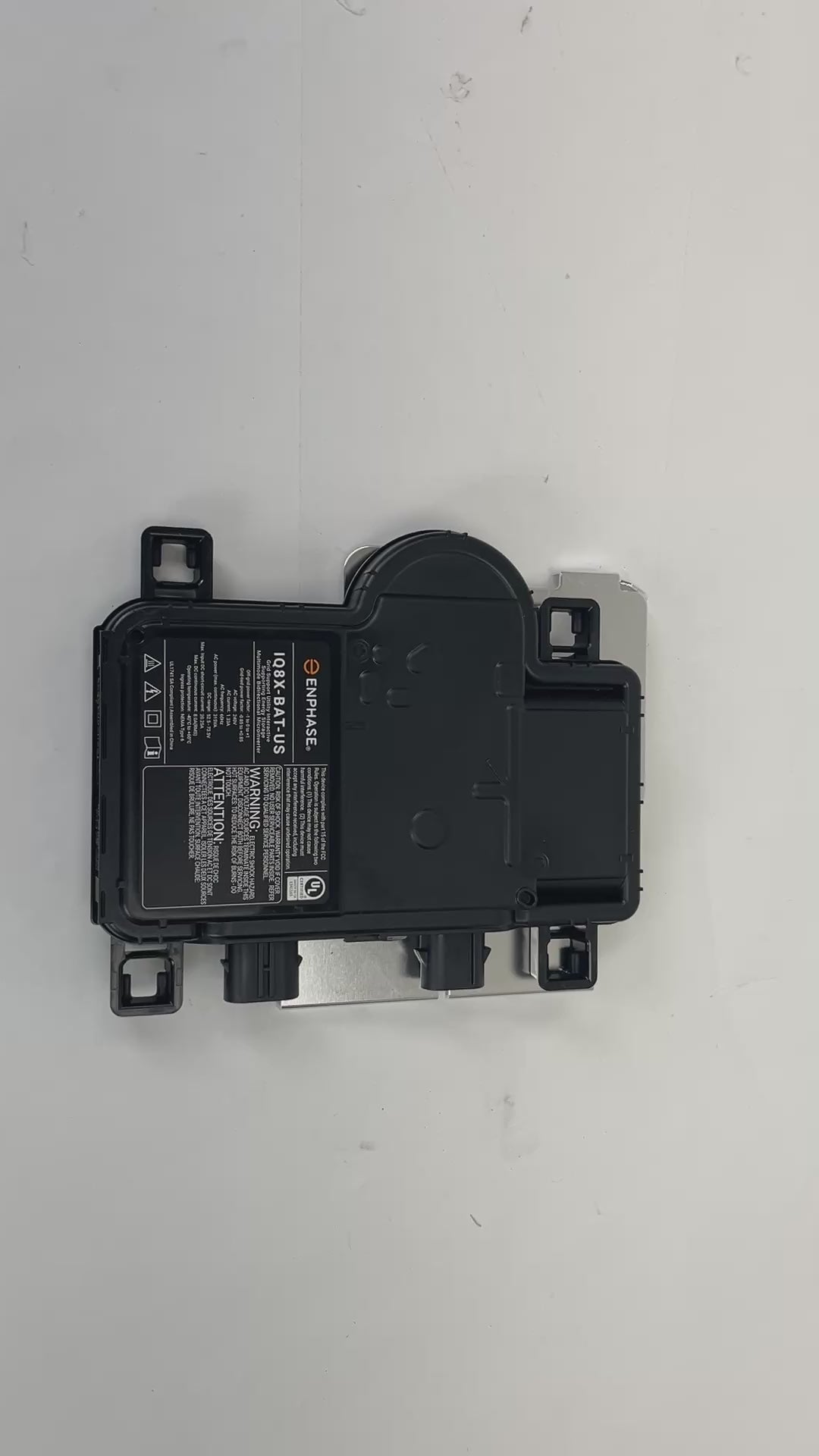

Enphase IQ8X-BAT-US 315VA 240V Battery Microinverter – IQ Battery Energy Storage

The Enphase IQ8X-BAT-US Microinverter is a high-performance battery microinverter designed specifically for use in compatible Enphase IQ Battery energy storage systems.

Unlike standard Enphase IQ microinverters used with solar panels, the IQ8X-BAT is designed for battery applications, converting DC energy from the battery into grid-compatible 240V AC power. Multiple IQ8X-BAT microinverters are integrated into compatible Enphase IQ Battery systems to provide distributed power conversion, monitoring, and energy-management capabilities.

Specifications:

• Manufacturer: Enphase Energy
• Model: IQ8X-BAT-US
• Product Type: Battery / Energy Storage Microinverter
• Maximum Continuous Output Power: 315 VA
• Peak Output Power: 320 VA
• Nominal AC Output Voltage: 240V
• AC Operating Voltage Range: 211–264V
• Maximum Continuous Output Current: 1.33A
• Peak Output Current: 2.05A for 10 seconds
• Nominal Frequency: 60 Hz
• DC Maximum Input Voltage: 79.5V
• DC Operating Range: 52.5–74.5V
• Maximum DC Short-Circuit Current: 20.25A
• CEC Weighted Efficiency: 96.5%
• Communication: Power Line Communication (PLC)
• Compatible with Enphase IQ Gateway
• Cooling: Natural convection – no fans
• Enclosure: NEMA Type 6 / Outdoor
• Approved for Wet Locations: Yes
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Dimensions: 212 × 175 × 30.2 mm
• Weight: Approximately 2.38 lb (1.08 kg)
• Region: United States
