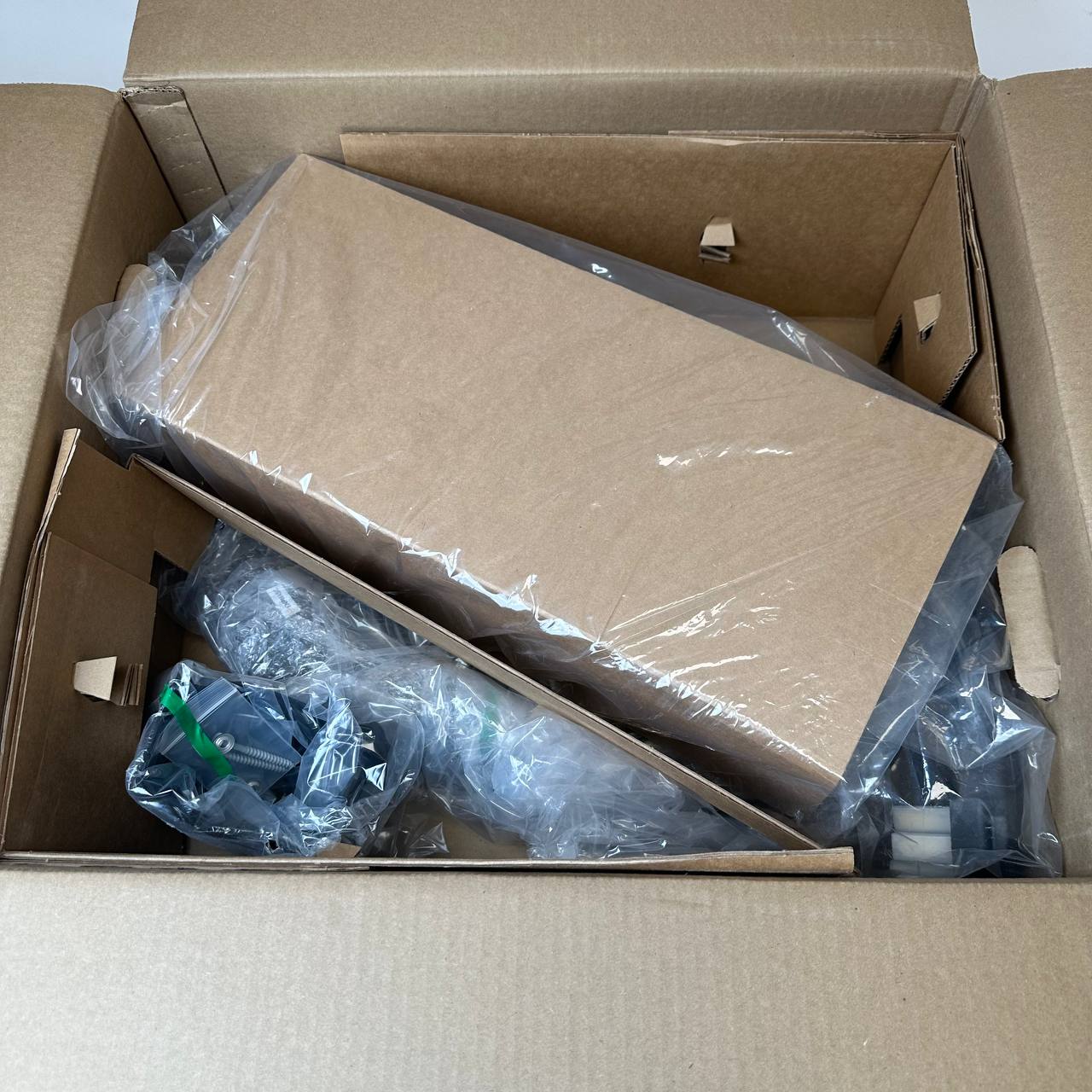

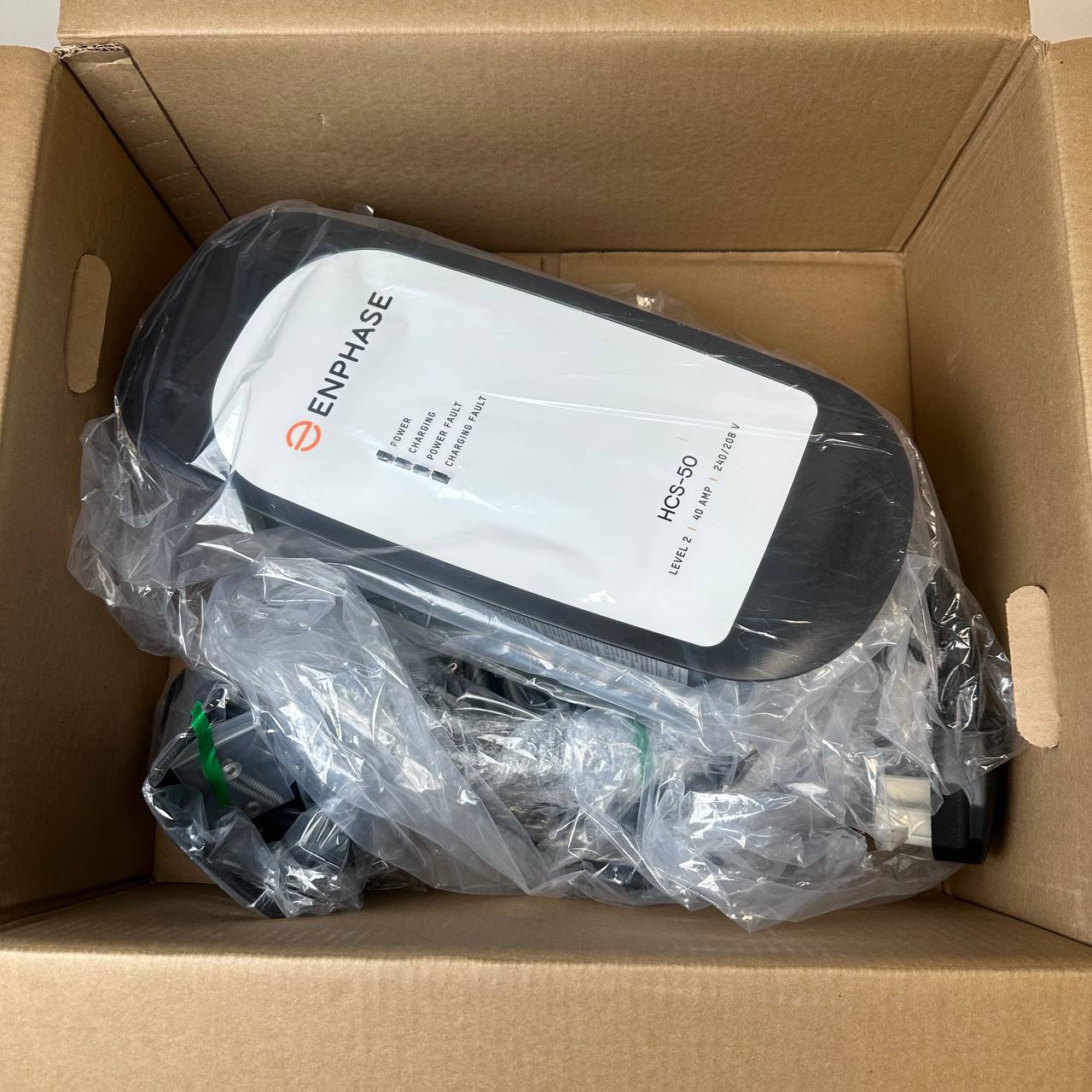

New in Box Enphase 50 Amp - HCS-50 Level 2 EV Charger

The Enphase HCS-50 is a reliable, rugged Level 2 EV charger (EVSE) designed for residential and light commercial use. It requires a dedicated 50 Amp circuit breaker and delivers up to 40 A continuous output (9.6 kW maximum power) at 208/240 VAC single-phase.

This provides fast charging—up to about 7 times faster than a standard Level 1 cord set—adding up to approximately 38 miles of range per hour, depending on the vehicle's efficiency and onboard charger capabilities.

Key Features

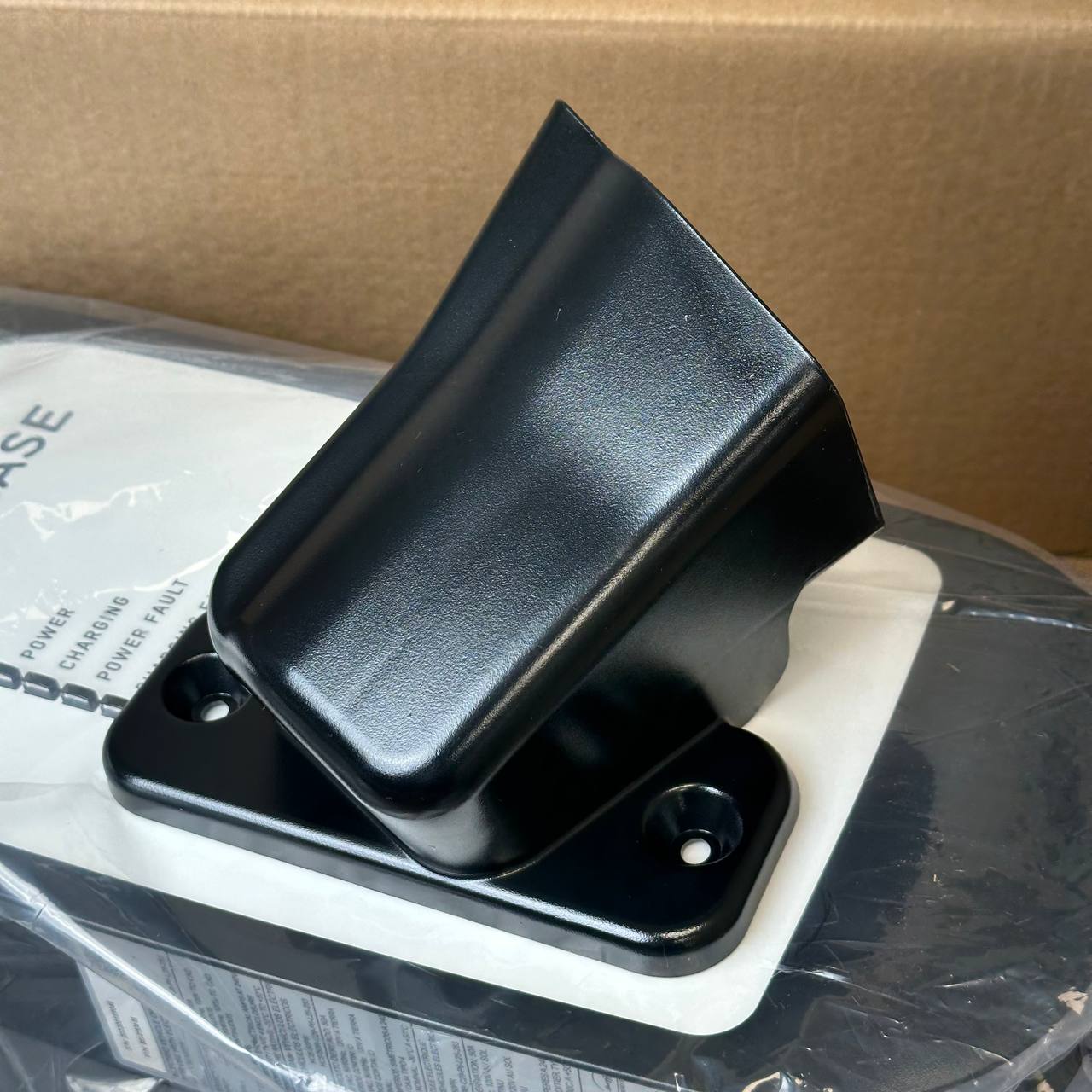

• Convenient — Comes with a generous 25-foot (7.6 m) charging cable, integrated cable wrap for tidy storage, wall-mounted J1772 connector holster, and clear LED status indicators (e.g., for power, charging, and faults).
• Durable — Features an impact- and crush-resistant SAE J1772 connector, Type 4X watertight and corrosion-resistant design, and a fully sealed NEMA 4 enclosure suitable for indoor or outdoor installations in extreme weather.
• Reliable — Compatible with all North American EVs using the J1772 standard. Includes built-in safety protections such as ground fault detection (CCID 20 mA with auto-reset), open ground protection, short-circuit safeguards, and automatic recovery after minor power interruptions.
• Certifications — ENERGY STAR® certified, ETL/cETLus listed, compliant with UL standards (e.g., UL 2594, UL 2251), NEC Article 625, SAE J1772, and more.
• Variants — Available in hardwired configurations (with a 3 ft service whip) or plug-in options (e.g., NEMA 6-50 or NEMA 14-50 receptacle versions for easier installation in some setups).

Technical Specifications (from official Enphase sources and datasheets)

• Input — 208/240 VAC (range typically 185–264 VAC), 50/60 Hz; requires dedicated 2-pole 50 A breaker; hardwired models include pre-wired service whip.
• Output — Up to 40 A continuous / 9.6 kW; pre-attached SAE J1772 connector with 25 ft rugged cable.
• Dimensions & Weight — Approximately 19.7" × 8.9" × 5.3" (500 × 226 × 135 mm); around 13.5–14 lbs (6.1–6.4 kg).
• Mounting — Wall or pedestal (pedestal sold separately).
• Environmental — Indoor/outdoor rated; operating temperature -22°F to 122°F (-30°C to 50°C).
