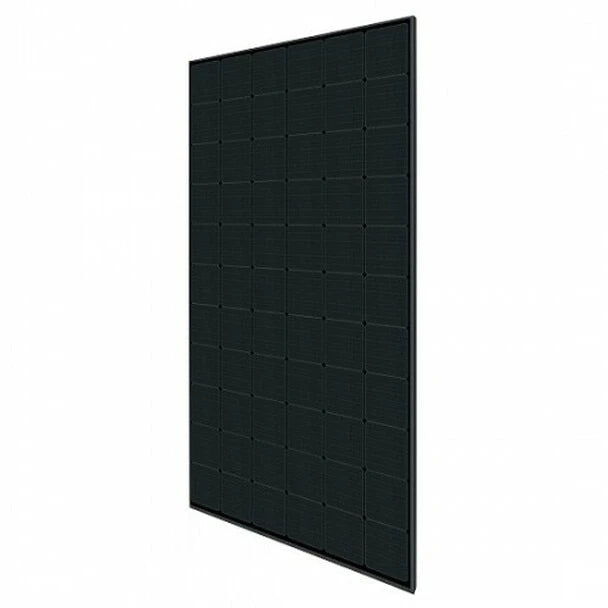

Canadian Solar HiDM CS1H-325MS 325W Monocrystalline Solar Panel

The Canadian Solar CS1H-325MS is a high-performance 325-watt monocrystalline photovoltaic solar panel from Canadian Solar's HiDM series. Featuring high-density monocrystalline cell technology, this module provides excellent efficiency and power output in a compact footprint, making it suitable for residential and commercial solar installations.

The CS1H-325MS features durable tempered-glass construction, an anodized aluminum frame, and an IP68-rated junction box for dependable long-term outdoor operation.

Specifications:

• Manufacturer: Canadian Solar
• Series: HiDM
• Model: CS1H-325MS
• Rated Maximum Power (Pmax): 325W
• Cell Type: Monocrystalline
• Module Efficiency: 19.3%
• Maximum Power Voltage (Vmp): 36.6V
• Maximum Power Current (Imp): 8.88A
• Open Circuit Voltage (Voc): 44.1V
• Short Circuit Current (Isc): 9.64A
• Power Tolerance: 0 to +10W
• Maximum System Voltage: 1000V DC UL / up to 1500V IEC
• Maximum Series Fuse Rating: 16A
• Dimensions: 1700 × 992 × 35 mm
• Approximate Dimensions: 66.9" × 39.1" × 1.38"
• Weight: 42.3 lbs. (19.2 kg)
• Front Cover: 3.2mm Tempered Glass
• Frame: Anodized Aluminum Alloy
• Junction Box: IP68 with 3 bypass diodes
• Connector: T4 / H4 UTX / MC4-EVO2 depending on production configuration
• Operating Temperature: -40°C to +85°C
• CEC PTC Rating: 303.2W
