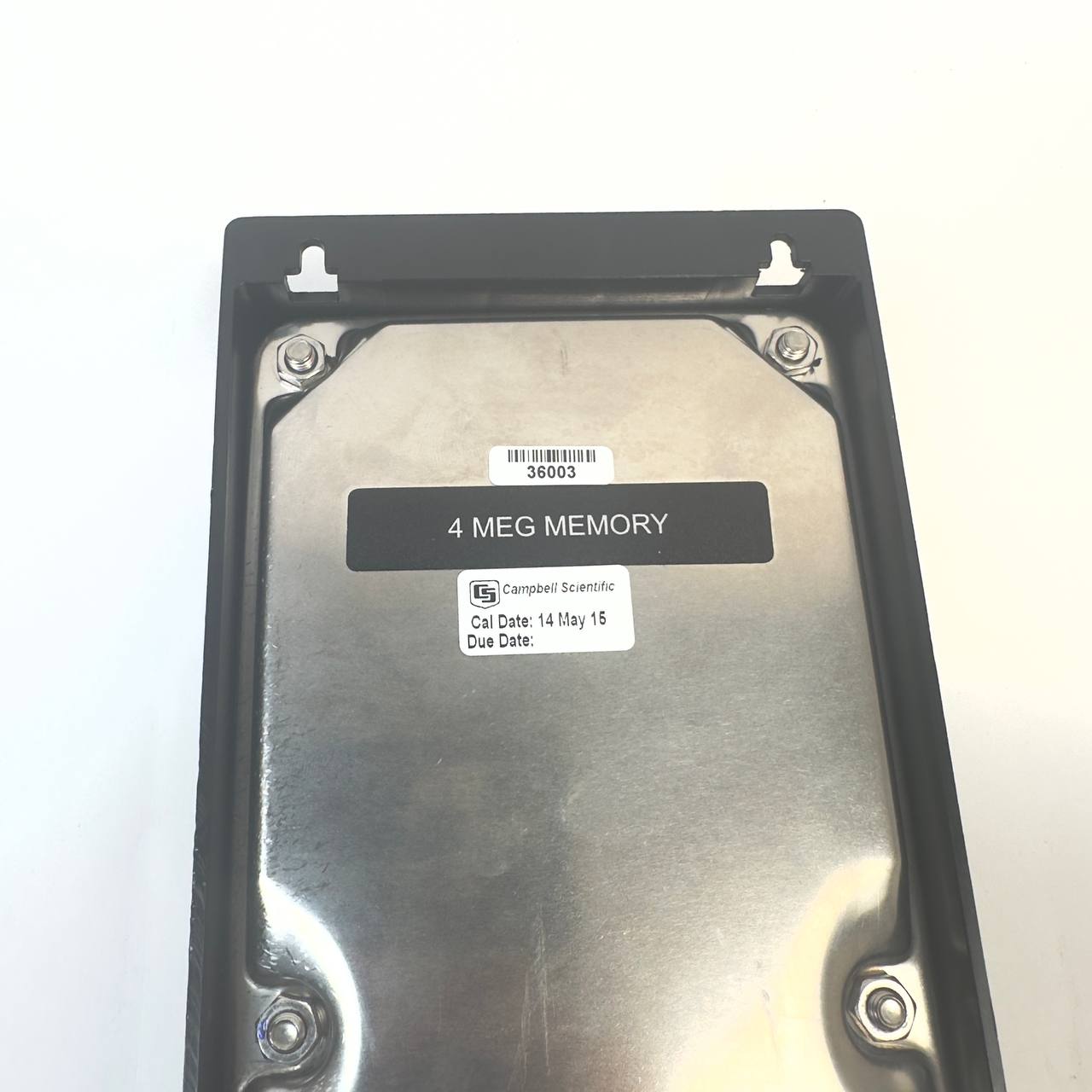

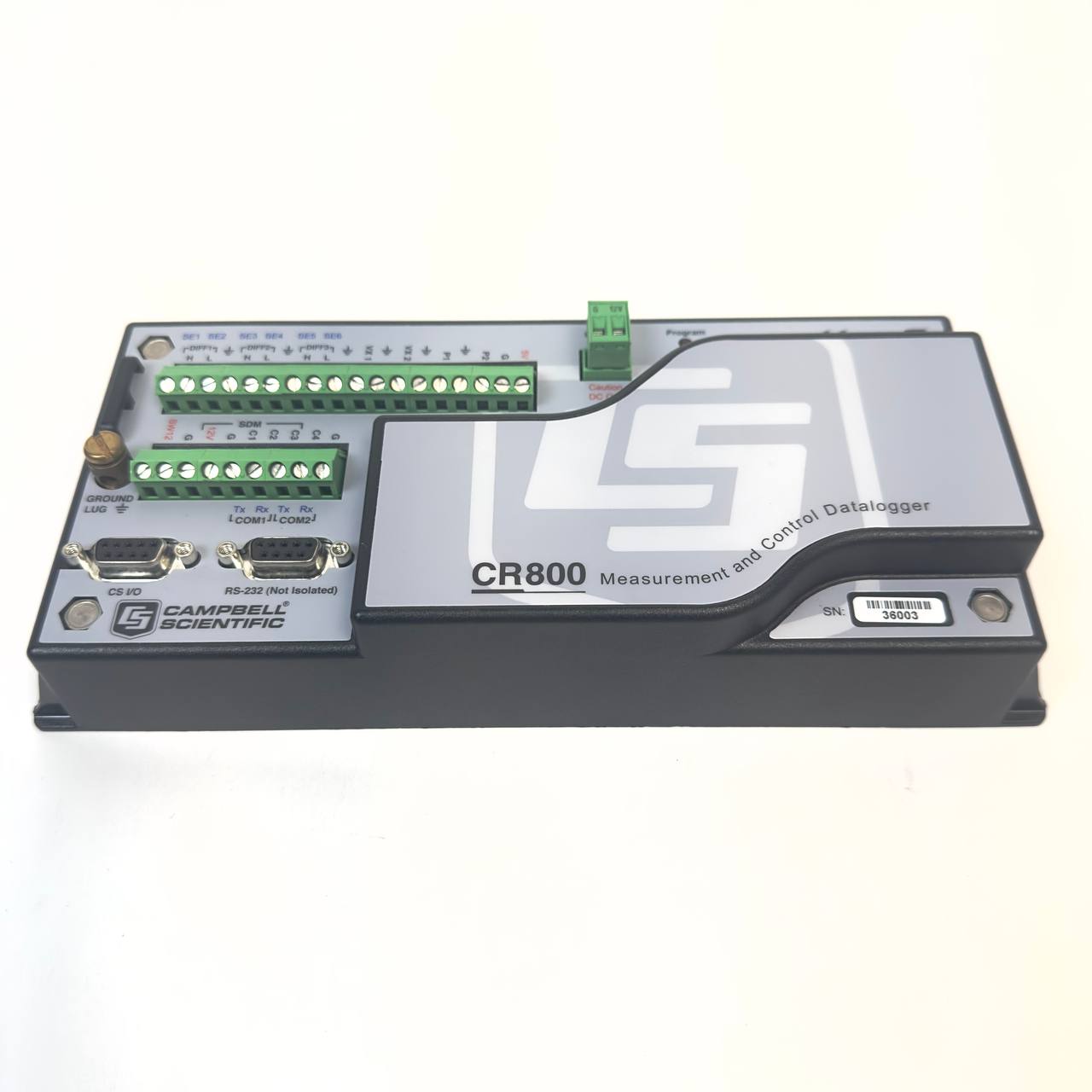

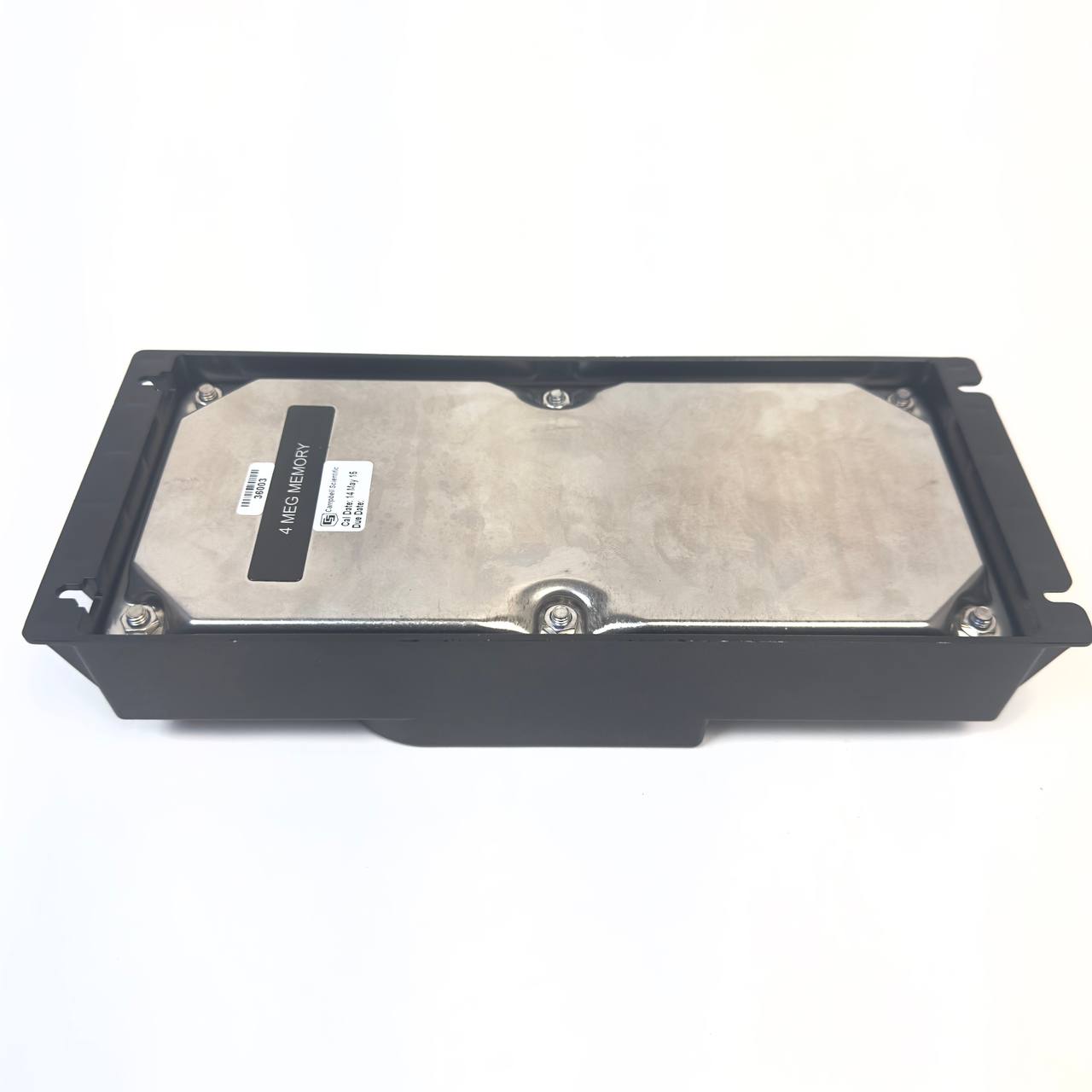

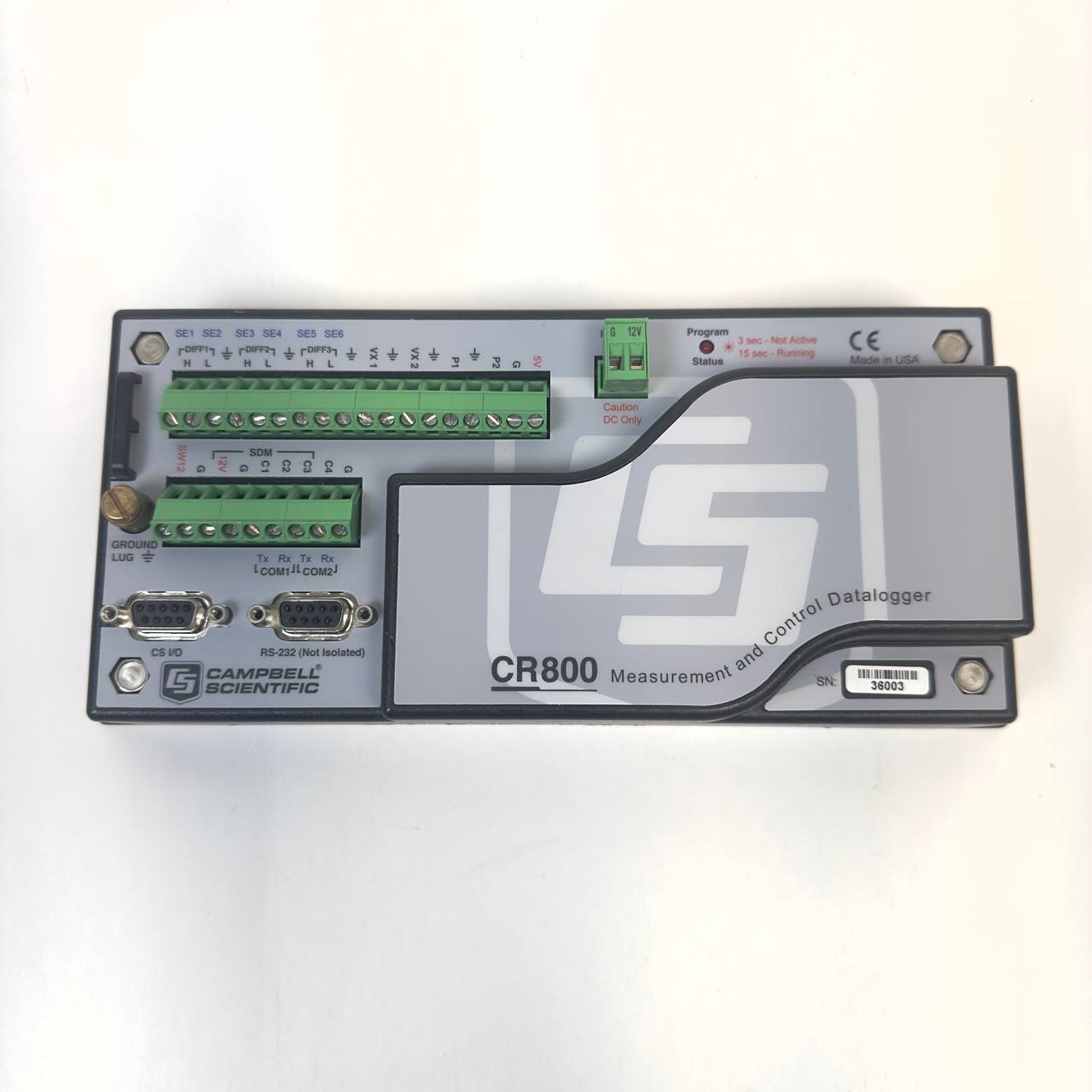

Campbell Scientific CR800 Data Logger

The CR800 is engineered for stand-alone operation or networked deployments, making it suitable for field-based monitoring systems. It collects data from connected sensors, processes the information internally, and transmits it through various communication interfaces.

Although now discontinued and replaced by newer models, it remains widely used in legacy systems due to its durability and versatility.

Key Features

• Research-Grade Performance
  Designed for accurate data collection in applications such as weather stations, agriculture, hydrology, and environmental monitoring.
• Flexible Sensor Compatibility
  Supports a wide range of sensors including thermocouples, SDI-12 devices, and 4–20 mA instruments, with expandable channel capacity.
• Advanced Communication Options
  Equipped with CS I/O and RS-232 ports and supports protocols such as PakBus, Modbus, SDI-12, and DNP3 for seamless integration with telemetry systems.
• Low Power Consumption
  Optimized for remote installations, it can operate for extended periods on battery power, often paired with solar panels.
• Onboard Processing & Programming
  Uses CRBasic programming language for measurement, data processing, and control logic, enabling real-time calculations and device automation.
• Rugged, Field-Ready Design
  Features protected inputs (GDT) and stable operation across a wide temperature range, ensuring reliability in harsh environments.

Typical Specifications

• Analog inputs: 6 single-ended or 3 differential
• Maximum scan rate: 100 Hz
• Operating temperature: -25°C to +50°C
• Power supply: 9.6–16 VDC
• Communication ports: CS I/O, RS-232
• Dimensions: 9.5 × 4.1 × 2 in.
• Weight: ~1.5 lb
