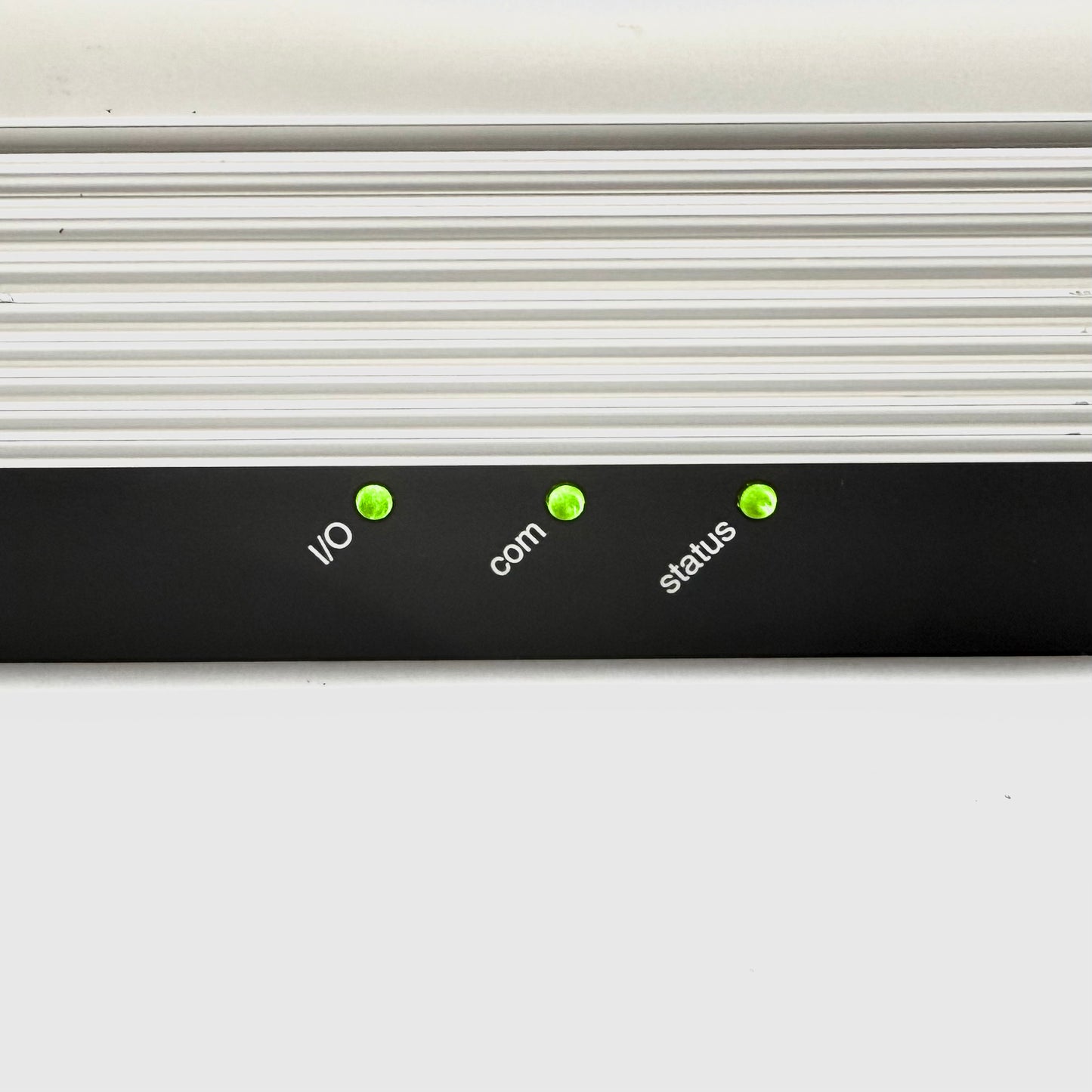

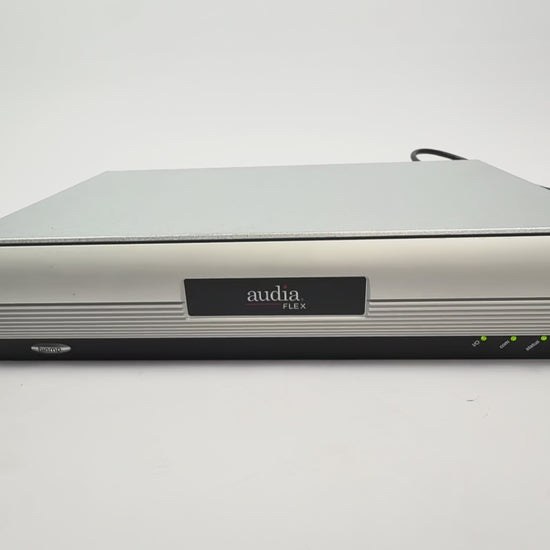

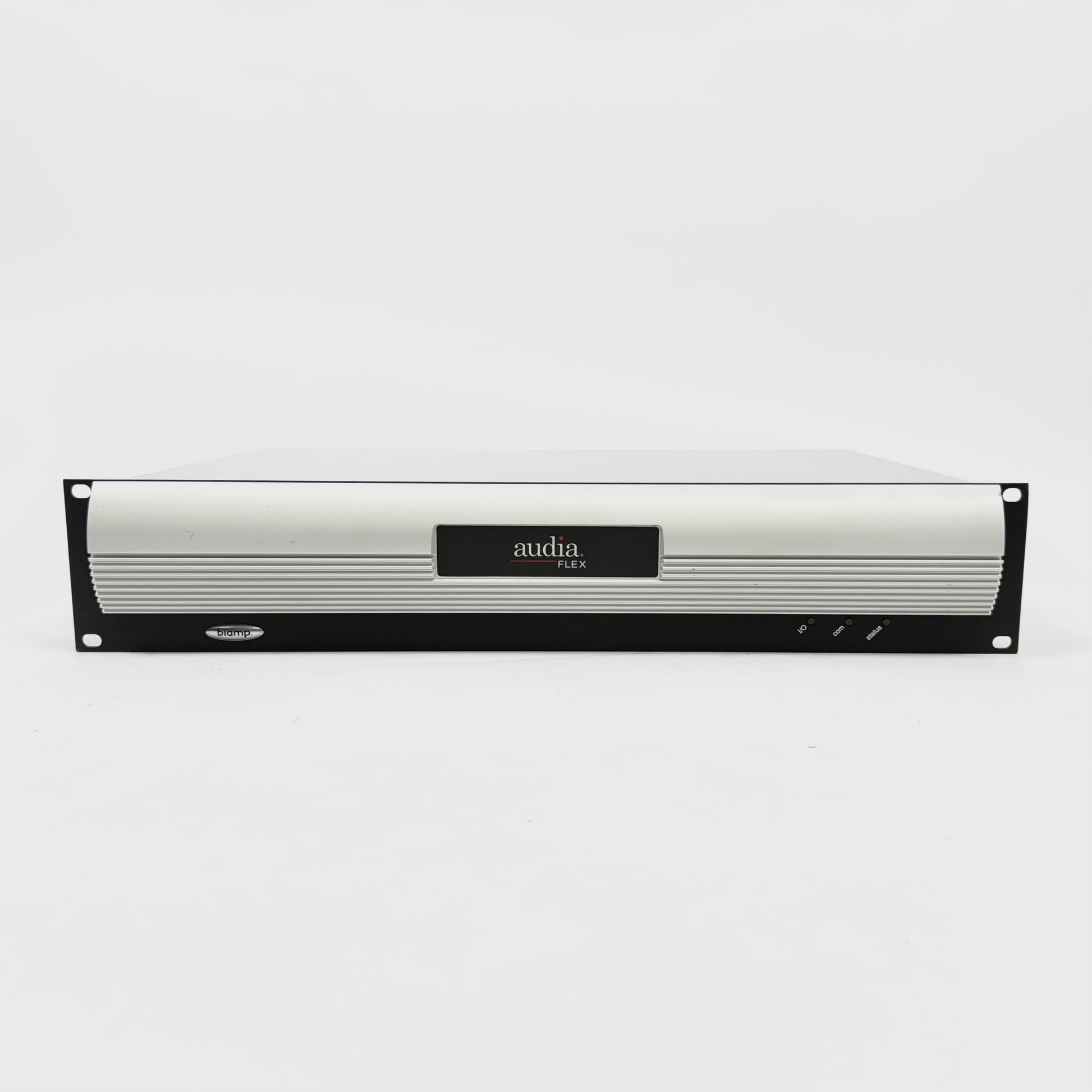

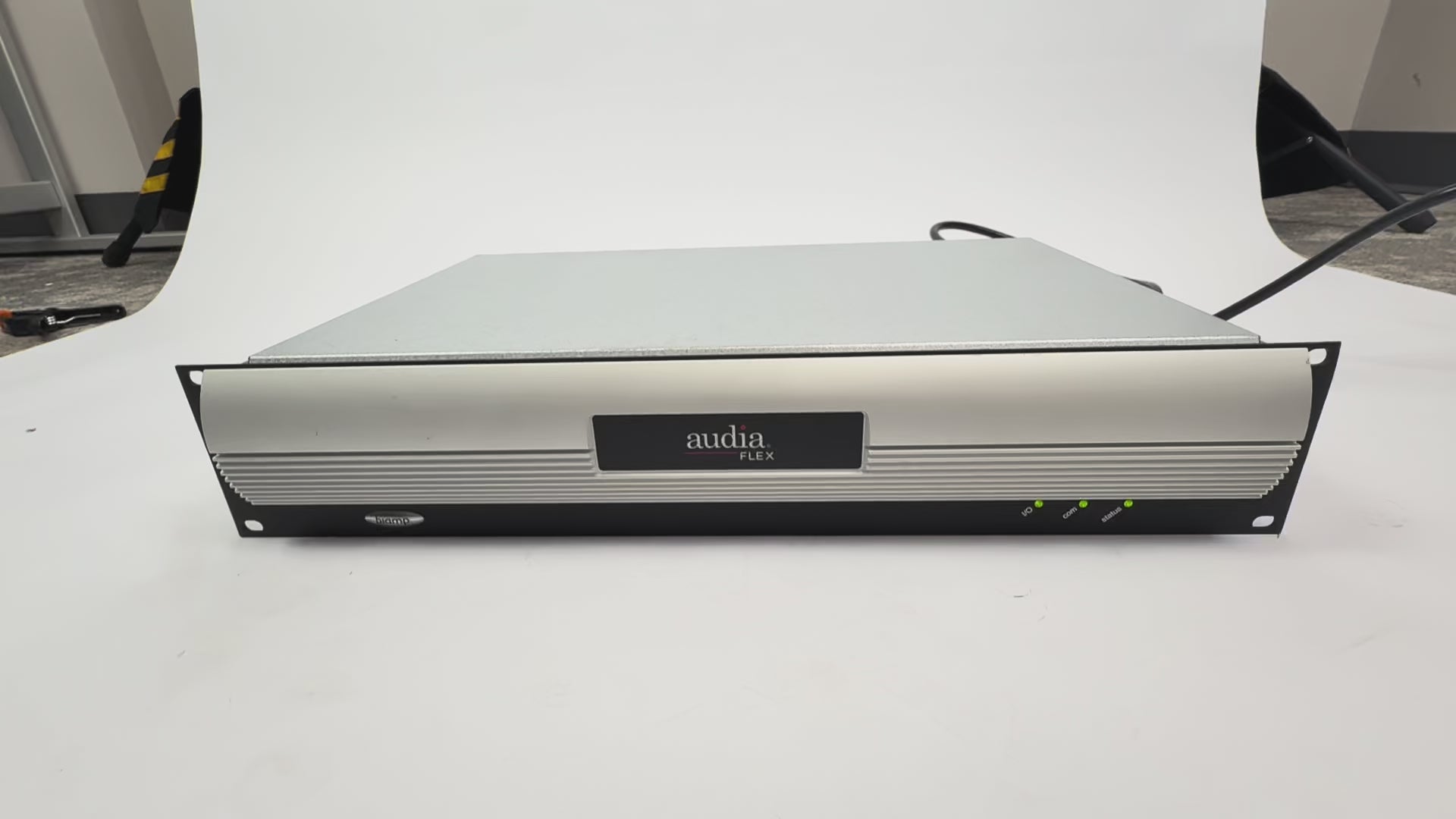

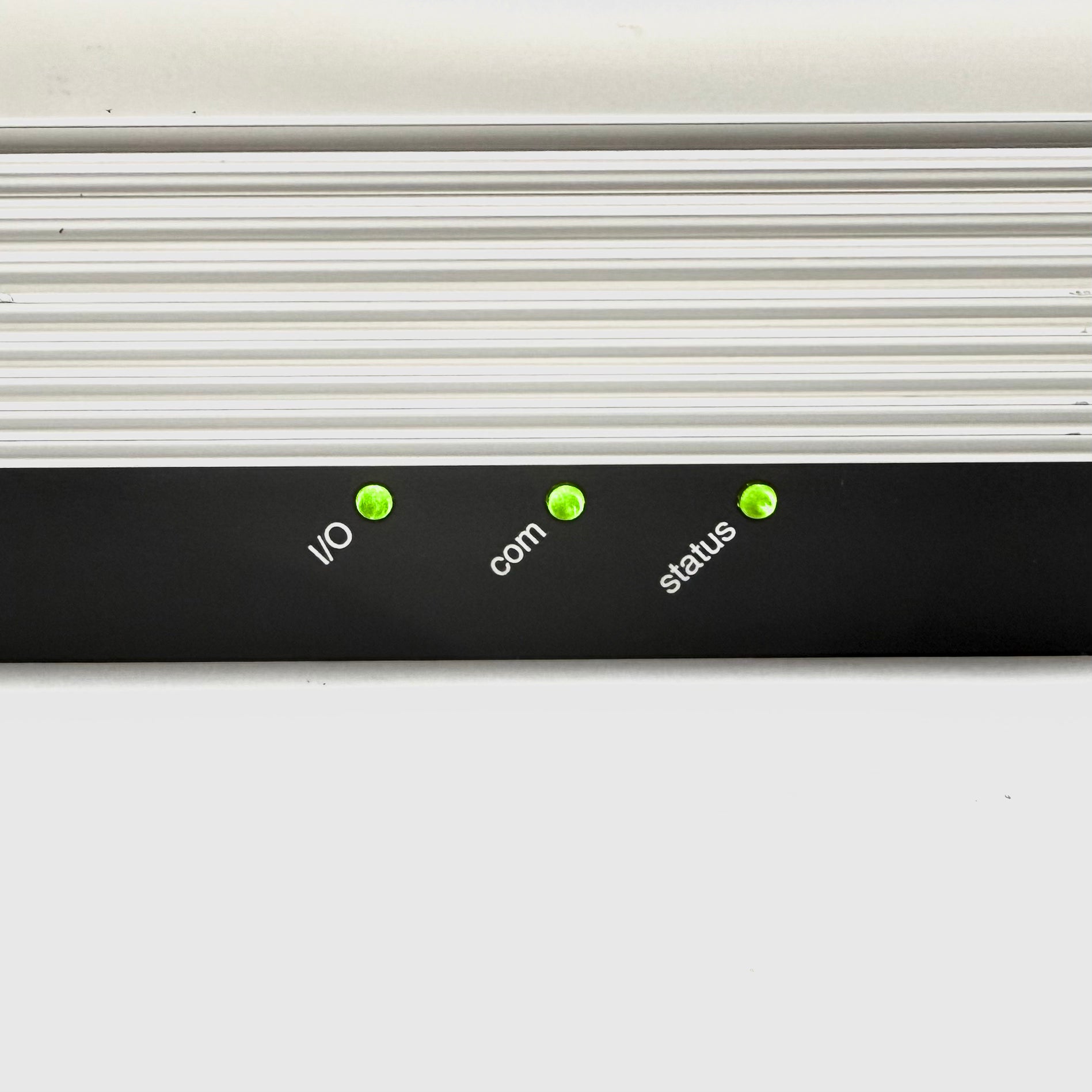

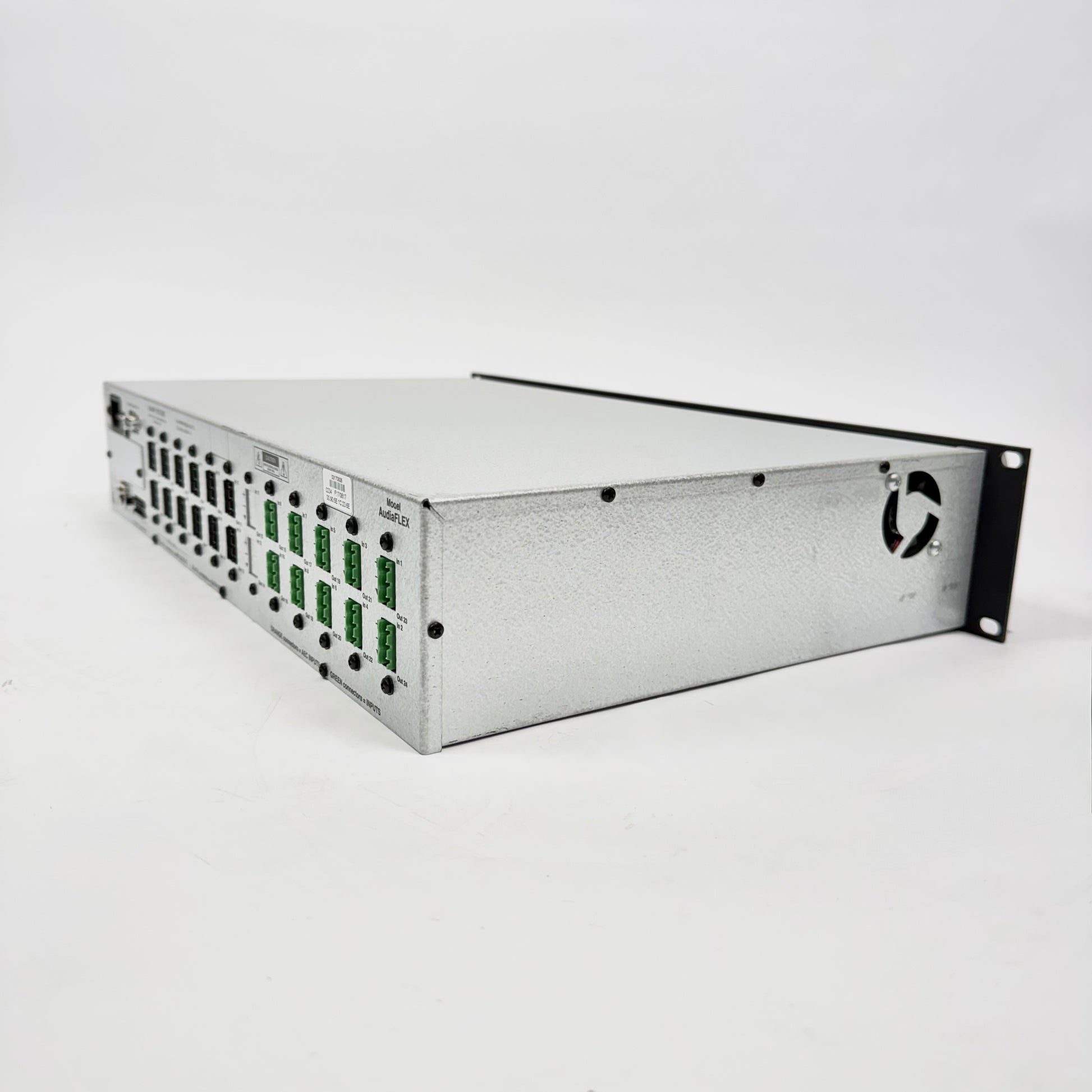

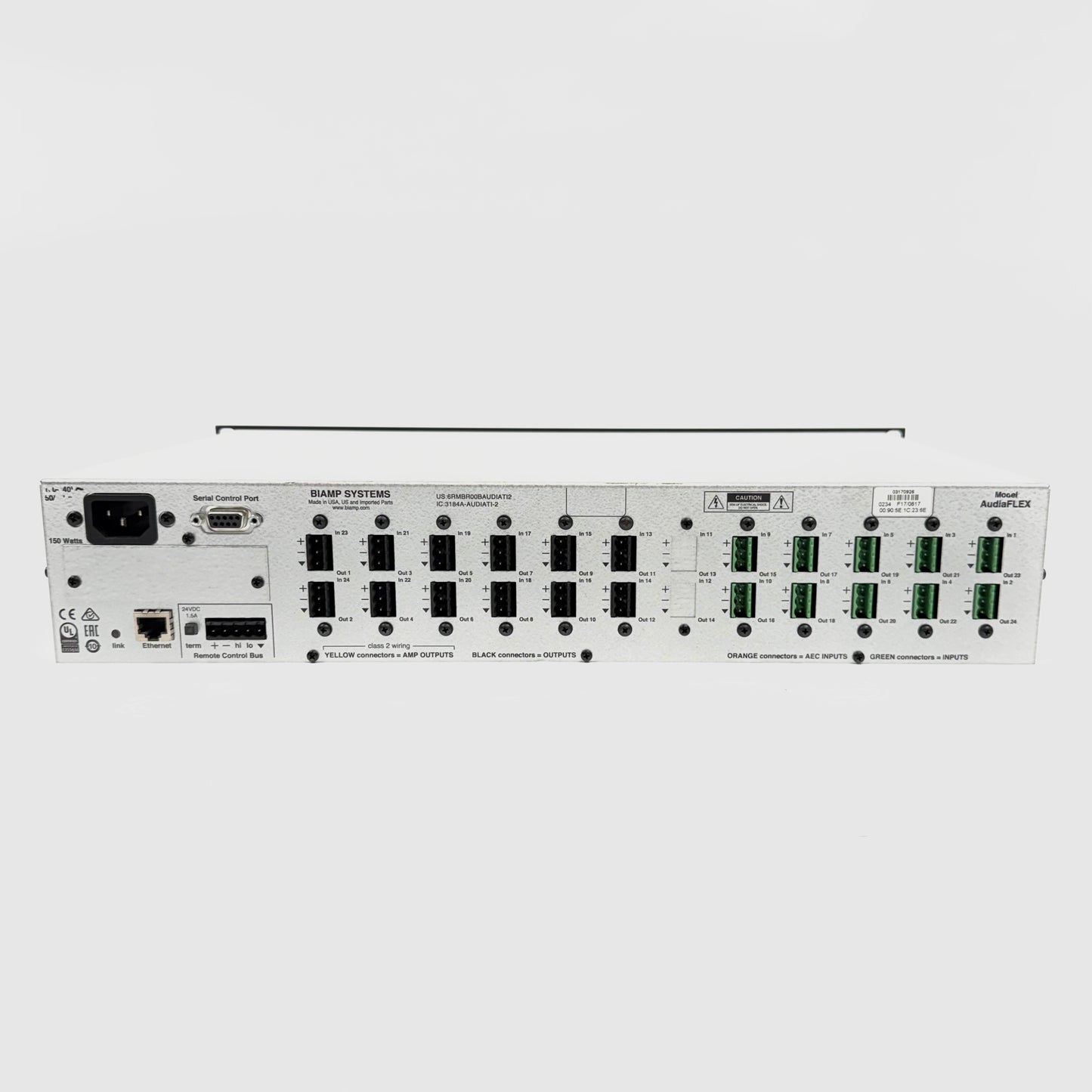

Biamp AudiaFLEX Digital Audio Processor – Professional DSP Audio System

The Biamp AudiaFLEX Digital Audio Processor is a professional-grade, modular digital signal processing (DSP) system designed for commercial audio installations, conference rooms, auditoriums, houses of worship, and large-scale sound systems.

The AudiaFLEX provides advanced audio mixing, routing, equalization, and signal management in a flexible, rack-mountable design. Its modular architecture supports customized input and output configurations, making it suitable for a wide variety of professional audio applications.

Key Features

• Modular Audio Configuration: Supports up to 24 analog input/output channels using interchangeable two-channel modules.

• Advanced Digital Signal Processing: Provides audio mixing, equalization, filtering, compression, limiting, delay, and routing.

• Professional Audio Quality: 24-bit A/D and D/A converters with a 48 kHz sampling rate.

• Network Connectivity: Ethernet connectivity for system configuration and remote control.

• CobraNet Support: Available on equipped models for distributing digital audio across Ethernet networks.

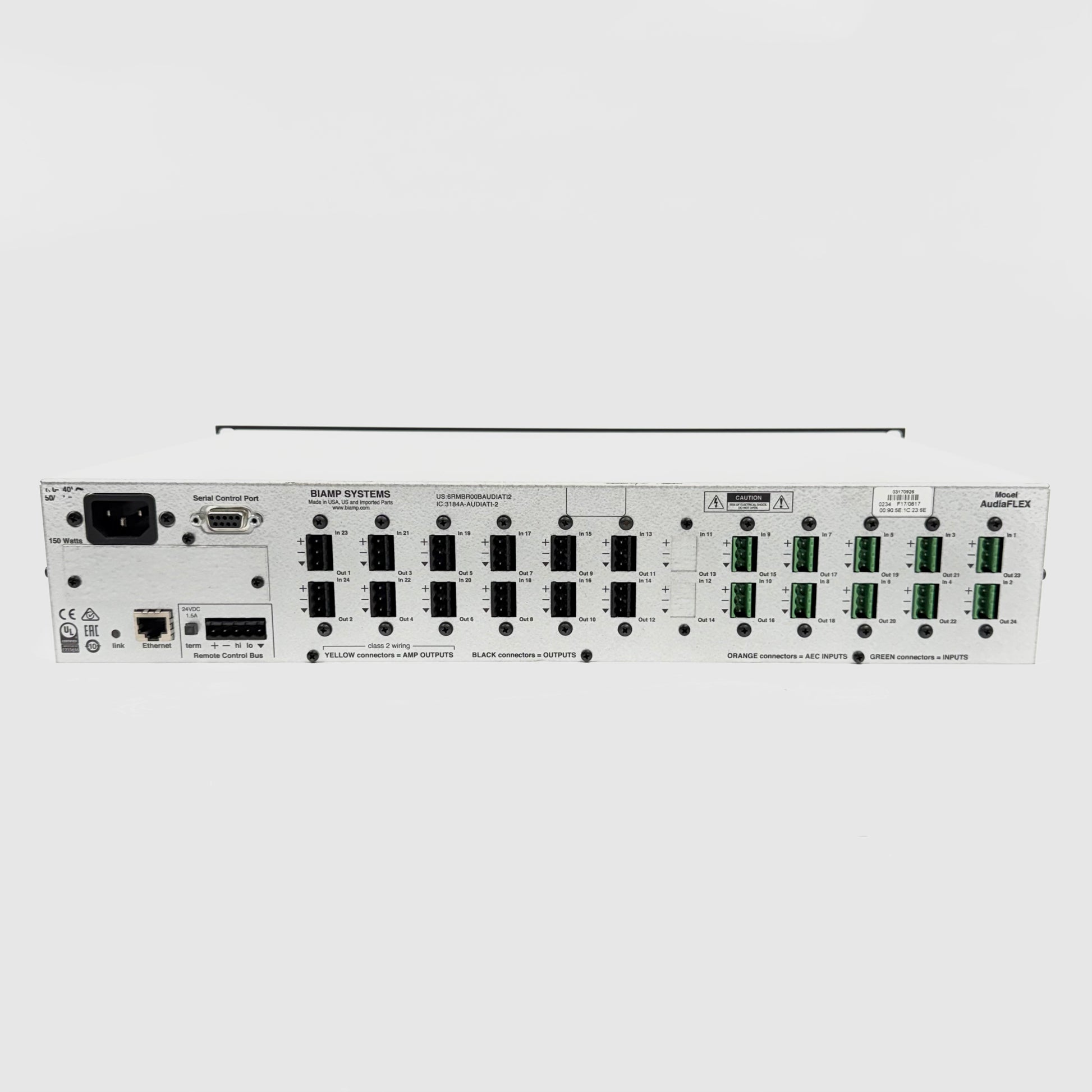

• Flexible Input/Output Options: Supports microphone/line inputs, line outputs, acoustic echo cancellation, telephone interfaces, and optional amplifier modules.

• Remote System Control: Supports RS-232 and Ethernet-based integration with professional control systems.

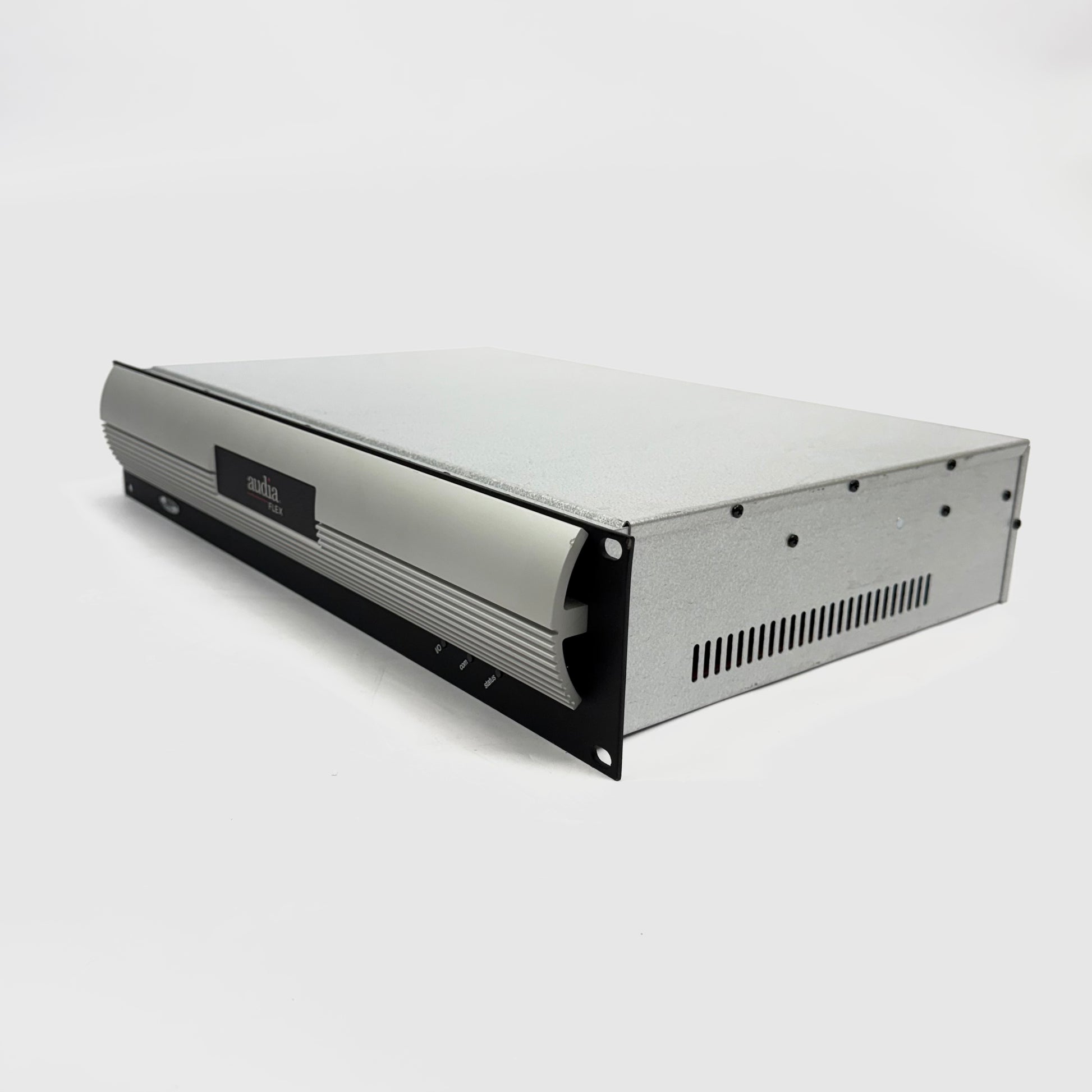

• Rack-Mountable Design: Standard 19-inch chassis suitable for professional equipment racks.

Technical Specifications

• Brand: Biamp Systems

• Model: AudiaFLEX

• Product Type: Modular Digital Audio Processor

• Maximum Analog I/O: 24 channels

• Audio Resolution: 24-bit

• Sampling Rate: 48 kHz

• Network Interface: Ethernet; optional CobraNet

• Power Requirements: 100–240V AC, 50/60 Hz

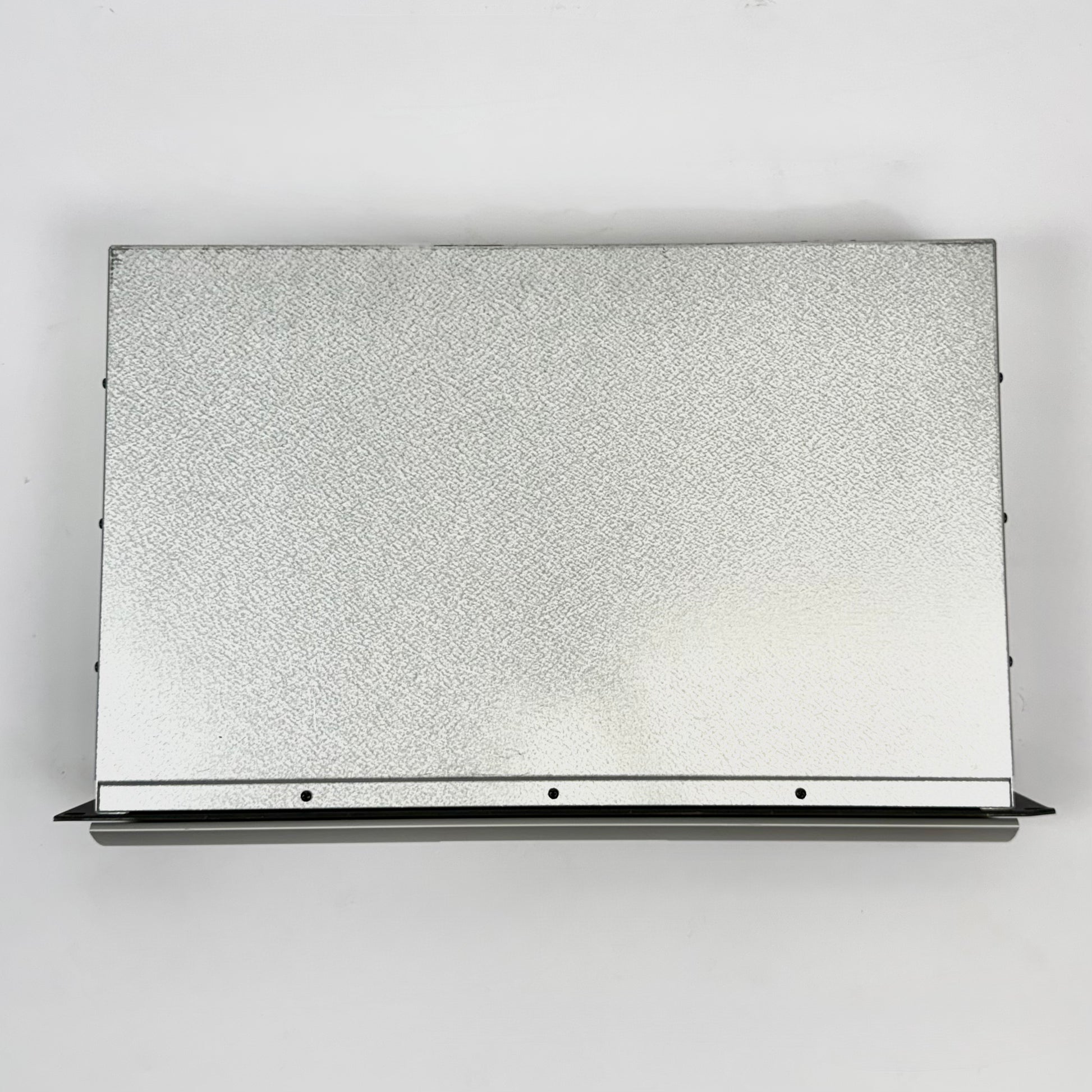

• Dimensions: 19" W × 3.5" H × 11.15" D

• Maximum Weight: Approximately 15.25 lbs., depending on installed modules
