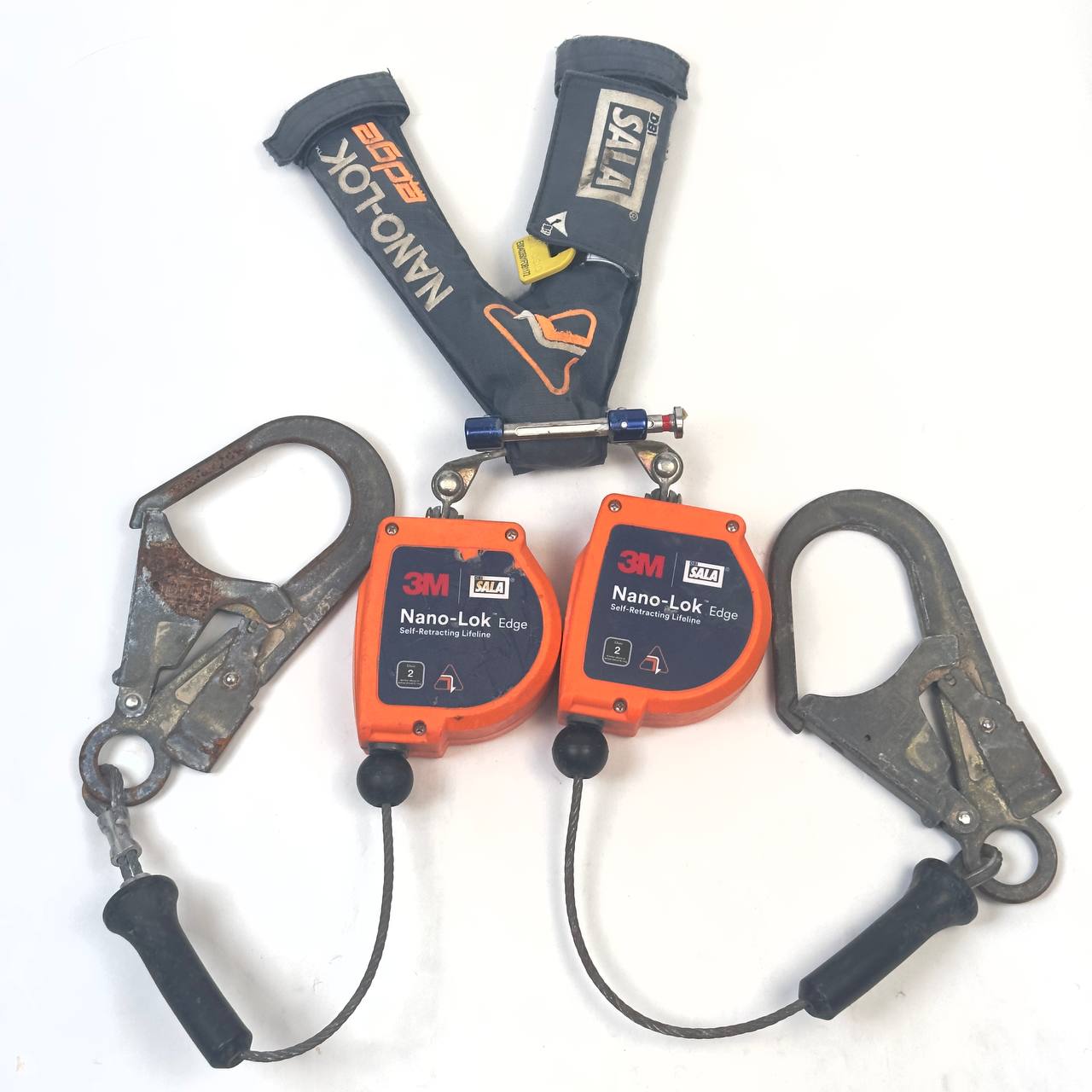

3M DBI-SALA Nano-Lok Edge 8' Self-Retracting Lifeline 3500227
3M DBI-SALA Nano-Lok Edge 8' Self-Retracting Lifeline 3500227
Couldn't load pickup availability
The 3M DBI-SALA Nano-Lok Edge Self-Retracting Lifeline is a compact, high-performance fall protection device engineered for leading-edge and foot-level tie-off applications, commonly encountered in construction, steel erection, and industrial maintenance.
Leading-edge rated (ANSI Class 2)
Designed specifically for environments where the lifeline may contact sharp or abrasive edges, providing enhanced durability and safety in demanding jobsite conditions.
Self-retracting lifeline (SRL) technology
Automatically extends and retracts, maintaining constant tension to reduce slack and minimize free-fall distance.
Compact and lightweight design
Ergonomically built for easy handling and direct connection to most harnesses, improving worker mobility and comfort.
Galvanized steel cable lifeline
Typically equipped with a 3/16 in. (5 mm) galvanized steel cable, offering superior resistance to abrasion, cutting, and harsh environments.
Quick-connect system
Allows fast and secure attachment directly to a full-body harness, simplifying setup and reducing connection errors.
Energy-absorbing system
Integrated internal energy absorber limits arrest forces during a fall, helping reduce impact on the user and anchorage.
Durable housing
Impact-resistant thermoplastic or composite housing protects internal components for long service life in rugged conditions.

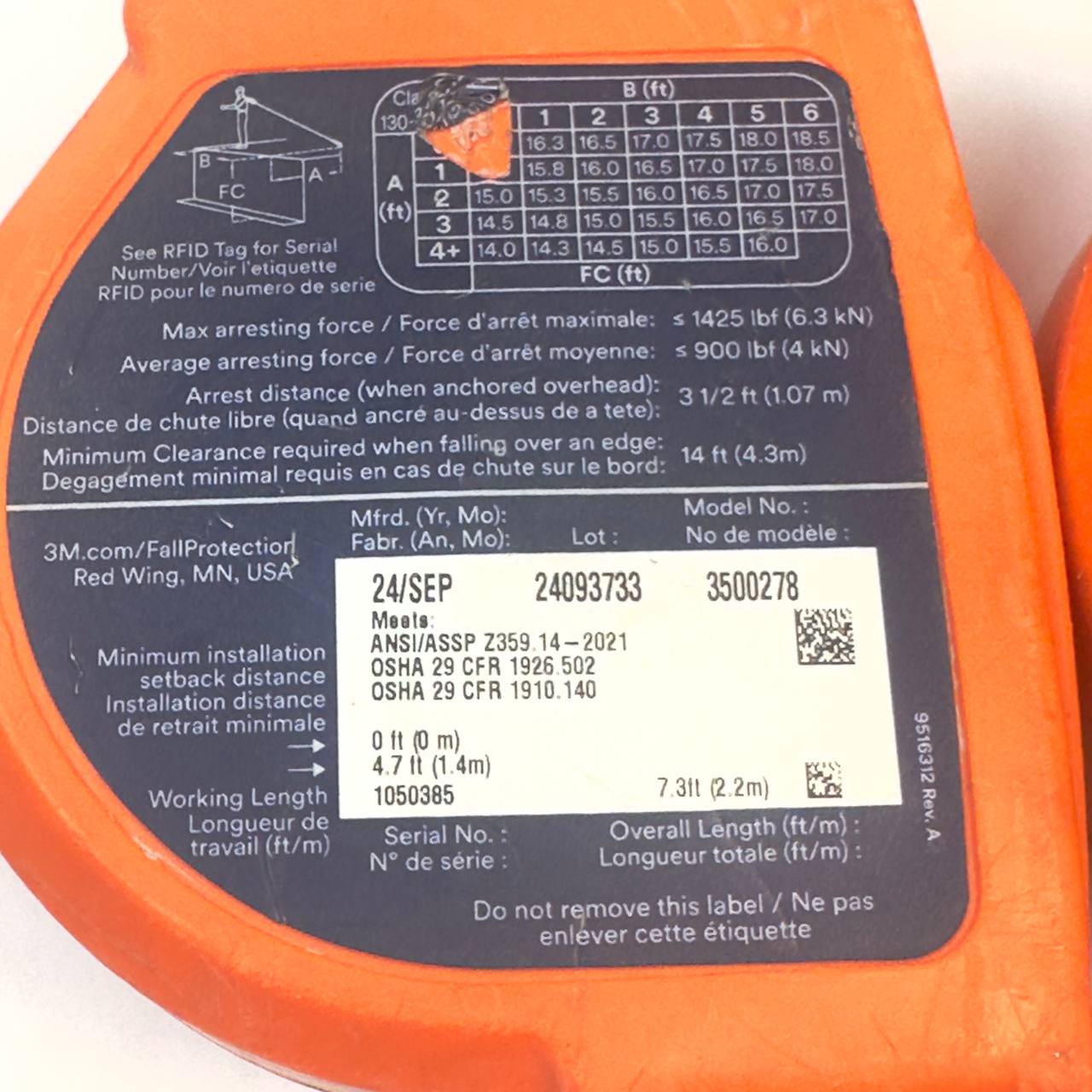

Typical Specifications
| Feature | Description |
|---|---|
| Lifeline length | ~6–8 ft (varies by model) |
| Material | Galvanized steel cable |
| Standards | Meets OSHA & ANSI Z359.14 Class 2 |
| Capacity | Up to 420 lb (including tools) |
| Connection | Rebar hooks, snap hooks, or carabiners (model-dependent) |
| Application |
Leading-edge / foot-level tie-off |
MANUFACTURED IN 2024
